6.2L MPI MIE EC - Serial 1A091600 Thru 1A092168 - Closed Cooling System (V-DRIVE)

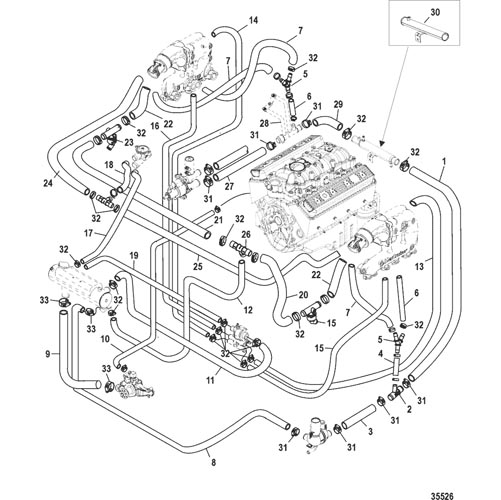

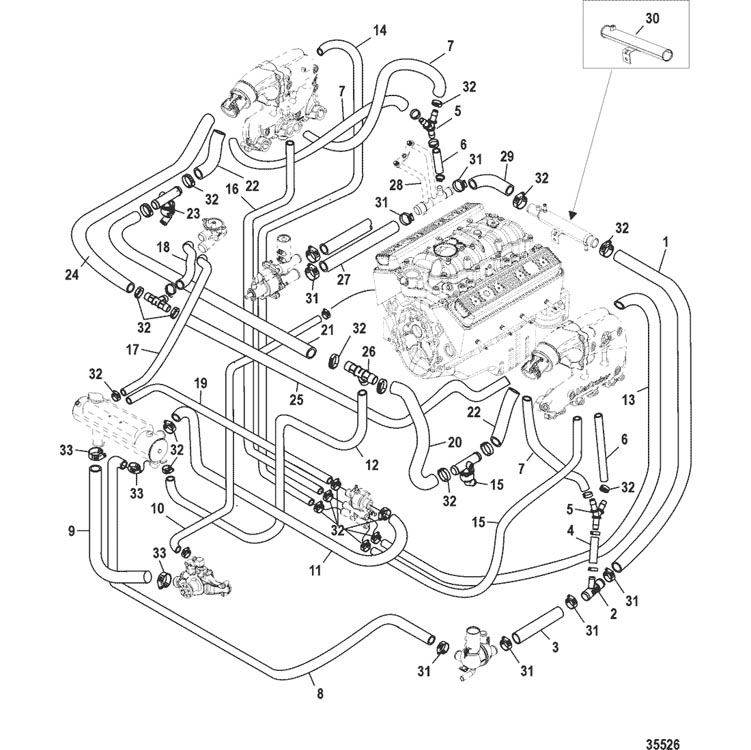

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator and Brackets
- Closed Cooling Sys., Sea Water Pump Hoses (1A091622 and Below)
- Closed Cooling Sys., Sea Water Pump Hoses (1A091623 and Above)
- Closed Cooling System (INLINE)
- Closed Cooling System (V-DRIVE)
- Closed Cooling System, Heat Exchanger
- Closed Cooling System, Poppet Valve
- Cool Fuel System -Bravo(SN 1A091622 and Below)
- Cool Fuel System -Bravo(SN 1A091623 and Above)
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Block, Flywheel Housing
- Cylinder Head Assembly
- Distributor and Ignition Components
- Electrical Components, Digital Throttle and Shift
- Electrical Components, Mechanical Throttle and Shift
- Exhaust Manifold and Elbow
- Front Cover and Circulating Pump
- Fuel Module Components -Bravo(SN 1A091622 and Below)
- Fuel Module Components -Bravo(SN 1A091623 and Above)
- Gasket Set Components (27- 75611A03), Cylinder Head
- Gasket Set Components, Engine Overhaul
- Intake Manifold and Fuel Rail
- Oil Pan and Oil Pump
- Pistons and Connecting Rods
- Remote Oil Filter
- Rocker Cover
- Sea Water Pump Assembly
- Standard Cooling System -INLINE
- Standard Cooling System, V-DRIVE
- Starter Motor
- Thermostat and Housing, Closed Cooling
- Thermostat and Housing, Standard Cooling
- Throttle Body, Digital Throttle and Shift
- Throttle Body, Mechanical
- Transmission and Engine Mounting(BORG-WARNER 5000)
- Transmission and Engine Mounting(BORG-WARNER 71C and 72C)
- Transmission and Engine Mounting(HURTH 630)
- Transmission and Related Parts(BORG-WARNER 5000)
- Transmission and Related Parts(BORG-WARNER 71C and 72C)
- Transmission and Related Parts(Hurth 630 800)
- Transmission(WALTER V-DRIVE)
- Water Distribution Housing
- Water Drain, Air Manifold and Pump
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-865255 | HOSE, Cooler to Fitting | 1 | ||||||
| 2 | 22-862993 | FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb | 2 | ||||||
| 3 | 32-866331 | HOSE, Fitting to Distribution Housing | 1 | ||||||
| 4 | 32-8M0062634 | HOSE, (44.00 Inches Bulk), Drain Fitting to Y-Fitting | 1 | 4285069 | |||||
| 5 | 22-8M2014746 | Y-FITTING | 3 | ||||||
| 6 | 32-8M0062634 | HOSE, (44.00 Inches Bulk), Y-Fitting to Port Manifold | 1 | 4285069 | |||||
| 6 | 32-8M0062634 | HOSE, (44.00 Inches Bulk), Orifice Meter to Y-Fitting | 1 | 4285069 | |||||
| 7 | 32-8M0062634 | HOSE, (44.00 Inches Bulk) | 1 | 4285069 | |||||
| 8 | 32-864431 | HOSE, Distribution Housing to Heat Exchanger | 1 | ||||||
| 9 | 32-864886 | HOSE, Circulating Pump to Heat Exchanger | 1 | ||||||
| 10 | 32-864551 | HOSE, Intake Bypass to Circulating Pump | 1 | ||||||
| 11 | 32-864507 | HOSE, Thermostat Housing to Heat Exchanger | 1 | ||||||
| 12 | 32-8M2012198 | HOSE, Heat Exchanger toT-Fitting | 1 | ||||||
| 13 | 32-8M2003231 | HOSE, Thermostat Housing to Port Manifold | 1 | ||||||
| 14 | 32-8M2003232 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 15 | 32-864508 | HOSE, Thermostat Housing to Port Manifold | 1 | ||||||
| 16 | 32-864509 | HOSE, Thermostat Housing to Starboard Manifold | 1 | ||||||
| 17 | 32-8M2013951 | HOSE, Heat Exchanger to Poppet | 1 | ||||||
| 18 | 32-8M2013952 | HOSE, T-Fitting to Poppet | 1 | ||||||
| 19 | 32-864506 | HOSE, Heat Exchanger to Thermostat Housing | 1 | ||||||
| 20 | 32-8M2013918 | HOSE, T-Fitting to Fitting Assembly | 1 | ||||||
| 21 | 32-8M2013920 | HOSE, T-Fitting to Fitting Assembly | 1 | ||||||
| 22 | 32-8M2013919 | HOSE, Fitting Assembly to Elbow | 2 | ||||||
| 23 | 22-8M2012295 | FITTING ASSEMBLY | 2 | ||||||
| 24 | 32-8M2012197 | HOSE, T-Fitting to Starboard Elbow | 1 | ||||||
| 25 | 32-8M2012196 | HOSE, T-Fitting to Port Elbow | 1 | ||||||
| 26 | 22-863478 | FITTING, Tee | 2 | ||||||
| 27 | 32-865234 | HOSE, Sea Pump to Orifice Meter | 1 | ||||||
| 29 | 32-8M2021655 | HOSE, Orifice to Cooler | 1 | 865235 | |||||
| 30 | 863841T | TUBE, Water | 1 | ||||||
| 31 | 54-815504228 | CLAMP, Worm Gear | AR | 54-32781 54-853232 54-853432 |
|||||
| 32 | 54-815504216 | CLAMP, Worm Gear (1.56 Diameter) | AR | ||||||
| 33 | 54-815504232 | CLAMP, Worm Gear | AR | 8M2001490 | |||||
| - | 32-879172A17 | HOSE ASSEMBLY, Supplemental | 1 |
