454 Mag MPI Bravo (Gen 6) GM V-8 - Serial 0L085400 Thru 0M024999 - Closed Cooling System

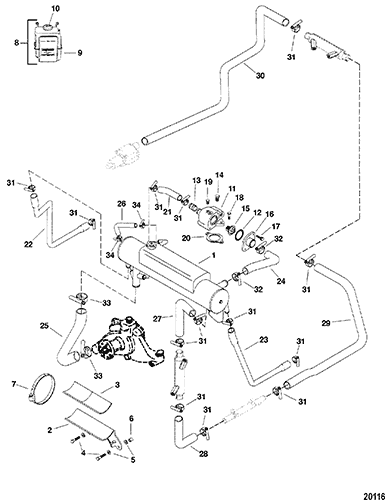

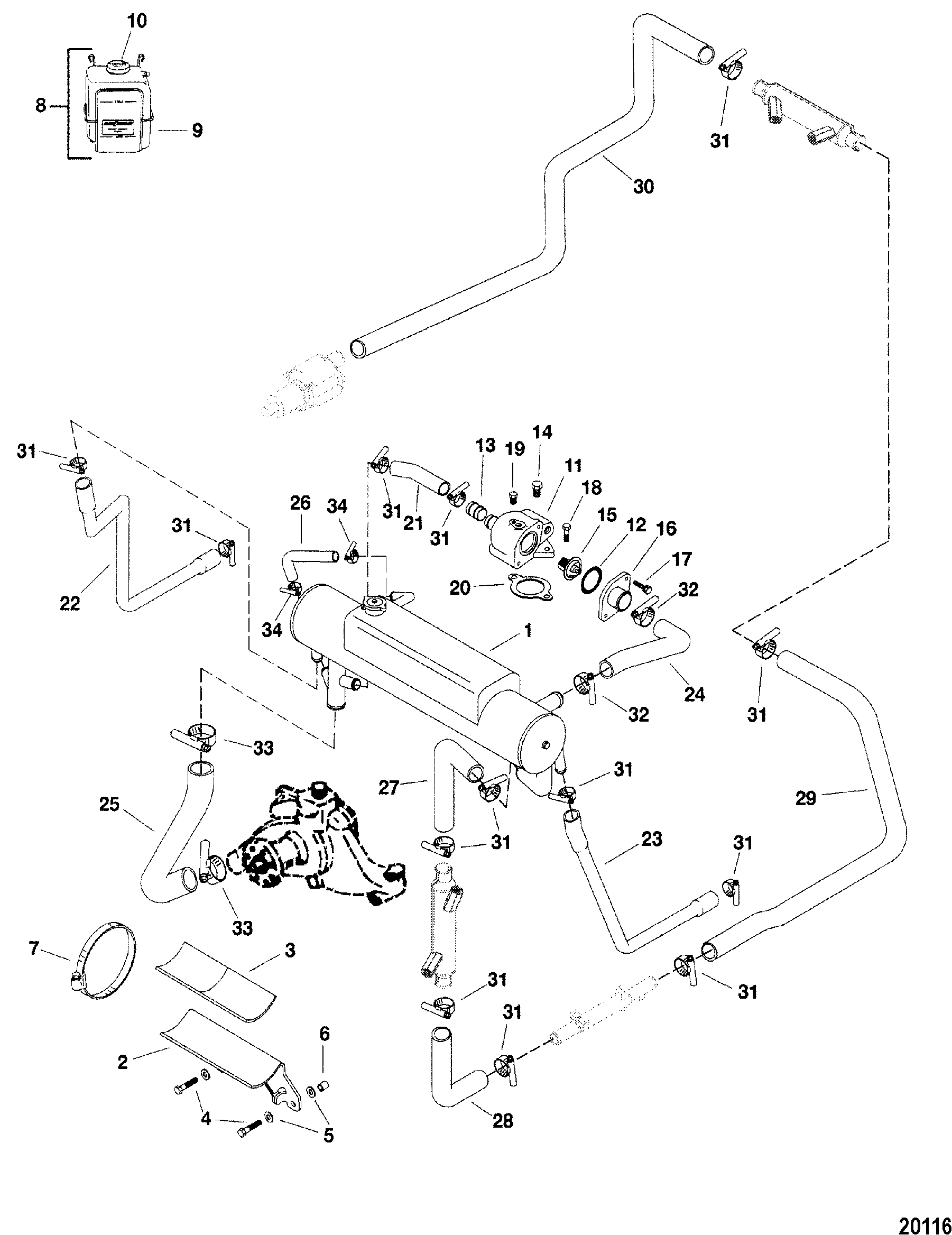

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # SEI # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807400A1



HEAT EXCHANGER 1

NS 8M0036623



COVER, Heat Exchanger End 2 814875
NS 8M0036987



GASKET 2 27-803644
NS 10-814877



BOLT 2

NS 8M0039163



O-RING, Special 2 25-814878
NS 36-8148791



CAP 1

2 860092A1



BRACKET ASSEMBLY, Heat Exchanger 1

3 18431



PAD 2

4 10-91903



SCREW, (.437-14 x 1.750) 1

4 10-47461



SCREW, (.437-14 x 1.00) 1

5 12-31263



WASHER 4

6 23-905201



SPACER, (.750 x .250) 2

7 54-815504388



CLAMP, Worm Gear 2

8 71587A10



RECOVERY KIT, Coolant 1
(COOLANT RECOVERY SYSTEM IS SOLD AS A COMPLETE KIT ONLY. THE COMPONENT PARTS CAN BE PURCHASED LOCALLY.)
NS 32-774572



HOSE, (48.00 Inches Bulk) 1

9 71587A11



BOTTLE, Plastic 1

10 72058



CAP 1

11 861188A1



HOUSING ASSEMBLY, Thermostat 1

12 25-8071341



SEAL 1
4
13 23-52020



SLEEVE, Hose 1   This Part is No Longer Available
14 22-32803

700-21894
PLUG, Pipe (.375-18) Brass 1

15 991551



THERMOSTAT 1

16 807075A1



COVER 1

17 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 2

18 10-98794 602-98-102-35 676-9-78129 700-28300 525-10-98794 SCREW, (.375-16 x 1.00) 2

19 22-328022



PLUG, Pipe (.125-27) Brass 1

20 27-530451



GASKET 1
4,5
21 32-807271



HOSE 1

22 32-861306



HOSE 1

23 32-807141



HOSE 1

24 32-807137



HOSE, Thermostat Housing To Heat Exchanger 1

25 32-805138



HOSE 1
 No longer made, limited availability
26 32-99520



HOSE 1

27 32-807406



HOSE 1

28 32-807989



HOSE 1
(454)  No longer made, limited availability
28 32-807989



HOSE 1
(502)  No longer made, limited availability
29 32-808045



HOSE, Fuel Cooler to Transmission Oil Cooler 1

30 32-808044



HOSE, Molded 1

31 54-815504216



CLAMP, Worm Gear (1.56 Diameter) 6

32 54-815504222



CLAMP, Worm Gear (1.98 DIameter) 2

33 54-815504232



CLAMP, Worm Gear (2.50 Diameter) 2

34 54-815504212



CLAMP, Worm Gear 2

NS 19-8079923



COVER, Hose Clamp End AR
3
- 27-811572A94



GASKET SET, Overhaul 1
(454)
- 27-805396A92



GASKET SET, Overhaul 1
(502)
