| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

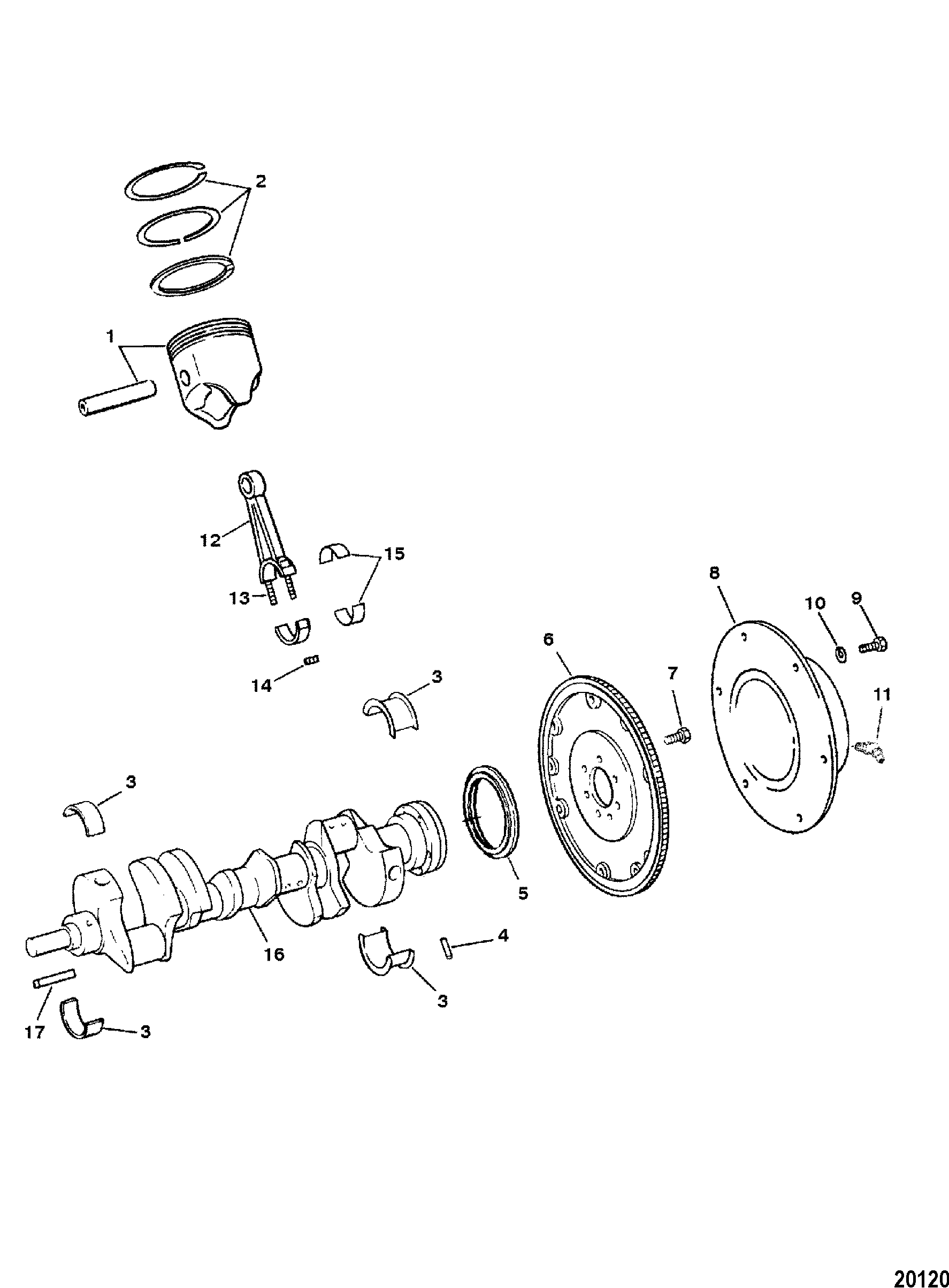

| 1 |
737-850477T |
|
|
|
|
PISTON ASSEMBLY (STANDARD) |
8 |
|
This Part is No Longer Available 454 MAG |
| 1 |
737-850451 |
|
|
|
|
PISTON KIT (.030 O.S.) |
AR |
|
This Part is No Longer Available 454 MAG 2 |
| 2 |
39-827651T |
|
|
|
|
RING, Piston (STANDARD) |
8 |
|
454 MAG |
| 2 |
39-850447 |
|
|
|
|
RING, Piston (.030 O.S.) |
AR |
|
454 MAG 2 |
| 1 |
737-827664 |
|
|
|
|
PISTON ASSEMBLY, Standard |
8 |
|
502 MAG |
| 1 |
737-827665A1 |
|
|
|
|
PISTON KIT (.030 O.S.) |
AR |
737-850450 |
This Part is No Longer Available 502 MAG No longer made, limited availability 2 |
| 2 |
39-827660T |
|
|
|
|
RING SET, Piston - Standard |
8 |
39-827660 |
502 MAG |
| 2 |
39-852935 |
|
|
|
|
RING SET, Piston - .030 Oversize |
8 |
|
This Part is No Longer Available 502 MAG |
| 3 |
23-818473001 |
|
|
|
|
BEARING SET, Main - Standard |
1 |
23-818473 |
|
| 3 |
23-818474 |
|
|
|
|
BEARING SET, Main - .001 Undersize (USA) |
AR |
|
2 |
| 3 |
23-818475 |
|
|
|
|
BEARING SET, Main - .002 Undersize (USA) |
AR |
|
2 |
| 3 |
818476001 |
|
|
|
|
BEARING SET, Main - .010 Undersize (USA) |
AR |
23-818476 |
2 |
| 3 |
23-818477 |
|
|
|
|
BEARING SET, Main - .020 Undersize (USA) |
AR |
|
2 |
| 4 |
17-43504 |
|
|
|
|
PIN, Dowel (1/4 IN. DIA.) |
1 |
|
|
| 5 |
26-811554 |
|
|
|
|
SEAL |
1 |
|
3,4 |
| 6 |
230-843374T1 |
|
|
|
|
FLYWHEEL |
1 |
|
|
| 7 |
10-845757 |
|
|
|
|
SCREW, (.437-20 x 1.00) |
6 |
10-49845 |
|
| 8 |
861523A9 |
|
|
|
|
COUPLER ASSEMBLY, Engine - Short Aluminium Hub |
1 |
|
|
| 9 |
10-14883 |
|
|
|
|
SCREW, (.375-16 x 1.12) |
6 |
|
|
| 10 |
12-20572 |
|
|
|
|
WASHER, (.390 x .750 x .093) |
6 |
|
|
| 11 |
22-49099 |
|
|
|
|
FITTING |
2 |
|
|
| 12 |
614-9641T |
|
|
|
|
CONNECTING ROD ASSEMBLY |
8 |
|
|
| 13 |
10-19234 |
|
|
|
|
SCREW, (.437-20) |
16 |
|
|
| 14 |
11-58056 |
|
|
|
|
NUT |
16 |
|
No longer made, limited availability |
| 15 |
23-85726001 |
|
|
|
|
BEARING SET, Connecting Rod - Standard |
8 |
23-85726 |
|
| 15 |
23-85727 |
|
|
|
|
BEARING SET, Connecting Rod - (.001 Undersize) (PAIR, USA) |
AR |
|
2 |
| 15 |
23-85728 |
|
|
|
|
BEARING SET, Connecting Rod - (.002 Undersize) (PAIR, USA) |
AR |
|
This Part is No Longer Available 2 |
| 15 |
23-85691 |
|
|
|
|
BEARING SET, Connecting Rod - (.010 Undersize) (PAIR, USA) |
AR |
|
2 |
| 15 |
23-85729 |
|
|
|
|
BEARING SET, Connecting Rod - (.020 Undersize) (PAIR, USA) |
AR |
|
2 |
| 16 |
429-811552 |
|
|
|
|
CRANKSHAFT |
1 |
|
(454 MAG) |
| 16 |
429-843083T |
|
|
|
|
CRANKSHAFT |
1 |
429-845597T |
(502 MAG) |
| 17 |
28-845607 |
|
|
|
|
KEY |
1 |
|
|
| - |
27-811572A94 |
|
|
|
|
GASKET SET, Overhaul |
1 |
|
(454) |
| - |
27-805396A92 |
|
|
|
|
GASKET SET, Overhaul |
1 |
|
(502) |
