Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

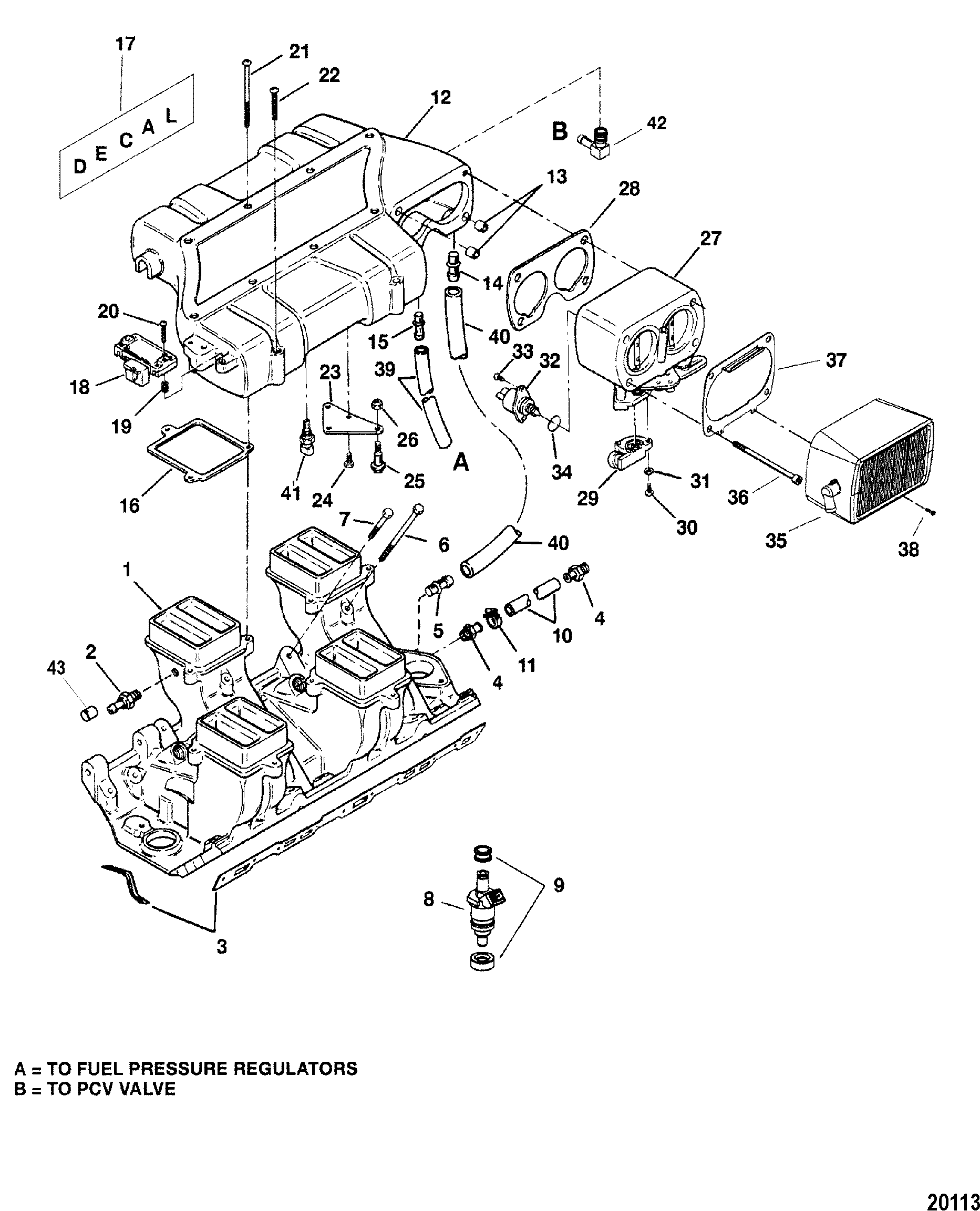

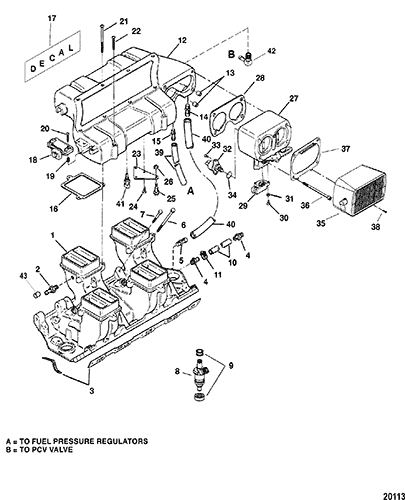

1 |
861300A2 |
|
|
|
|
MANIFOLD ASSEMBLY, Intake |
1 |
|
|
2 |
22-805691 |
|
|
|
|
FITTING, (.250) Barb |
1 |
|
|
3 |
27-805403A1 |
|
|
|
|
GASKET SET |
1 |
|
4,5 |
4 |
22-806242 |
|
|
|
|
CONNECTOR |
2 |
|
|
5 |
22-805519 |
|
|
|
|
FITTING, Barb (.250 Inch) |
1 |
|
|
6 |
10-43749 |
|
|
|
|
SCREW, (.375-16 x 5.750) |
4 |
|
|
7 |
10-862020 |
|
|
|
|
SCREW (3/8-16 X 2 IN.) |
12 |
|
|
8 |
861260T |
|
|
|
|
INJECTOR, Fuel |
8 |
|
|
9 |
25-851889 |
|
|
|
|
O-RING |
16 |
|
|
10 |
32-8059871 |
|
|
|
|
HOSE, Water Pump To Intake Manifold |
1 |
|
|
11 |
54-815504212 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
12 |
805240A1 |
|
|
|
|
PLENUM ASSEMBLY, Intake |
1 |
|
This Part is No Longer Available |
13 |
23-52698 |
|
|
|
|
SLEEVE |
2 |
|
|
14 |
22-805519 |
|
|
|
|
FITTING, Barb (.250 Inch) |
1 |
|
|
15 |
22-805598 |
|
|
|
|
FITTING, (.1875) Barb |
1 |
|
|
16 |
27-805522A1 |
|
|
|
|
GASKET SET |
1 |
|
4,5 |
17 |
37-86131415 |
|
|
|
|
DECAL |
1 |
|
This Part is No Longer Available (454 MAG) |
17 |
37-86131433 |
|
|
|
|
DECAL |
1 |
|
(502 MAG) |
18 |
864856A1 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
805217A1 |
|
19 |
26-805412 |
|
|
|
|
SEAL |
1 |
|
4,5 |
20 |
10-807120 |
|
|
|
|
SCREW, (#10-24 x 1.00) |
2 |
|
|
21 |
10-805391 |
|
|
|
|
SCREW, (.312-18 x 4.500) |
8 |
|
|
22 |
10-805390 |
|
|
|
|
SCREW, (.312-18 x 2.250) |
4 |
|
|
23 |
805413T |
|
|
|
|
BRACKET, Throttle Cable |
1 |
|
This Part is No Longer Available |
24 |
10-73286 |
|
|
|
|
SCREW, (.250-20 x .500) Stainless Steel |
3 |
|
|
25 |
10-96430 |
|
|
|
|
SHOULDER SCREW |
1 |
|
|
26 |
11-814101 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
1 |
|
|
27 |
860204A5 |
|
|
|
|
THROTTLE BODY ASSEMBLY |
1 |
|
|
28 |
27-805396 |
|
|
|
|
GASKET, Throttle Body |
1 |
|
4,5 |
29 |
805226A1 |
|
|
|
|
SENSOR ASSEMBLY, TPS |
1 |
|
|
30 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
31 |
12-28001 |
|
|
|
|
WASHER, (.188 x .438 x .049) |
2 |
|
This Part is No Longer Available |
32 |
805224A1 |
|
|
|
|
MOTOR ASSEMBLY, IAC |
1 |
|
|
33 |
10-805400 |
|
|
|
|
SCREW, (#8-32 x .500) Stainless Steel |
2 |
|
|
34 |
25-808547 |
|
|
|
|
O-RING |
1 |
|
|
35 |
807656A2 |
|
|
|
|
FLAME ARRESTOR |
1 |
|
|
36 |
10-808040 |
|
|
|
|
SCREW, (5/16-18 x 4.0) (5/16-18 X 4 IN.) |
4 |
|
|
37 |
807654T |
|
|
|
|
BRACKET, Flame Arrestor |
1 |
|
|
38 |
10-808039 |
|
|
|
|
SCREW, (#6-32) (#6-32) |
2 |
|
|
39 |
32-8M0063567 |
|
|
|
|
HOSE, (52.00 Inches Bulk) |
2 |
32-80617379 |
|
40 |
32-7381567 |
|
|
|
|
TUBING, (42.00 Inches Bulk) |
1 |
|
|
41 |
805223T |
|
|
|
|
SENSOR |
1 |
|
|
42 |
22-687271 |
|
|
|
|
FITTING, (.250-18) 90 Degree - Brass (TO PCV VALVE) |
1 |
|
|
43 |
806899 |
|
|
|
|
PLUG |
1 |
|
|
- |
27-811572A94 |
|
|
|
|
GASKET SET, Overhaul |
1 |
|
(454) |
- |
27-805396A92 |
|
|
|
|
GASKET SET, Overhaul |
1 |
|
(502) |
