454 Mag MPI Bravo (Gen 6) GM V-8 - Serial 0L085400 Thru 0M024999 - Oil Filter and Adaptor

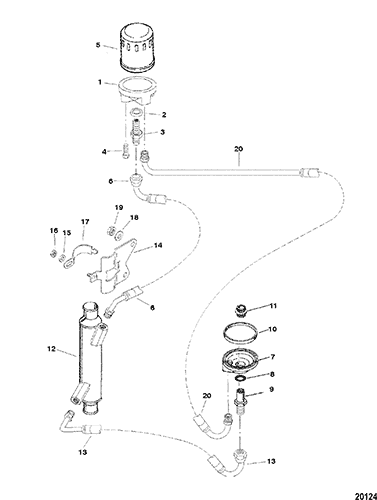

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-806329T | ADAPTOR, Oil Filter | 1 | ||||||
| 2 | 26-42077 | SEAL | 1 | 4 | |||||
| 3 | 22-806328 | FITTING | 1 | ||||||
| 4 | 10-98257 | SCREW, (.312-18 x .500) | 2 | ||||||
| 5 | 35-866340Q03 | 676-9-57825 | FILTER, Oil | 1 | 35-802885Q | ||||
| 6 | 32-861173 | HOSE | 1 | ||||||
| 7 | 35-818400A1 | ADAPTOR | 1 | ||||||
| 8 | 26-42077 | SEAL | 1 | 4 | |||||
| 9 | 22-806121 | FITTING | 1 | ||||||
| 10 | 27-91892 | 700-32390 | GASKET | 1 | 4 | ||||
| 11 | 22-805632 | CONNECTOR | 1 | ||||||
| 12 | 807371T1 | 542-807371-T-1 | COOLER, Oil | 1 | |||||
| 13 | 32-807409 | HOSE, COOLER TO ADAPTOR | 1 | ||||||
| 14 | 808043A1 | BRACKET | 1 | ||||||
| 15 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 1 | ||||||
| 16 | 11-8267088 | NUT, (.250-20) | 1 | ||||||
| 17 | 807445T | CLAMP | 1 | ||||||
| 18 | 12-34567 | WASHER | 1 | ||||||
| 19 | 11-29553 | NUT, (.437-14) | 1 | ||||||
| 20 | 32-861171 | HOSE, BRACKET TO ADAPTOR | 1 | ||||||
| - | 27-802567A98 | GASKET SET, Engine Overhaul | 1 |
