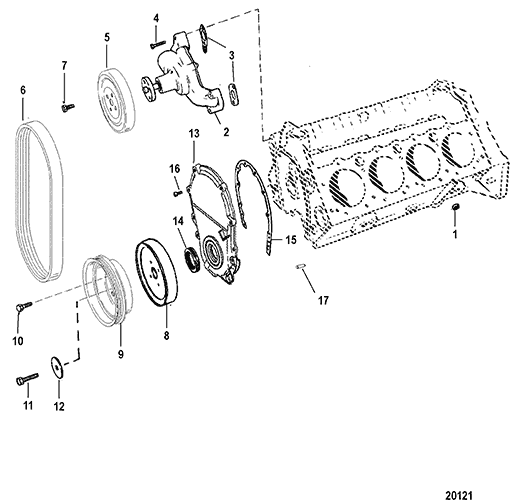

Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
1 |
|
|
|
|
VALVE, Relief |
1 |
|
(30 PSI) |
2 |
8504541 |
|
|
|
|
PUMP ASSEMBLY, Circulating Water |
1 |
|
|
3 |
27-49110 |
|
676-9-60066 |
700-31770 |
|
GASKET, Circulating Water Pump Mount |
2 |
|
4 |
4 |
10-805611 |
|
|
|
|
SCREW, (.375-16 x 1.750) |
4 |
10-811574 |
|
5 |
807729T |
|
|
|
|
PULLEY |
1 |
|
|
6 |
57-861049Q |
|
|
|
|
BELT, Serpentine |
1 |
57-861049 |
(Use With 4-3/4 in. Plastic P/S Pump Pulley) |
6 |
57-865615Q06 |
|
|
|
|
BELT, Serpentine |
1 |
57-8638766 |
(Use With 5-3/4 in. Metal P/S Pump Pulley) |
7 |
10-47277 |
|
|
|
|
SCREW, (.312-24 x .750) |
4 |
|
|
8 |
850461001 |
|
|
|
|
BALANCER |
1 |
850461 |
|
9 |
8077301 |
|
|
|
|
PULLEY |
1 |
|
|
10 |
10-58126 |
|
|
|
|
BOLT, (.375-24 x 1.25) |
3 |
|
|
11 |
|
|
|
|
SCREW, (.500-20 x 2.500) |
1 |
10-811559 |
|
12 |
12-49103 |
|
|
|
|
WASHER |
1 |
|
|
13 |
845610T |
|
|
|
|
COVER ASSEMBLY, Cylinder Front |
1 |
|
|
14 |
26-8219471 |
|
676-9-61612 |
|
|
SEAL |
1 |
|
4 |
15 |
27-850456 |
|
|
|
|
GASKET, Front Cover Mount |
1 |
|
4 |
16 |
10-850455 |
|
|
|
|
SCREW, (1/4-20 x 0.5) (1/4-20 X 1/2 IN.) |
6 |
|
|
17 |
17-843378 |
|
|
|
|
PIN, Dowel (1/4 In. Diameter) |
1 |
17-35312 |
|
- |
27-802567A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
