454 Mag MPI Bravo (Gen 6) GM V-8 - Serial 0L085400 Thru 0M024999 - Exhaust Block-Off Plate

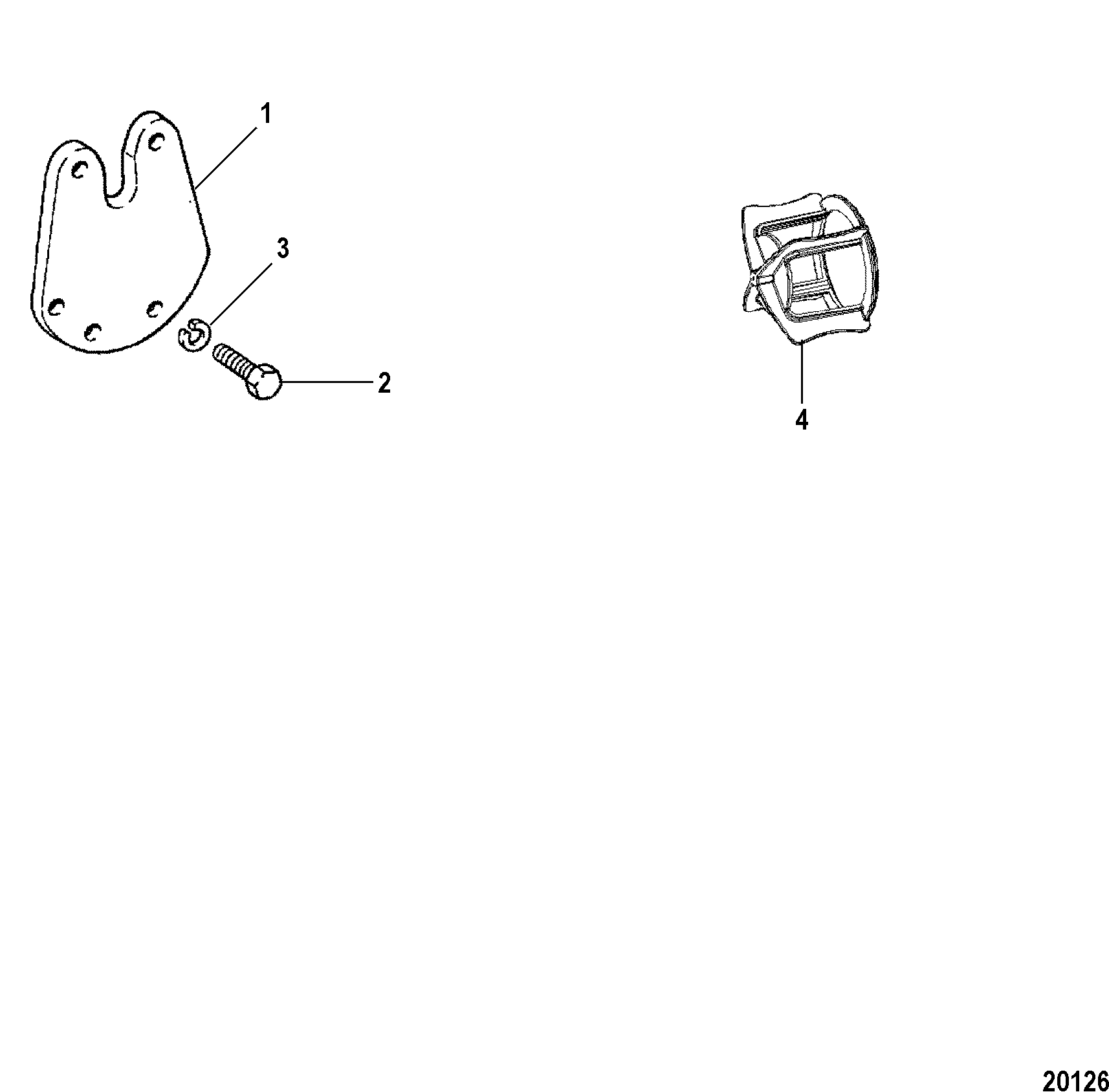

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Alternator and Bracket
- Closed Cooling System
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Electrical Components
- Engine Mounting
- Exhaust Block-Off Plate
- Exhaust Manifold and Exhaust Elbow
- Flywheel Housing
- Fuel Filter and Rail
- Fuel Pump and Fuel Cooler
- Intake Manifold and Intake Plenum
- Oil Filter and Adaptor
- Oil Pan and Oil Pump
- Oil Reservoir Bottle and Bracket
- Power Steering Components
- Sea Water Pump
- Senders and Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Thermostat Housing and Hoses
- Water Pump and Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861776A2 | PLATE KIT | 1 | ||||||
| 2 | 10-98794 | 676-9-78129 | 700-28300 | 602-98-102-35 | SCREW, (.375-16 x 1.00) | 4 | |||
| 3 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 4 | 860222A1 | RESONATOR | 1 |
