Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

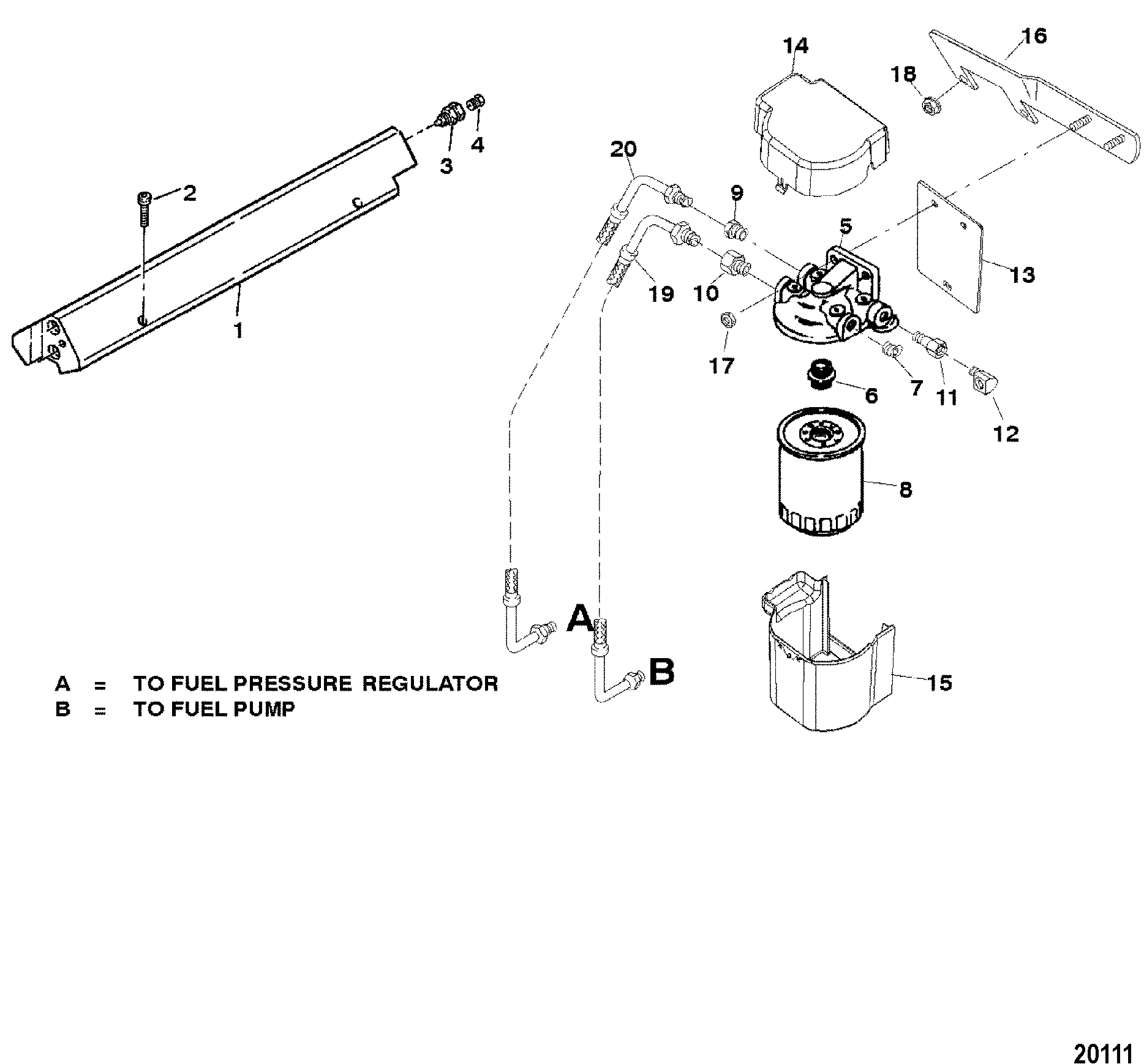

1 |
861261T1 |
|
|
|
|
FUEL RAIL |
1 |
|
This Part is No Longer Available |
2 |
10-805698 |
|
|
|
|
SCREW, (1/4-20 x 1.75) (1/4-20 X 1-3/4 IN.) |
4 |
|
|
3 |
22-805408 |
|
|
|
|
VALVE, Rail Pressure Service |
1 |
|
|
4 |
22-805515 |
|
|
|
|
CAP, Shrader Valve - Brass |
1 |
|
|
5 |
89876A3 |
|
|
|
|
BASE ASSEMBLY, Fuel Filter/Water Separator |
1 |
|
|
6 |
22-816133 |
|
|
|
|
FITTING |
1 |
|
|
7 |
22-32561 |
|
|
|
|
PLUG, Pipe - Allen Head (.250-18) |
1 |
|
|
8 |
35-802893Q01 |
|
|
|
|
FILTER, Fuel/Water Separating - Quicksilver Brand |
1 |
35-802893Q |
|
9 |
22-33821 |
|
|
|
|
CONNECTOR |
1 |
|
|
10 |
22-808003 |
|
|
|
|
CONNECTOR |
1 |
|
|
11 |
22-807958 |
|
|
|
|
FITTING, (1/4-18) |
1 |
|
|
12 |
22-46982 |
|
|
|
|
FITTING, (90 Degree) |
1 |
|
|
13 |
807956T |
|
|
|
|
INSULATOR, Back |
1 |
|
|
14 |
807806T |
|
|
|
|
INSULATOR, Cap |
1 |
|
This Part is No Longer Available |
15 |
807807T |
|
|
|
|
INSULATOR, Base |
1 |
|
This Part is No Longer Available |
16 |
807918T |
|
|
|
|
BRACKET, Fuel Filter Base |
1 |
|
|
17 |
11-82670811 |
|
|
|
|
NUT, (.312-24) |
2 |
|
|
18 |
11-860069 |
|
|
|
|
NUT, (.375-16) |
2 |
|
|
19 |
32-807953 |
|
|
|
|
LINE ASSEMBLY, Fuel |
1 |
|
|
20 |
32-8M0045997 |
|
|
|
|
HOSE ASSEMBLY, Fuel Regulator to Filter |
1 |
32-807954T |
|
