| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

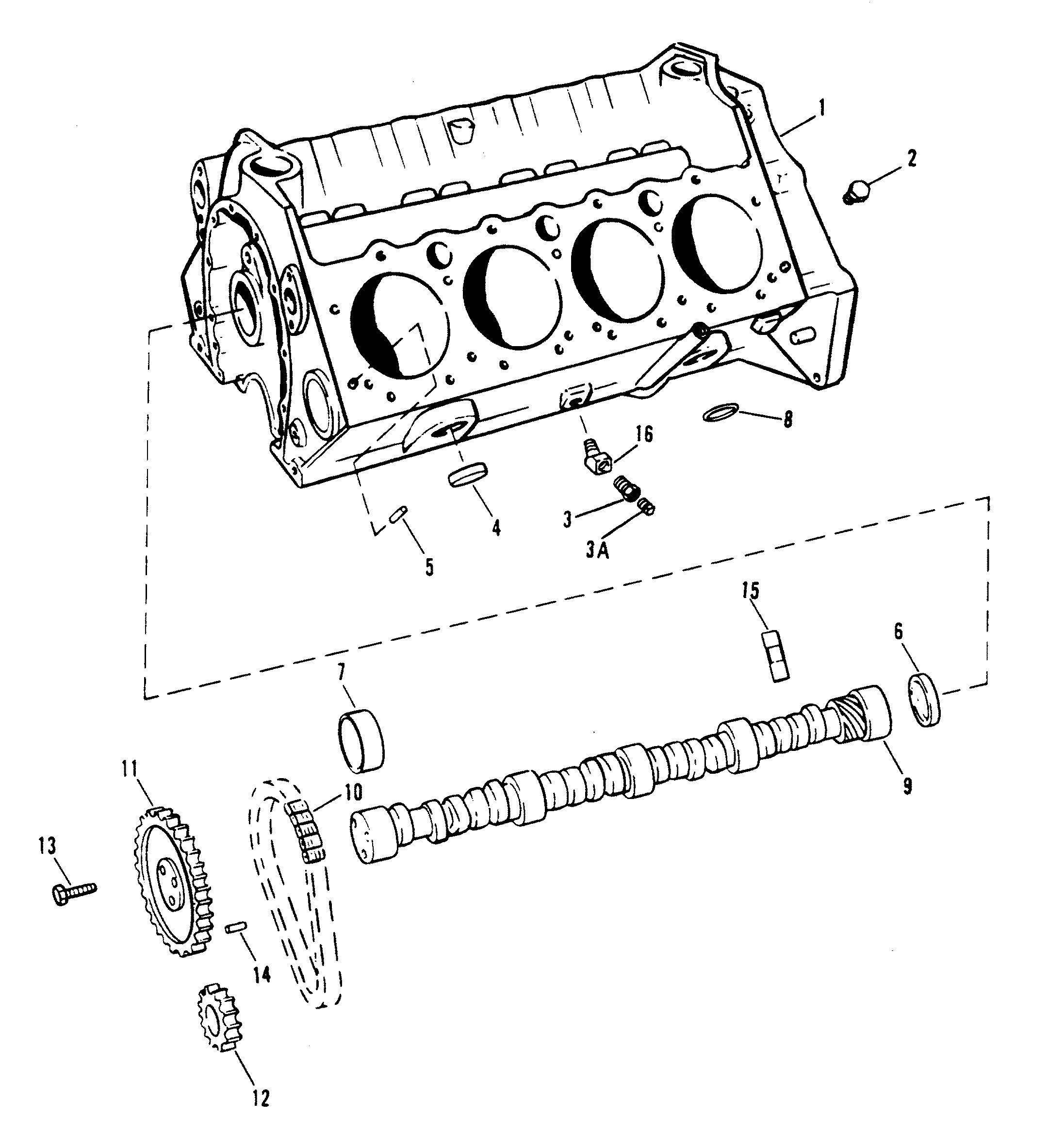

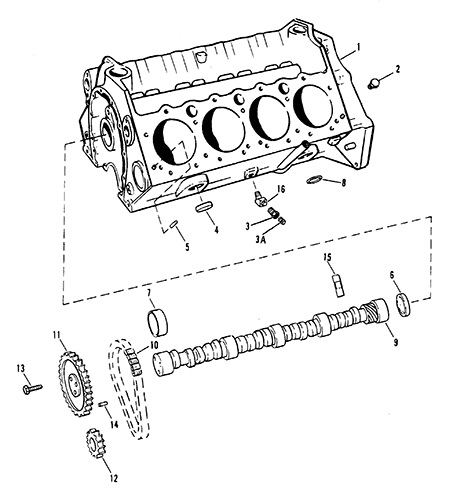

| 1 |
842-801999 |
|
|
|
|
CYLINDER BLOCK |
1 |
|
This Part is No Longer Available MARINE LONG BOCK ENGINES INCLUDE INTERNAL PARTS AND CYLINDER HEADS |
| 2 |
22-48340 |
|
|
|
|
PIPE PLUG (1/4") |
4 |
|
1 = CONTENTS OF GASKET SET [27-811547A94] |
| 2 |
22-48358T |
|
|
|
|
PIPE PLUG (3/8") |
2 |
22-48358 |
|
| 3 |
22-48556 |
|
|
|
|
BUSHING |
2 |
|
|
| 3A |
22-328022 |
|
|
|
|
PIPE PLUG |
2 |
22-32802 |
|
| 4 |
19-34270 |
|
|
|
|
EXPANSION PLUG (1-5/8" DIA.) |
8 |
|
|
| 5 |
17-52190 |
|
|
|
|
DOWEL PIN |
4 |
|
|
| 6 |
19-94140 |
|
|
|
|
EXPANSION PLUG |
1 |
|
|
| 7 |
23-85684 |
|
|
|
|
BEARING SET |
1 |
|
|
| 8 |
25-69756 |
|
|
|
|
O-RING (1/2") |
1 |
25-811528 |
|
| 9 |
431-9830 |
|
|
|
|
CAMSHAFT |
1 |
|
|
| 10 |
845796T |
|
|
|
|
TIMING CHAIN |
1 |
811580 |
|
| 11 |
43-811578 |
|
|
|
|
CAMSHAFT SPROCKET |
1 |
|
|
| 12 |
43-845794T |
|
|
|
|
CRANKSHAFT SPROCKET |
1 |
43-811579 |
|
| 13 |
10-845942 |
|
|
|
|
BOLT |
3 |
10-35339 |
|
| 14 |
17-843378 |
|
|
|
|
DOWEL PIN (1/4" DIA.) |
1 |
17-35312 |
|
| 15 |
811583 |
|
|
|
|
LIFTER |
16 |
|
|
| 16 |
22-37682 |
|
|
|
|
ELBOW (45 DEGREES) |
1 |
|
|
| - |
806352R5 |
|
|
|
|
MARINE LONG BLOCK ENGINE |
1 |
806352A1 |
This Part is No Longer Available |
| - |
27-811547A94 |
|
|
|
|
GASKET SET-OVERHAUL |
1 |
|
This Part is No Longer Available |
| - |
92-809826 |
|
|
|
|
SEALER-RED RTV (WHERE APPLICABLE) |
1 |
92-916011 |
|
| - |
34227Q02 |
|
|
|
|
PERFECT SEAL (WHERE APPLICABLE) |
1 |
92-342271 |
|
