454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Oil Filter And Adaptor

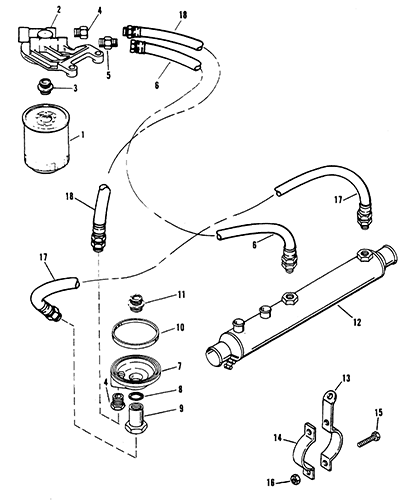

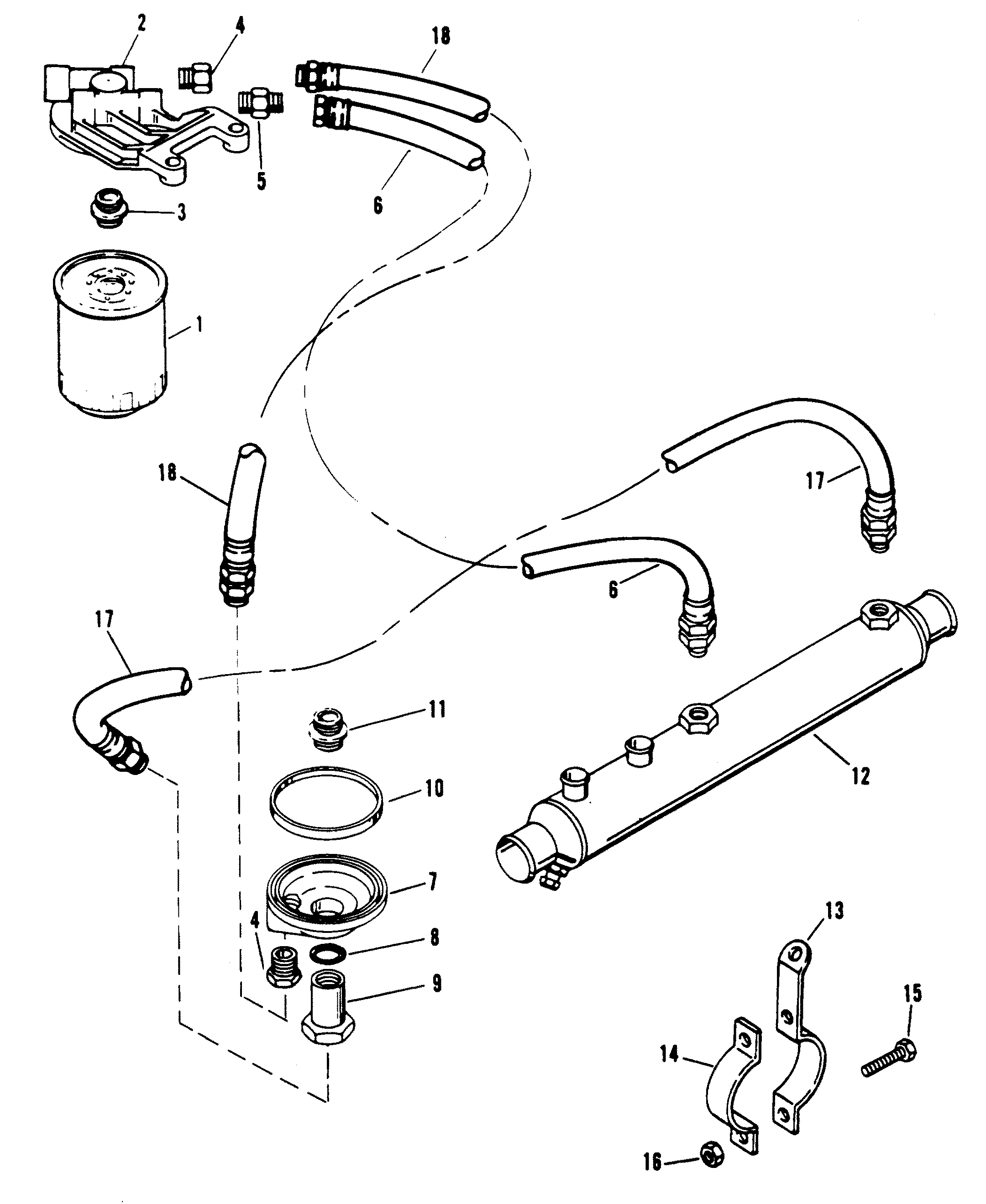

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 35-866340Q03 | OIL FILTER | 1 | 14957 | CONTENTS OF GASKET SET [27-811547A94] | ||||
| 2 | 817403A4 | BRACKET ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 3 | 22-814822 | ADAPTOR | 1 | ||||||
| 4 | 22-805563 | FITTING | 2 | ||||||
| 5 | 22-806186 | FITTING | 1 | ||||||
| 6 | 32-8062402 | HOSE | 1 | This Part is No Longer Available | |||||
| 7 | 35-818400A1 | ADAPTOR | 1 | 35-818400T | |||||
| 8 | 26-42077 | SEAL | 1 | 1 | |||||
| 9 | 22-806121 | FITTING | 1 | ||||||
| 10 | 27-91892 | GASKET | 1 | 1 | |||||
| 11 | 22-805632 | CONNECTOR | 1 | ||||||
| 12 | 806423T | OIL COOLER | 1 | ||||||
| 13 | 18728 | BRACKET (LONG) | 2 | This Part is No Longer Available | |||||
| 14 | 56328A1 | BRACKET (SHORT) | 2 | ||||||
| 15 | 10-60300 | SCREW | 4 | ||||||
| 16 | 11-30506 | NUT | 4 | ||||||
| 17 | 32-806125 | HOSE | 1 | This Part is No Longer Available | |||||
| 18 | 32-8061787 | HOSE | 1 |
