454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Fuel Pump And Fuel Filter

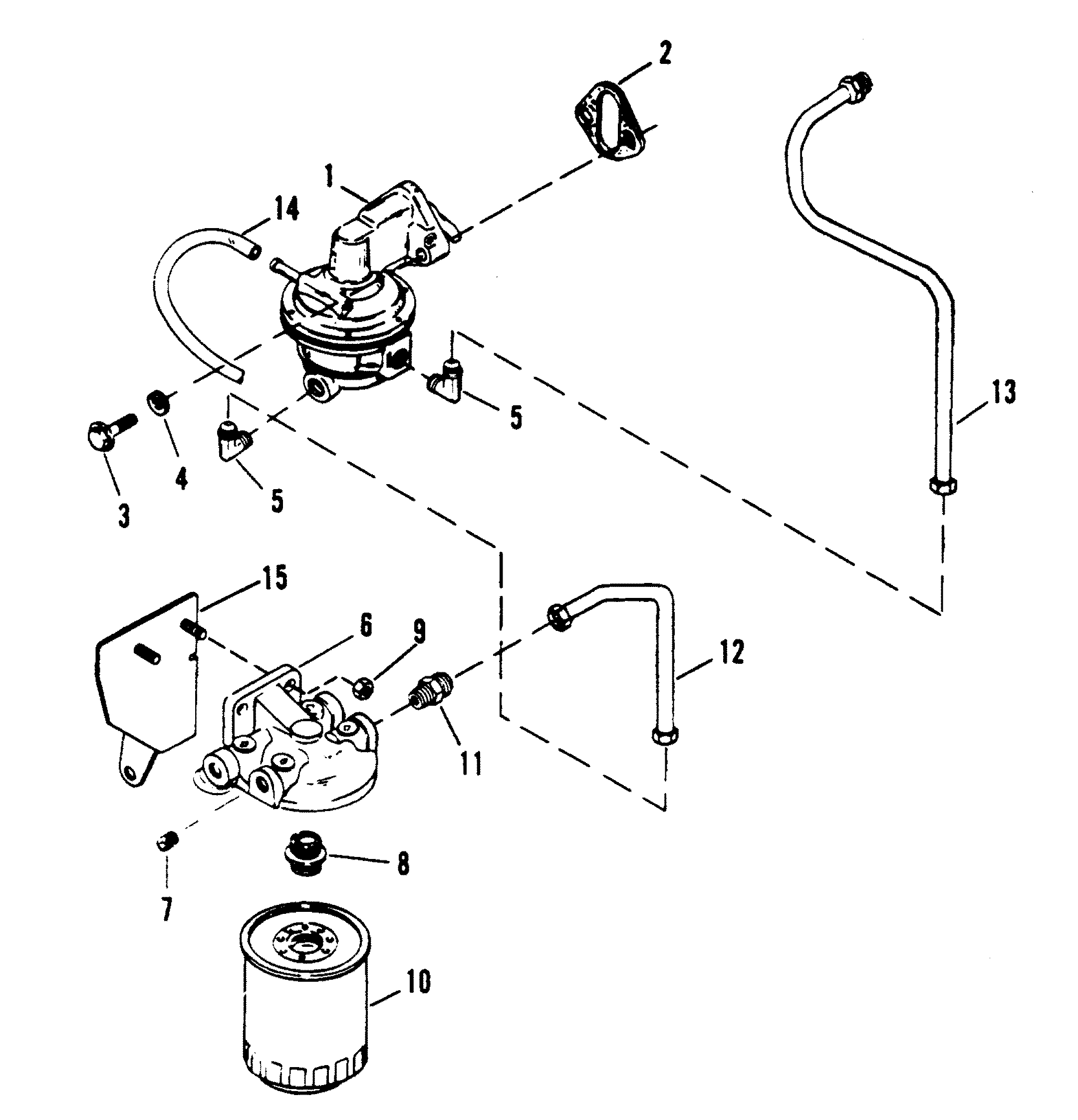

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861677T | FUEL PUMP | 1 | 818383T | |||||
| 2 | 27-34213 | 676-9-61041 | 700-31360 | GASKET | 1 | 1 | |||
| 3 | 10-34354 | SCREW | 2 | ||||||
| 4 | 13-35048 | LOCKWASHER | 2 | ||||||
| 5 | 22-43276 | FITTING (90 DEGREES) | 2 | ||||||
| 6 | 89876A3 | BASE ASSEMBLY | 1 | ||||||
| 7 | 22-32561 | PIPE PLUG | 3 | ||||||
| 8 | 22-816133 | FITTING | 1 | 22-8161331 | |||||
| 9 | 11-29250 | NUT | 2 | ||||||
| 10 | 35-802893Q01 | FUEL FILTER | 1 | 35-806771 | |||||
| 11 | 22-42897 | FITTING (STRAIGHT) | 1 | No longer made, limited availability | |||||
| 12 | 32-805637T | FUEL LINE-FUEL FILTER TO FUEL PUMP | 1 | 32-818385T | |||||
| 13 | 32-821499T | FUEL LINE-PUMP TO CARB | 1 | ||||||
| 14 | 32-7381567 | HOSE-FUEL PUMP TO CARBURETOR | 1 | ||||||
| 15 | 805556T1 | BRACKET | 1 | This Part is No Longer Available |
