454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Starter Motor (2 - 7-8" Diameter End Cap)

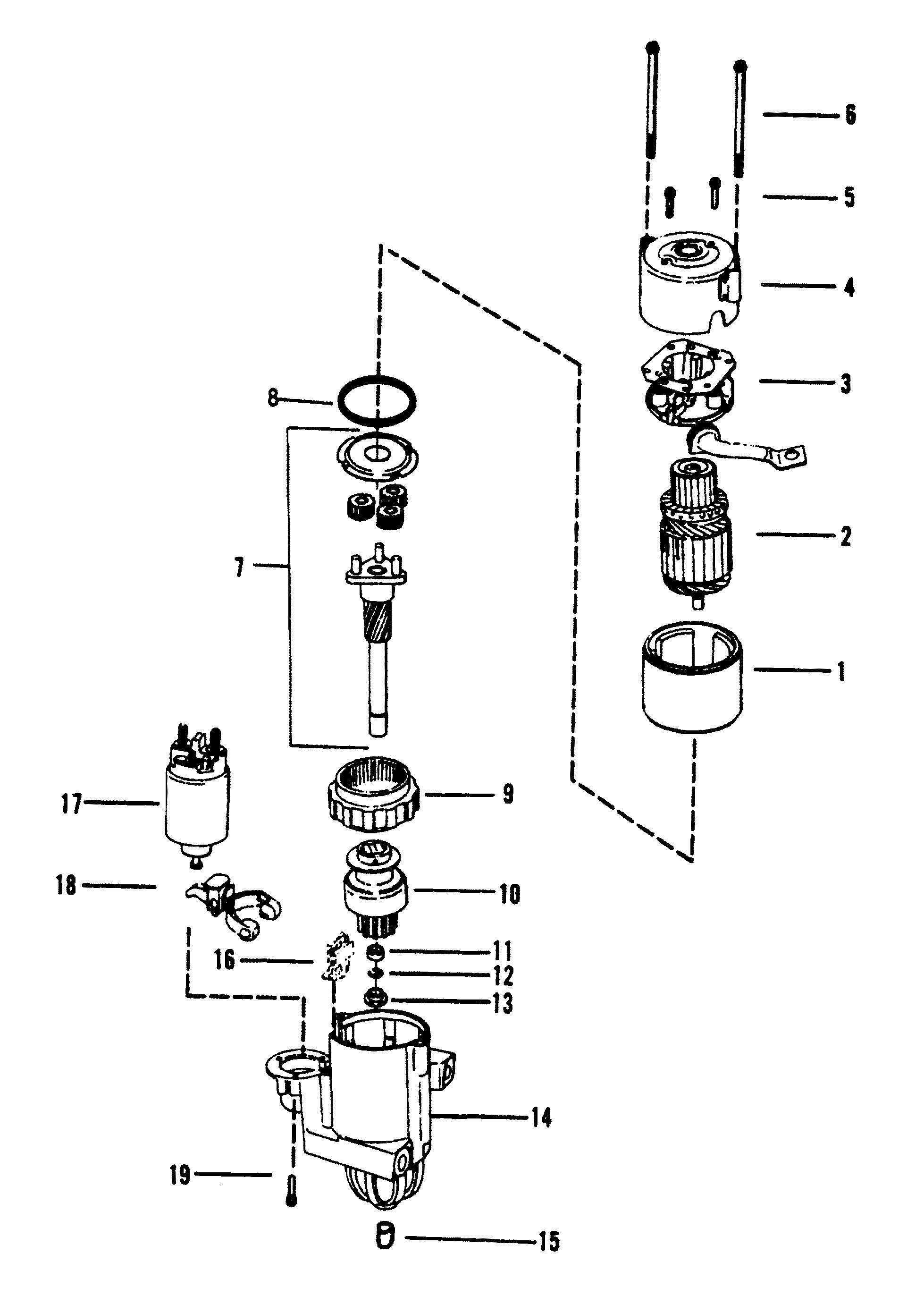

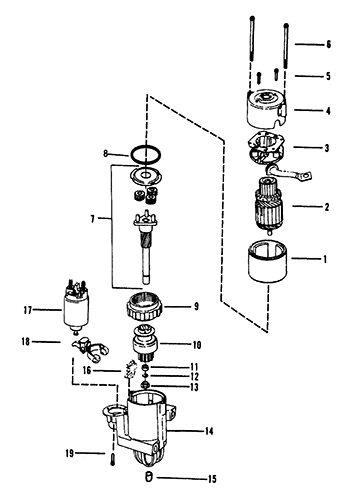

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # SEI # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907   602-10099MD 602-10099HD STARTER MOTOR 1 50-806964A3 NOT SOLD SEPARATELY
2 N.S.S.           NOT SOLD SEPARATELY, ARMATURE 1   8" [PG 260]
3 N.S.S.           NOT SOLD SEPARATELY, BRUSH HOLDER AND SPRING 1   2-7/8" DIAMETER END CAP
4 N.S.S.           NOT SOLD SEPARATELY, FRAME 1   This part is not sold separate.
5 N.S.S.           NOT SOLD SEPARATELY, SCREW 2    This part is not sold separate.
6 N.S.S.           NOT SOLD SEPARATELY, THRU BOLT 2    This part is not sold separate.
7 N.S.S.           NOT SOLD SEPARATELY, SHAFT AND GEAR 1    This part is not sold separate.
8 N.S.S.           NOT SOLD SEPARATELY, GASKET 1    This part is not sold separate.
9 N.S.S.           NOT SOLD SEPARATELY, GEAR 1    This part is not sold separate.
10 N.S.S.           NOT SOLD SEPARATELY, DRIVE 1    This part is not sold separate.
11 33291           COLLAR 1
12 53-33290           RETAINING RING 1
13 N.S.S.           NOT SOLD SEPARATELY, THRUST COLLAR 1    This part is not sold separate.
14 809459           DRIVE HOUSING 1   This Part is No Longer Available
15 23-814476           BUSHING 1   This Part is No Longer Available
16 N.S.S.           NOT SOLD SEPARATELY, GROMMET 1    This part is not sold separate.
17 809463A1   676-9-15125 700-72450     SOLENOID 1 8094631
18 N.S.S.           NOT SOLD SEPARATELY, LEVER 1    This part is not sold separate.
19 N.S.S.           NOT SOLD SEPARATELY, SCREW 3    This part is not sold separate.
