454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Intake Manifold And Front Cover

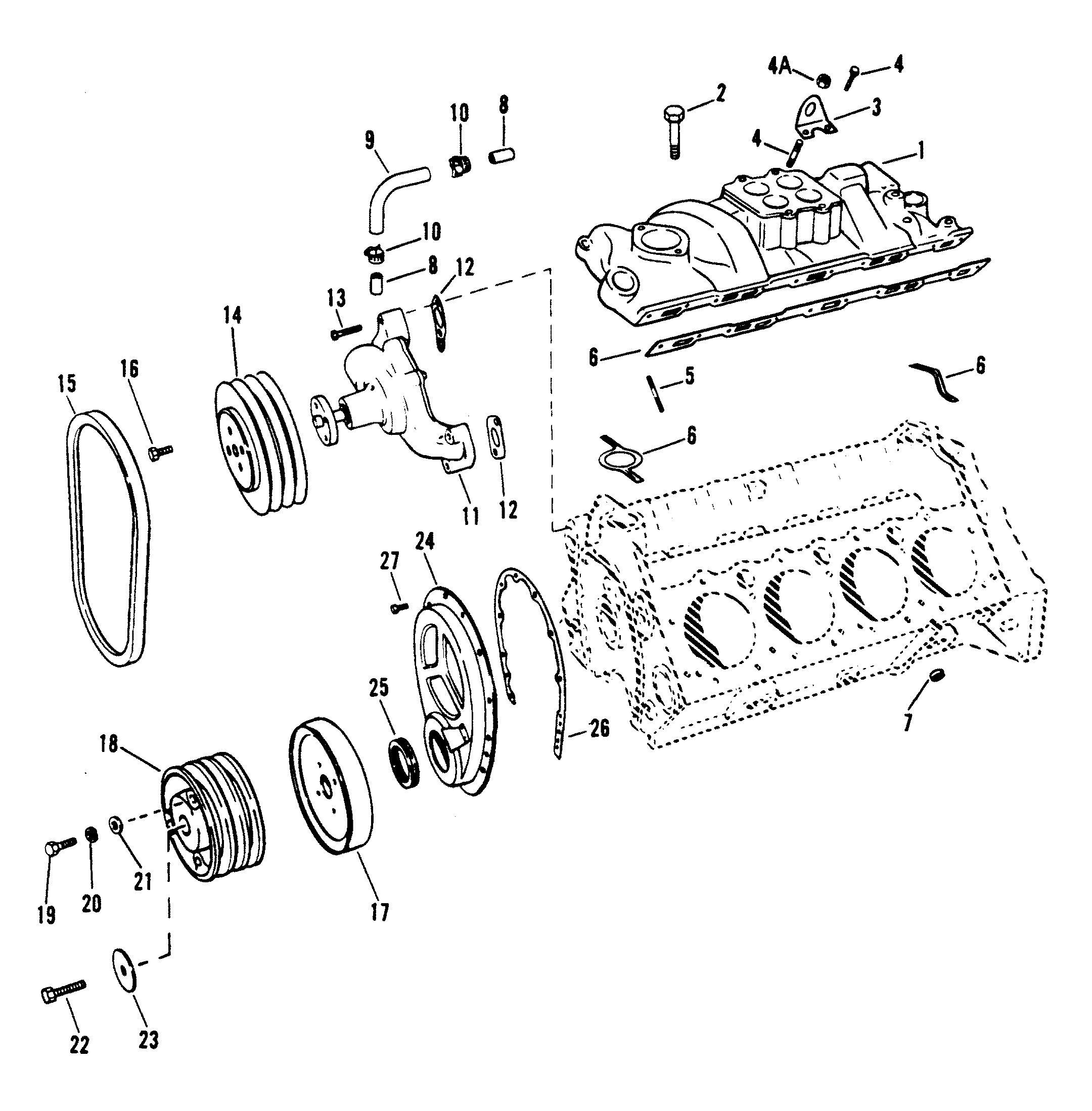

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 72608T | INTAKE MANIFOLD | 1 | 72608 | This Part is No Longer Available | ||||
| 2 | 10-37510 | BOLT | 12 | No longer made, limited availability | |||||
| 2 | 10-805611 | BOLT | 4 | 10-811574 | |||||
| 3 | 54-64628 | LIFTING EYE | 1 | ||||||
| 4 | 10-34354 | SCREW | 2 | ||||||
| 4 | 16-806250 | STUD | 2 | ||||||
| 4A | 11-32219 | NUT | 1 | ||||||
| 5 | N.S.S. | STUD (GM # 10092939) | 4 | ||||||
| 6 | 27-805722A1 | 676-9-61217 | GASKET SET | 1 | 1 | ||||
| 7 | 34543 | BY-PASS VALVE | 2 | ||||||
| 8 | 22-806242 | CONNECTOR | 2 | ||||||
| 9 | 32-805987 | HOSE | 1 | ||||||
| 10 | 54-815504412 | 602-9A-108-09 | CLAMP | 2 | |||||
| 11 | 8504541 | WATER PUMP ASSEMBLY | 1 | 811573 | |||||
| 12 | 27-49110 | GASKET | 2 | 1 | |||||
| 13 | 10-805611 | SCREW | 4 | 10-811574 | |||||
| 14 | 19692T01 | PULLEY | 1 | 19692T | |||||
| 15 | 57-48122Q | BELT | 1 | 57-48122 | |||||
| 16 | 10-47277 | SCREW (3/4") | 4 | ||||||
| 17 | 845625T2 | HARMONIC BALANCER | 1 | 811557 | |||||
| 18 | 90081T | PULLEY | 1 | ||||||
| 19 | 10-358701 | BOLT (3/8-16 X 2) | 3 | ||||||
| 20 | 13-35048 | LOCKWASHER | 3 | ||||||
| 21 | WASHER | 3 | |||||||
| 22 | BOLT | 1 | 10-811559 | ||||||
| 23 | 12-49103 | WASHER | 1 | ||||||
| 24 | 811570 | COVER | 1 | This Part is No Longer Available | |||||
| 25 | 26-8219471 | OIL SEAL | 1 | 26-821947 | 1 | ||||
| 26 | 27-811572 | GASKET | 1 | 1 | |||||
| 27 | 10-35366 | SCREW | 10 |
