454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Sea Water Pump

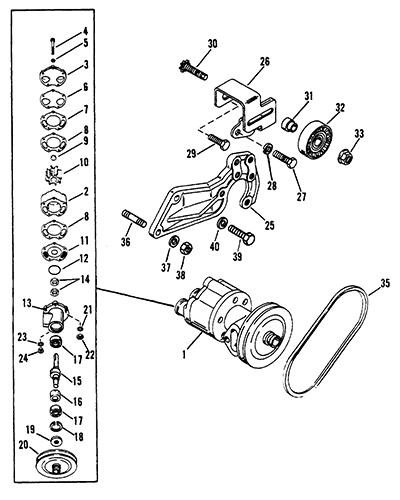

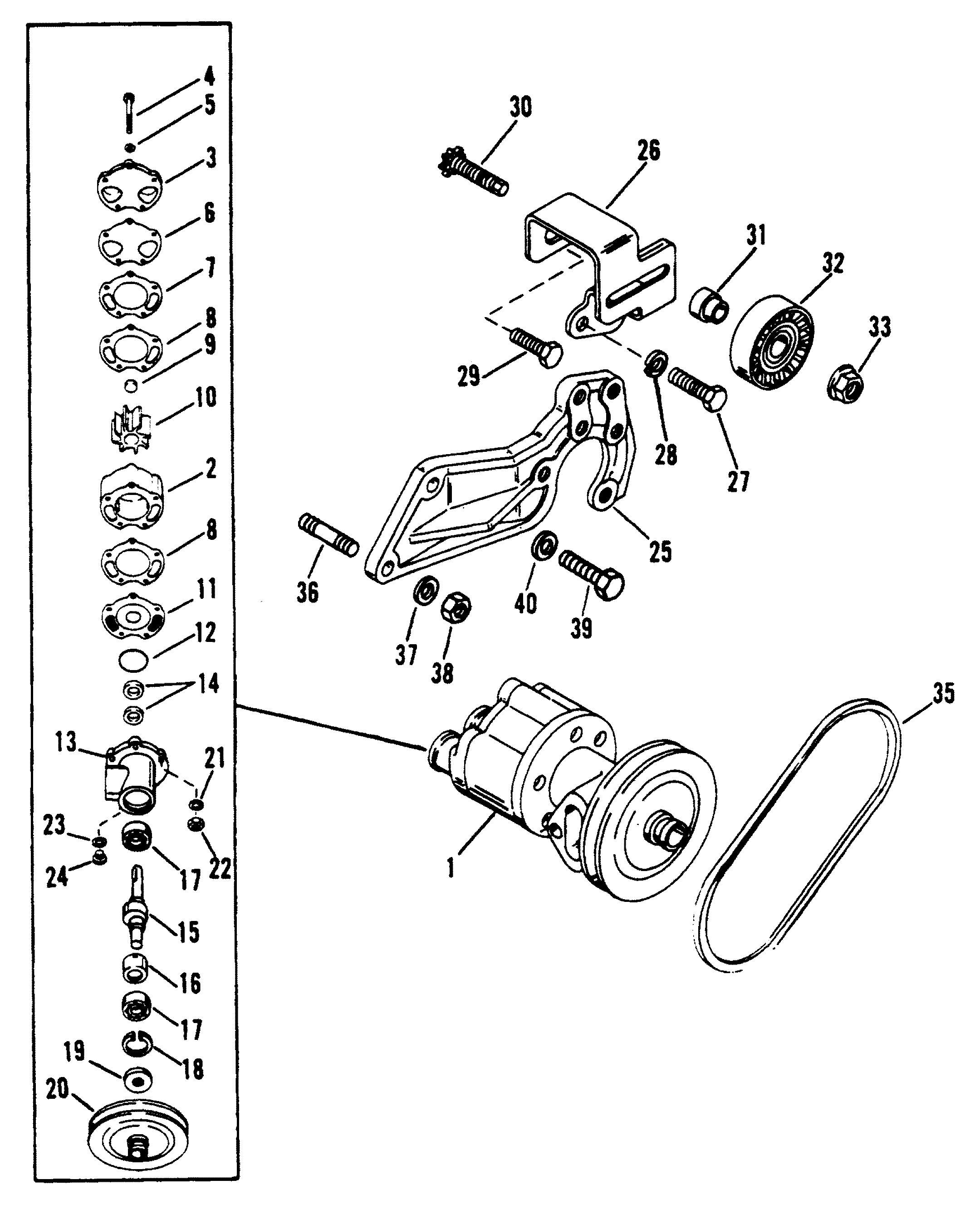

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | SEI # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 46-807151A8 | WATER PUMP ASSEMBLY | 1 | 46-72774A69 | |||||
| 2 | 46-72774A40 | BODY | 1 | This Part is No Longer Available | |||||
| 3 | 87631A4 | COVER | 1 | ||||||
| 4 | 10-99347 | SCREW | 5 | ||||||
| 5 | 12-20084 | WASHER | 5 | ||||||
| 6 | 27-8052151 | GASKET | 1 | ||||||
| 7 | 94916 | OUTER WEAR PLATE | 1 | ||||||
| 8 | 27-94914 | 700-32730 | GASKET | 2 | |||||
| 9 | 19-59504 | PLUG | 1 | ||||||
| 10 | 47-59362T1 | 625-4011 | 676-9-45375 | 700-89740 | IMPELLER | 1 | 47-593621 | ||
| 11 | 94576 | INNER WEAR PLATE | 1 | ||||||
| 12 | 25-94288 | QUAD RING | 1 | ||||||
| 13 | 818367A1 | HOUSING ASSEMBLY | 1 | ||||||
| 14 | 26-90562 | 676-9-76107 | 700-85080 | 602-94-264-01 | OIL SEAL | 2 | |||
| 15 | 818366A1 | SHAFT ASSEMBLY | 1 | ||||||
| 16 | 818745A1 | SLIP RING | 1 | ||||||
| 17 | 30-72961 | BALL BEARING | 2 | ||||||
| 18 | 53-23720 | RETAINING RING | 1 | ||||||
| 19 | 26-806930 | OIL SEAL | 1 | ||||||
| 20 | 818365T | PULLEY | 1 | ||||||
| 21 | 13-39107 | 700-21496 | LOCKWASHER | 1 | |||||
| 22 | 11-21908 | NUT | 1 | ||||||
| 23 | 25-805726 | O-RING | 2 | ||||||
| 24 | 22-8M0058389 | SCREW (MAGNETIC) | 1 | 10-14834A1 | |||||
| 25 | 818368T1 | BRACKET | 1 | ||||||
| 26 | 818379T | IDLER BRACKET | 1 | ||||||
| 27 | 10-76926 | SCREW | 2 | ||||||
| 28 | 13-35048 | LOCKWASHER | 2 | ||||||
| 29 | 10-17965 | SCREW | 1 | ||||||
| 30 | 43-8183812 | PINION STUD | 1 | 43-8183811 | |||||
| 31 | 865193 | BUSHING | 1 | 818380 | |||||
| 32 | 8M6500024 | PULLEY | 1 | 818382 | |||||
| 33 | 11-859135 | 676-9-78116 | NUT | 1 | 11-817618 | ||||
| 35 | 57-69143Q | V-BELT | 1 | 57-69143T | |||||
| 36 | 16-806591 | STUD | 1 | ||||||
| 37 | 13-32993 | LOCKWASHER | 1 | ||||||
| 38 | 11-22024 | NUT | 1 | ||||||
| 39 | 10-47462 | SCREW | 1 | ||||||
| 40 | 13-32993 | LOCKWASHER | 1 |
