454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Exhaust Manifold And Exhaust Elbow

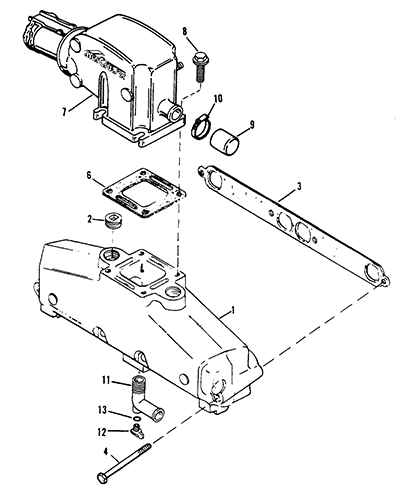

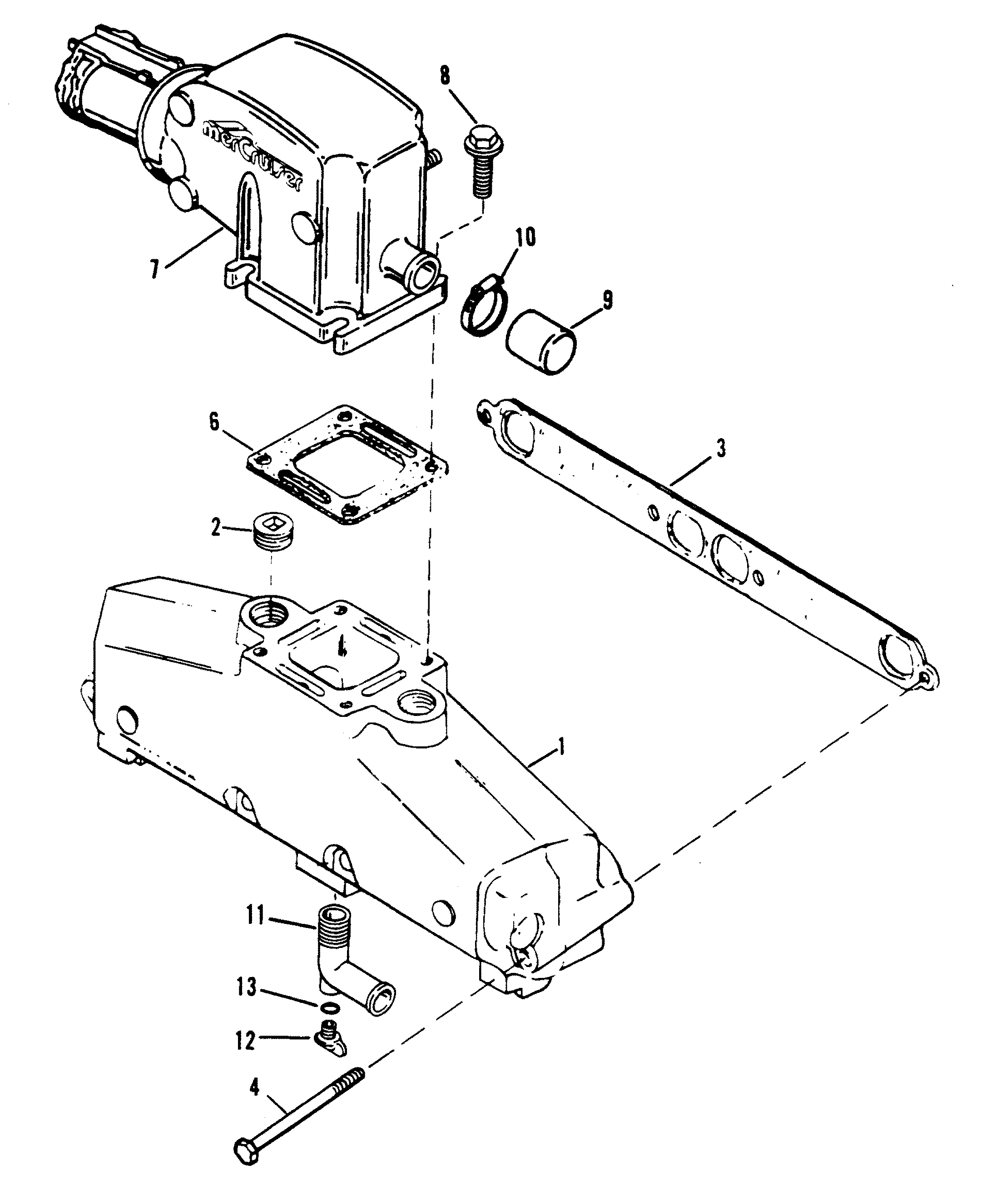

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807078T10         EXHAUST MANIFOLD ASSEMBLY 2 89011A8
2 22-41622   676-9-41205 700-21892   PLUG 8 22-33198A1
3 27-46820   676-9-61400 700-33760   GASKET 2
1
4 10-37612         SCREW (1-1/4") 16

6 27-863724         GASKET 2 27-41813 1
7 816900A5         EXHAUST ELBOW ASSEMBLY (PORT) 1   This Part is No Longer Available
7 816900A9         EXHAUST ELBOW ASSEMBLY (STARBOARD) 1   This Part is No Longer Available
8 10-865982005         SCREW (1") 6 10-12244
8 10-98534         SCREW (2-1/2") 2

9 19-805727001         RUBBER CAP 2 19-805727
10 54-815504220         CLAMP 2

11 22-862210A01   676-9-41206 700-13991   DRAIN ELBOW 2 22-806926A1
12 22-806608A02         DRAIN PLUG 2 22-806608A1
13 25-32509         QUAD RING 2 25-806609
- 807476A7         RISER KIT (3") 1 93320A7 EACH KIT CONTAINS 2 RISERS
- 807477A5         RISER KIT (6") 1 93322A5 EACH KIT CONTAINS 2 RISERS
