454 Mag Bravo (Gen 5) GM V-8 1995-1996 - Serial 0F305000 Thru 0F801699 - Power Steering Components

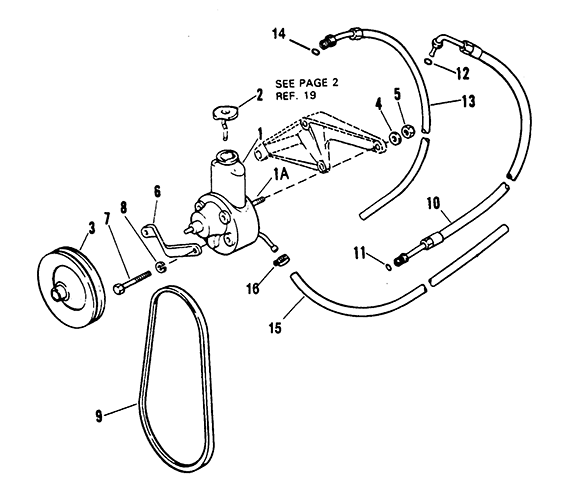

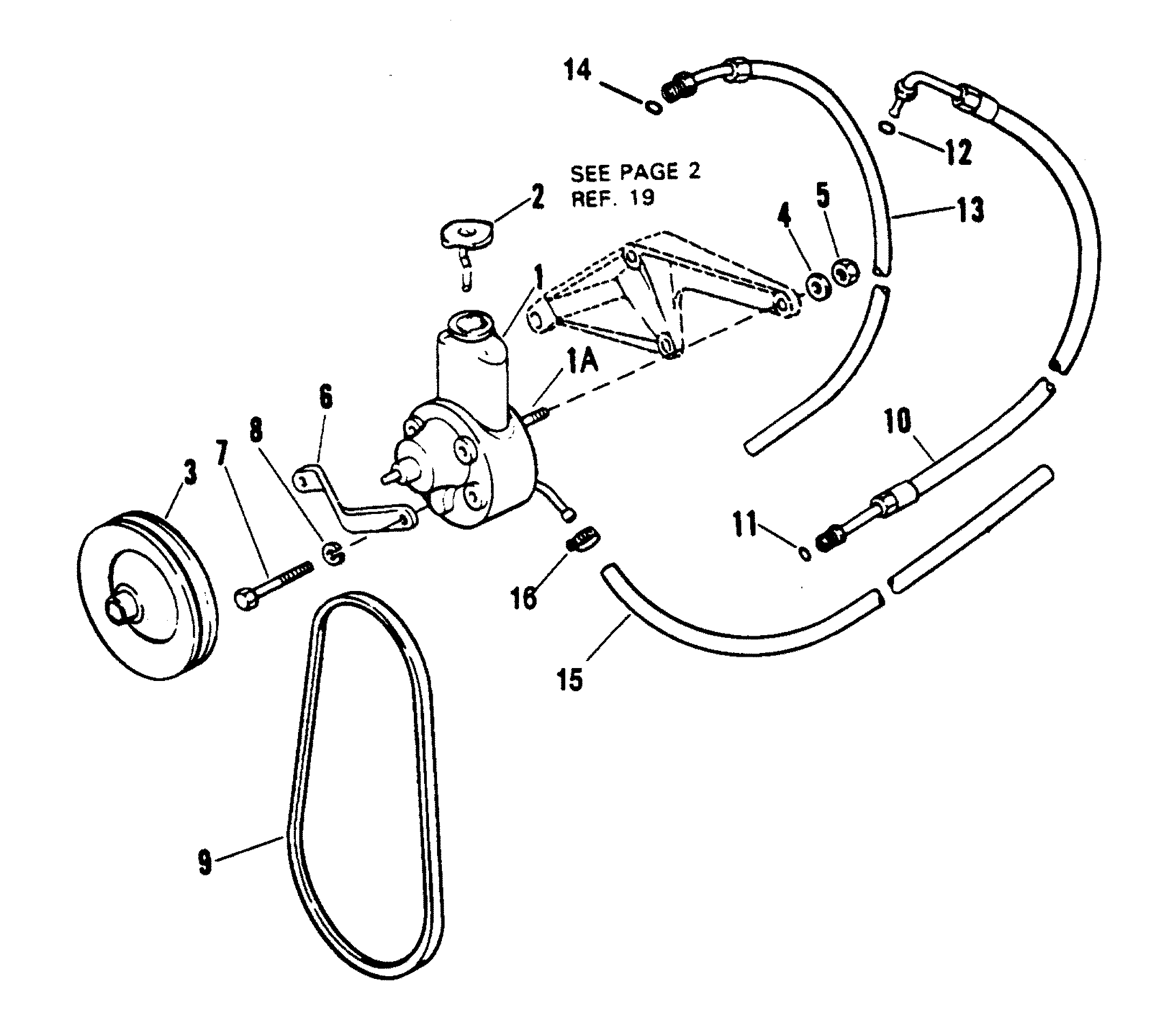

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons, And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust Plate
- Flame Arrestor
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Miscellaneous Parts and Accessories
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Shift Bracket
- Starter And Alternator
- Starter Motor (2 - 7-8" Diameter End Cap)
- Thermostat Housing (Standard Cooling)
- Weber Carburetor
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16792A39 | POWER STEERING PUMP | 1 | 16792A1 | Pump DOES NOT come with pulley | ||||
| 1A | 16-41877 | STUD | 2 | ||||||
| 2 | 36-95805 | CAP | 1 | ||||||
| 3 | 73873A1 | PULLEY | 1 | ||||||
| 4 | 23-72057 | SPACER | 2 | ||||||
| 5 | 11-90517 | NUT | 2 | ||||||
| 6 | 98813F1 | BRACE | 1 | 98813A1 | |||||
| 7 | 10-40001188 | SCREW | 1 | ||||||
| 8 | 13-400248 | LOCKWASHER | 1 | ||||||
| 9 | 57-812427Q | V-BELT | 1 | 57-812427T | |||||
| 10 | 32-80622216 | HOSE (FITTINGS ON BOTH ENDS) | 1 | ||||||
| 11 | 25-89879 | O-RING | 1 | ||||||
| 12 | 25-806232 | O-RING | 1 | ||||||
| 13 | 32-80622142 | HOSE (FITTINGS ON ONE END) | 1 | ||||||
| 14 | 25-89879 | O-RING | 1 | ||||||
| 15 | 32-8M0062341 | HOSE-PUMP TO OIL COOLER | 1 | 32-5251915 | |||||
| 16 | 54-815504206 | CLAMP | 3 |
