5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Alternator (Motorola 8MR2039K)

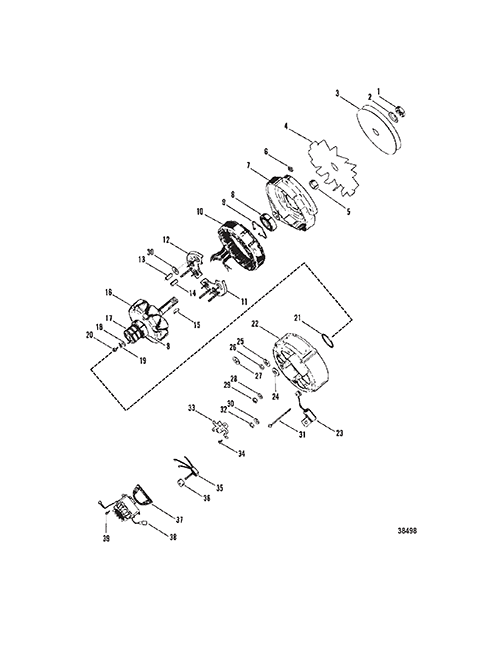

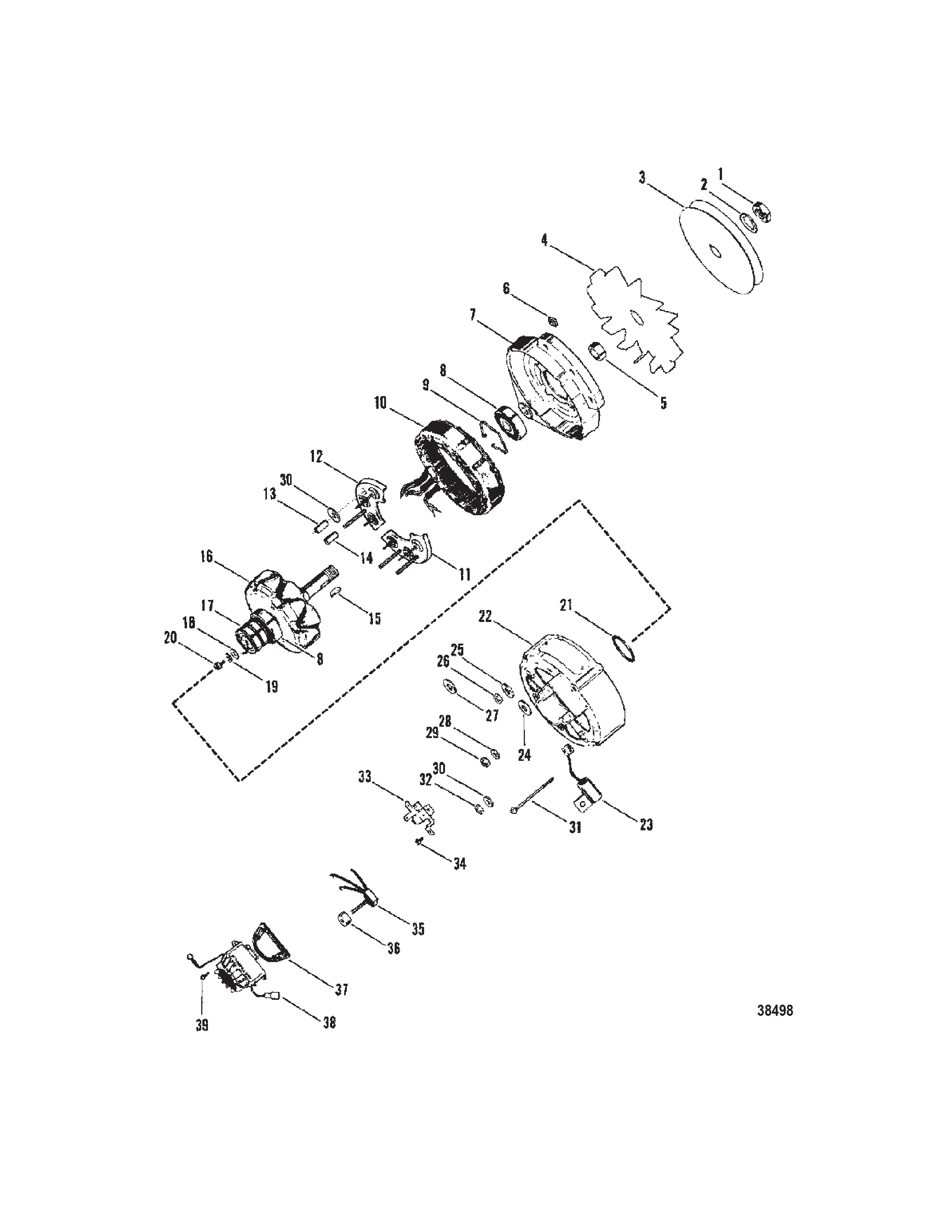

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AR-150)
- Alternator (Mando AV155603)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'Y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| - | 0000 | 92497A3 | ALTERNATOR ASSEMBLY (55 Ampere) | 1 | [1] | |
| 1 | 0390 | 7027 | NUT Fan & Pulley to Rotor | 1 | ||
| 2 | 0390 | 7033 | LOCKWASHER | 1 | ||
| 3 | 0390 | 8637 | PULLEY Drive End Frame | 1 | ||
| 4 | 0390 | 7004 | FAN Drive End Frame | 1 | ||
| 5 | 0390 | 7012 | SPACER Fan to Drive End Frame | 1 | ||
| 6 | 0390 | 7028 | NUT Thru Bolt Attaching | 4 | ||
| 7 | 0390 | 7000 | COVER ASSEMBLY Front | 1 | ||
| 8 | 0390 | 7005 | BEARING Ball Drive End | 2 | ||
| 9 | 0390 | 7006 | RING Drive End Ball Bearing | 1 | ||
| 10 | 0390 | 8636 | STATOR ASSEMBLY | 1 | ||
| 11 | 0390 | 7009 | DIODE Negative | 1 | ||
| 12 | 0390 | 7010 | HEAT SINK Positive | 1 | ||
| 13 | 0390 | 7020 | SLEEVE Insulator | 1 | ||
| 14 | 0390 | 7018 | SLEEVE Insulator | 1 | ||
| 15 | 0390 | 7034 | KEY Rotor | 1 | ||
| 16 | 0390 | 8635 | ROTOR ASSEMBLY | 1 | ||
| 17 | 0390 | 7014 | SLIP RING | 1 | ||
| 18 | 0390 | 7206 | WASHER Rotor Screw | 1 | ||
| 19 | 0390 | 7207 | LOCKWASHER Rotor Screw | 1 | ||
| 20 | 0390 | 7029 | SCREW (5/8 In.) Rotor Shaft | 1 | ||
| 21 | 0390 | 7007 | RETAINER Rotor Shaft Bearing | 1 | ||
| 22 | 0390 | 7003 | HOUSING Rear | 1 | ||
| 23 | 0390 | 7035 | CONDENSER | 1 | ||
| 24 | 0390 | 7023 | INSULATOR Regulator Terminal Stud | 1 | ||
| 25 | 0390 | 7024 | WASHER Condensor Terminal Stud | 1 | ||
| 26 | 0390 | 7025 | NUT Terminal Stud | 1 | ||
| 27 | 0390 | 7208 | WASHER | 1 | ||
| 28 | 0390 | 7032 | LOCKWASHER | 2 | ||
| 29 | 0390 | 7026 | NUT Terminal Attaching | 1 | ||
| 30 | 0390 | 7022 | WASHER Condensor Terminal Stud | 1 | ||
| 31 | 0390 | 8638 | THRU BOLT | 4 | ||
| 32 | 0390 | 7021 | NUT Condensor Terminal Attaching | 1 | ||
| 33 | 0390 | 7011 | HOLDER ASSEMBLY Brush | 1 | ||
| 34 | 0390 | 7030 | SCREW (1/2 In.) Brush Holder | 2 | ||
| 35 | 0390 | 7008 | DIODE TRIO | 1 | ||
| 36 | 0390 | 7019 | SPACER Diode Trio | 1 | ||
| 37 | 0390 | 7013 | GASKET Voltage Regulator | 1 | ||
| 38 | 0390 | 7036 | REGULATOR Voltage | 1 | ||
| 39 | 0390 | 7015 | SCREW Voltage Regulator Attaching | 4 |
PART NOTES:
[1] - Alternate part numbers:
817119R01Reman
92497A 3QS
