5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Audio Warning System

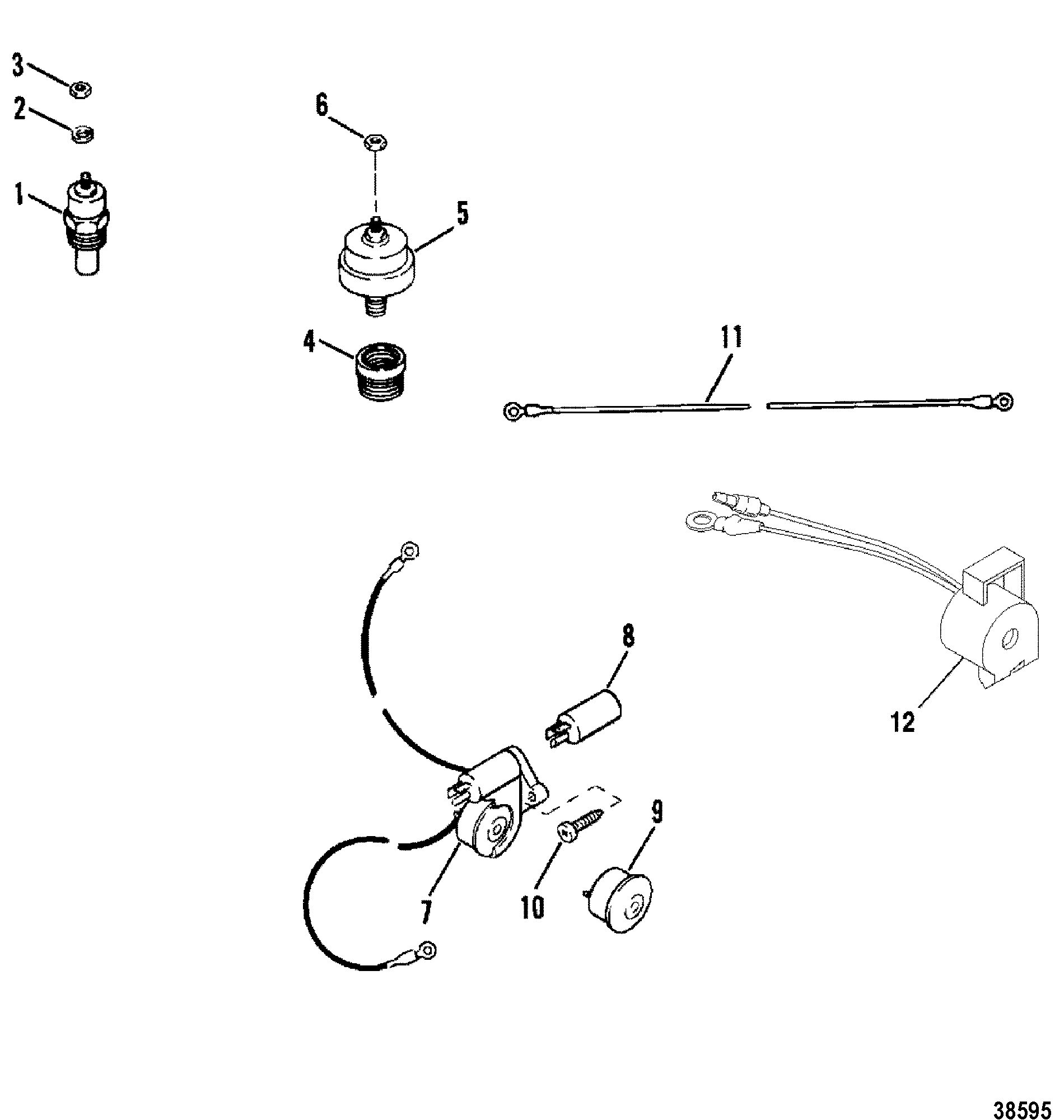

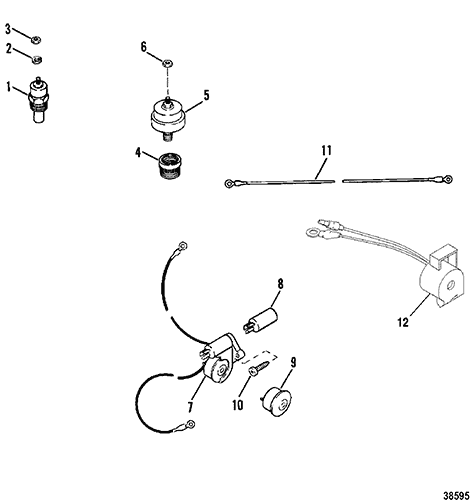

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AR-150)
- Alternator (Mando AV155603)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'Y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SWITCH ASSEMBLY | 1 | NUT CONNECTION | |||||
| 2 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 1 | NUT CONNECTION | |||||
| 3 | 11-45076 | NUT, (#10-32) Brass | 1 | NUT CONNECTION | |||||
| 4 | 22-18021 | FITTING | 1 | This Part is No Longer Available NUT CONNECTION | |||||
| 1 | 48952 | SWITCH, Water Temperature | 1 | 87-806951 | PUSH-ON CONNECTION | ||||
| 4 | 22-805059 | FITTING | 1 | PUSH-ON CONNECTION | |||||
| 5 | 87-805605A1 | SWITCH ASSEMBLY | 1 | ||||||
| 6 | 11-45076 | NUT, (#10-32) Brass | 1 | ||||||
| 7 | 816492A14 | HOUSING KIT | 1 | 86047A11 | (W/O BULLET CONNECTORS) Please note - this is the new style buzzer, not horn & timer | ||||
| 7 | 816492A14 | HOUSING KIT | 1 | 86047A16 | (WITH BULLET CONNECTORS) Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY, Buzzer Alarm | 1 | ||||||
| 10 | 10-69013 | SCREW, (#10-16 x .880) | 2 | ||||||
| 11 | 84-13760A6 | WIRE ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 12 | 816492A6 | ALARM KIT | 1 |
