Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

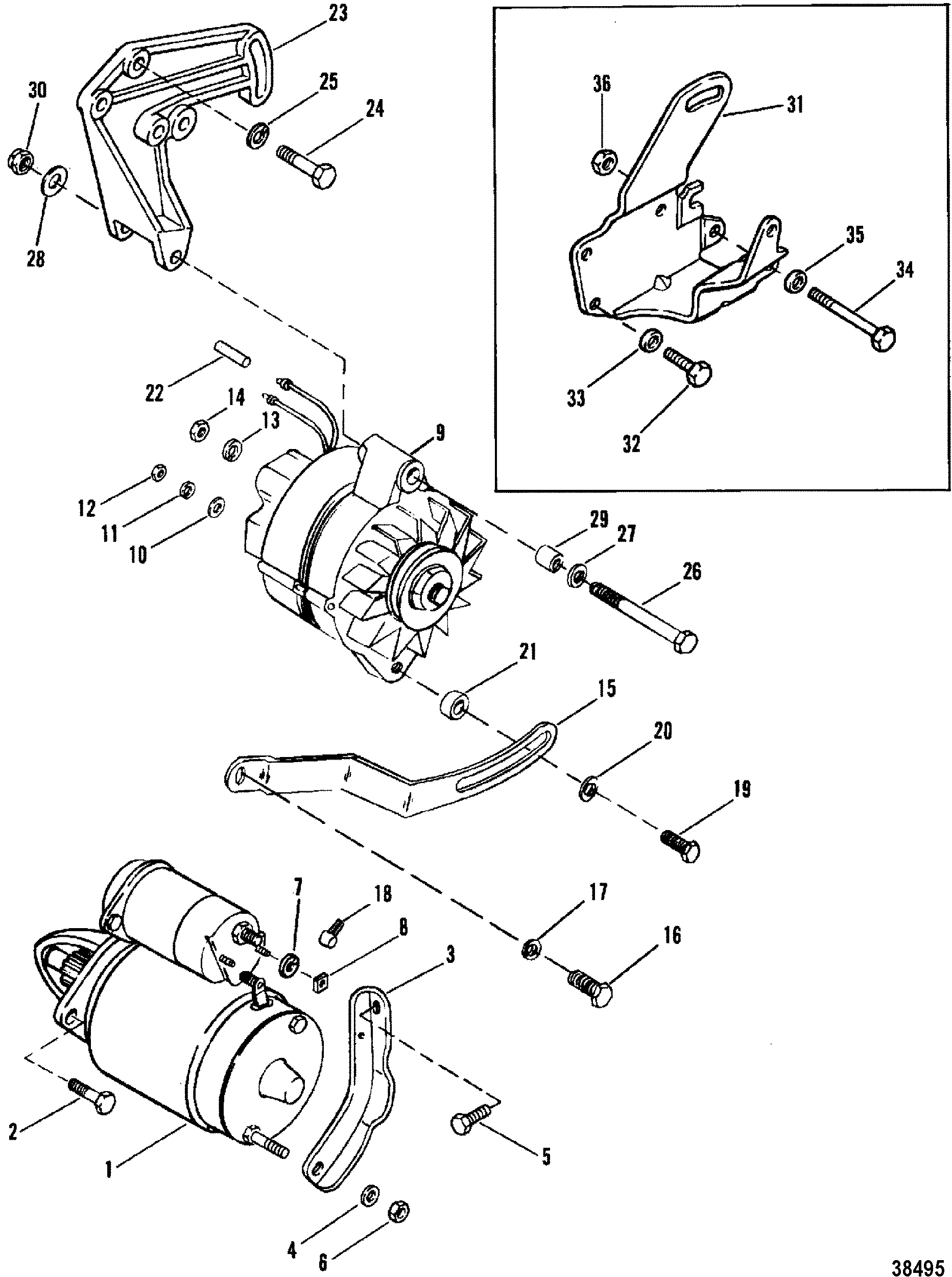

1 |
50-863007A1 |
|
|
|
|
STARTER MOTOR ASSEMBLY |
1 |
50-12177A2 |
12 IN. STARTER MOTOR |
2 |
10-94435001 |
|
|
|
|
BOLT, (.375-16 x 4.600) |
2 |
10-94435 |
12 IN. STARTER MOTOR |
3 |
12404 |
|
|
|
|
BRACE |
1 |
|
This Part is No Longer Available 12 IN. STARTER MOTOR |
4 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
2 |
|
12 IN. STARTER MOTOR |
5 |
10-35765A1 |
|
|
|
|
SCREW AND LOCKWASHER, (.312-18 x .625) |
1 |
|
12 IN. STARTER MOTOR |
1 |
50-863007A1 |
|
|
|
|
STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap |
1 |
50-812604A2 |
8 IN. STARTER MOTOR (PG 200) 3-1/4 IN. DIAMETER END CAP |
2 |
10-8053432 |
|
|
|
|
SCREW, (.375-16 x 4.33) |
2 |
|
3-1/4 IN. DIAMETER END CAP |
6 |
11-15874 |
|
|
|
|
NUT, (M10) |
1 |
|
USE WITH 12 IN. AND 8 IN. STARTER MOTOR |
6 |
11-8267088 |
|
|
|
|
NUT, (.250-20) |
1 |
11-72008 |
USE WITH 12 IN. AND 8 IN. STARTER MOTOR |
7 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
USE WITH 12 IN. AND 8 IN. STARTER MOTOR |
8 |
11-26419 |
|
|
|
|
NUT, (#8-32) Brass |
1 |
|
USE WITH 12 IN. AND 8 IN. STARTER MOTOR |
8 |
11-400211 |
|
|
|
|
NUT, (M5) Stainless Steel |
1 |
|
USE WITH 12 IN. AND 8 IN. STARTER MOTOR |
1 |
50-863007A1 |
|
|
|
|
STARTER MOTOR ASSEMBLY |
1 |
50-806964A3 |
2-7/8 IN. DIAMETER END CAP |
2 |
10-8053432 |
|
|
|
|
SCREW, (.375-16 x 4.33) |
2 |
|
8 IN. STARTER MOTOR (PG260) 2-7/8 IN. DIAMETER END CAP |
6 |
11-806949 |
|
|
|
|
NUT, (M8-1.5) |
1 |
|
2-7/8 IN. DIAMETER END CAP |
8 |
11-400211 |
|
|
|
|
NUT, (M5) Stainless Steel |
1 |
|
2-7/8 IN. DIAMETER END CAP |
9 |
817119A4 |
|
|
|
|
ALTERNATOR ASSEMBLY, (55 Ampere) |
1 |
92497A3 |
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA |
10 |
12-96457 |
|
|
|
|
WASHER, Phenolic (.27 x .81 x .062) |
1 |
|
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA |
11 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA |
12 |
11-79989 |
|
|
|
|
NUT, (#10-24) Stainless Steel |
1 |
|
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA |
13 |
13-21272 |
|
|
|
|
LOCKWASHER, (.250) |
1 |
|
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA |
14 |
11-64015 |
|
|
|
|
NUT, (.250-20) |
1 |
|
MANDO #AR-150 MOTOROLA #8MR2039K PRESTOLITE #8EM2003KA |
9 |
817119A4 |
|
|
|
|
ALTERNATOR |
1 |
|
MANDO #AC-155603 |
10 |
12-96457 |
|
|
|
|
WASHER, Phenolic (.27 x .81 x .062) |
1 |
|
MANDO #AC-155603 |
11 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
MANDO #AC-155603 |
12 |
11-79989 |
|
|
|
|
NUT, (#10-24) Stainless Steel |
1 |
|
MANDO #AC-155603 |
13 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
1 |
|
MANDO #AC-155603 |
14 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
1 |
|
MANDO #AC-155603 |
15 |
85013T |
|
|
|
|
BRACE |
1 |
|
|
16 |
10-98261 |
|
|
|
|
SCREW, (.375-16 x .750) |
1 |
|
(ALPHA ENGINES) |
16 |
10-26487 |
|
|
|
|
SCREW, (.375-16 x 1.12) |
1 |
|
(BRAVO ENGINES) |
17 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
1 |
|
(BRAVO ENGINES) |
18 |
85-79695T |
|
|
|
|
BOOT, Insulator - Black |
1 |
85-79695 |
|
19 |
10-29198 |
|
|
|
|
SCREW AND LOCKWASHER, (.312-18 x .875) |
1 |
|
|
20 |
12-26168 |
|
|
|
|
WASHER |
1 |
|
|
21 |
23-52095 |
|
|
|
|
SPACER |
1 |
|
(EARLY MODELS) |
22 |
5790811 |
|
|
|
|
SLEEVE, (10.00 Inches Bulk) |
2 |
|
|
23 |
87115A1 |
|
|
|
|
BRACKET |
1 |
|
This Part is No Longer Available CAST MOUNTING BRACKET |
24 |
10-37612 |
|
|
|
|
SCREW, (.375-16 x 1.250) |
2 |
|
CAST MOUNTING BRACKET |
24 |
10-34354 |
|
|
|
|
SCREW, (.375-16 x 1.50) |
1 |
|
CAST MOUNTING BRACKET |
25 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
3 |
|
CAST MOUNTING BRACKET |
26 |
10-48308 |
|
|
|
|
SCREW, (.375-24 x 3.750) |
1 |
|
CAST MOUNTING BRACKET |
27 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
1 |
|
CAST MOUNTING BRACKET |
28 |
|
|
|
|
WASHER |
1 |
|
CAST MOUNTING BRACKET |
29 |
23-33186 |
|
|
|
|
BUSHING |
1 |
|
CAST MOUNTING BRACKET |
30 |
11-23161 |
|
|
|
|
NUT, (.375-24) |
1 |
|
CAST MOUNTING BRACKET |
31 |
15083T |
|
|
|
|
BRACKET |
1 |
|
This Part is No Longer Available STAMPED MOUNTING BRACKET |
32 |
10-37612 |
|
|
|
|
SCREW, (.375-16 x 1.250) |
2 |
|
STAMPED MOUNTING BRACKET |
33 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
2 |
|
STAMPED MOUNTING BRACKET |
32 |
10-34353 |
|
|
|
|
SCREW, (.375-16 x 1.00) |
1 |
|
STAMPED MOUNTING BRACKET |
33 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
1 |
|
STAMPED MOUNTING BRACKET |
32 |
10-48424 |
|
|
|
|
SCREW, (.375-16 x 1.620) |
1 |
|
STAMPED MOUNTING BRACKET |
33 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
1 |
|
STAMPED MOUNTING BRACKET |
34 |
10-56743 |
|
|
|
|
SCREW, (.375-24 x 3.125) |
1 |
|
STAMPED MOUNTING BRACKET |
35 |
|
|
|
|
WASHER |
1 |
|
STAMPED MOUNTING BRACKET |
36 |
11-23161 |
|
|
|
|
NUT, (.375-24) |
1 |
|
STAMPED MOUNTING BRACKET |
