5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Standard Cooling System (Design II)

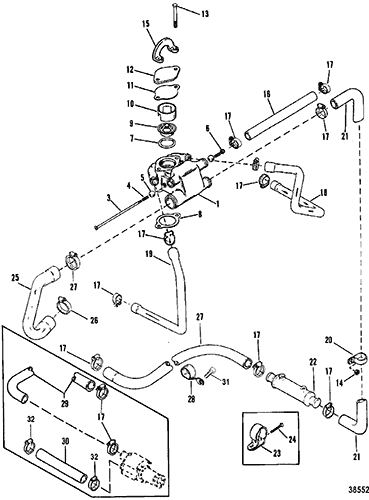

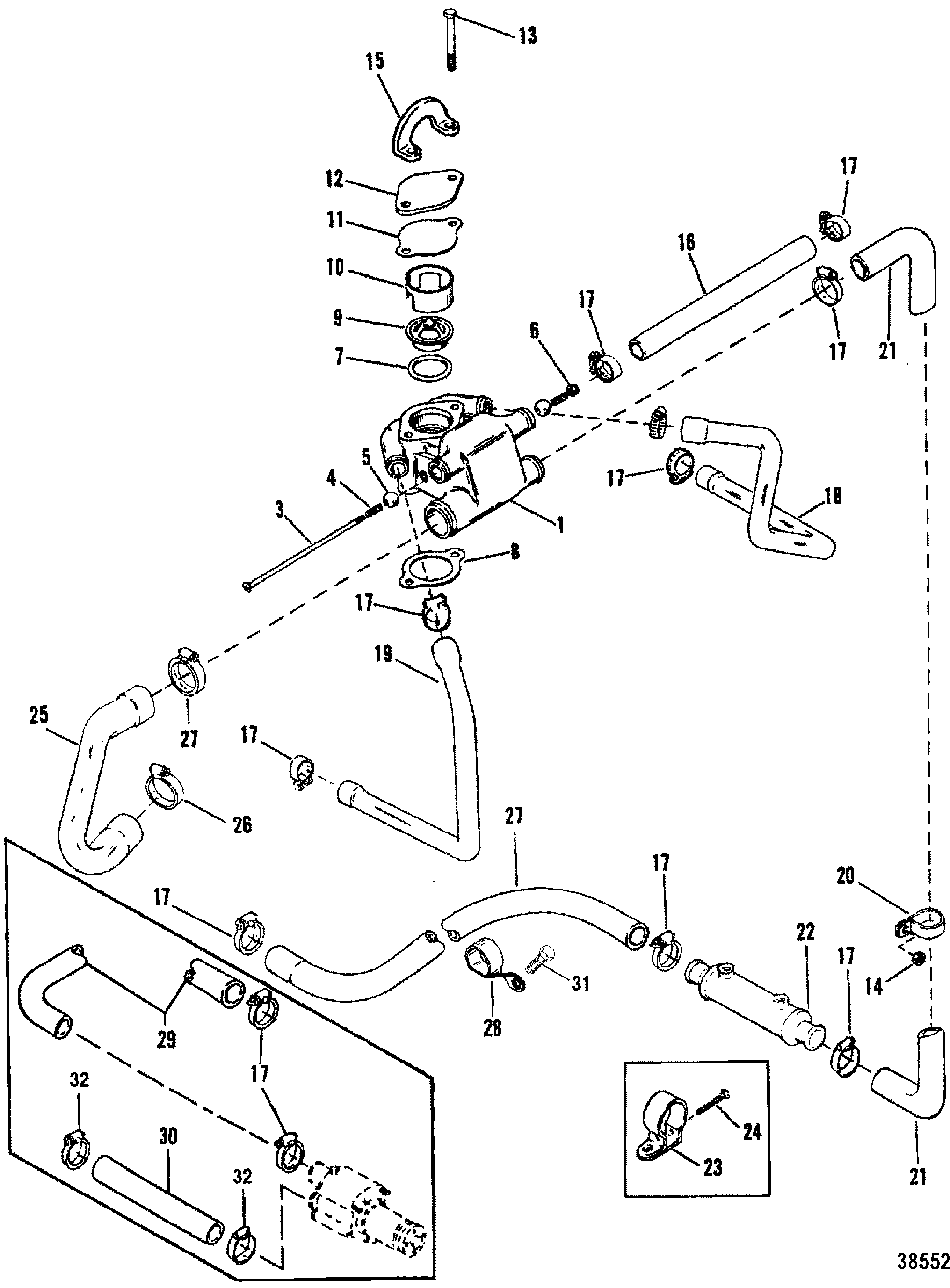

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AR-150)
- Alternator (Mando AV155603)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'Y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16413A9 | HOUSING ASSEMBLY, Thermostat | 1 | This Part is No Longer Available | |||||
| 1 | 16413A3 | HOUSING ASSEMBLY, Thermostat | 1 | This Part is No Longer Available | |||||
| 3 | 10-17989 | SCREW, (#10-32 x 8.600) | 1 | USE WITH CHECK BALLS REF. #5 | |||||
| 4 | 24-75533 | SPRING | 2 | USE WITH CHECK BALLS REF. #5 | |||||
| 5 | 30-98475 | BALL, Nylon | 2 | USE WITH CHECK BALLS REF. #5 | |||||
| 6 | 11-29488 | 700-21163 | NUT, (#10-32) | 1 | USE WITH CHECK BALLS REF. #5 No longer made, limited availability | ||||
| 7 | 25-30224 | 676-9-76501 | 700-82250 | O-RING, (1.859 x .139) | 1 | 4 | |||
| 8 | 27-530451 | GASKET | 1 | 4 | |||||
| 9 | 807252T1 | THERMOSTAT | 1 | 8072521 | (140 DEGREES) | ||||
| 9 | 807252T2 | THERMOSTAT, 71°C (160°F) | 1 | 8072522 | BODENSEE | ||||
| 10 | 23-806922 | SLEEVE | 1 | ||||||
| 11 | 27-331792 | GASKET | 1 | 4 | |||||
| 12 | 17494A1 | COVER KIT | 1 | ||||||
| 13 | 10-60410 | SCREW, (.375-16 x 4.250) | 2 | ||||||
| 14 | 11-29250 | NUT, (.312-24) | 1 | ||||||
| 15 | 12552 | LIFTING EYE | 1 | ||||||
| 16 | 32-8M0062614 | HOSE, (48.00 Inches Bulk) | 2 | 32-3322070 | (STARBOARD/PORT) (ALPHA ONLY) (USE WITH CAST IRON EXHAUST ELBOW) | ||||
| 16 | 32-8M0062614 | HOSE, (48.00 Inches Bulk) | 1 | 32-3322070 | (STARBOARD) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW) | ||||
| 16 | 32-817435 | HOSE | 1 | (PORT) (BRAVO AND 350 MAGNUM ALPHA) (USE WITH STAINLESS STEEL EXHAUST ELBOW) | |||||
| 17 | 54-815504220 | CLAMP, Worm Gear | AR | 3 | |||||
| 18 | 32-160211 | HOSE (PORT) | 1 | ||||||
| 19 | 32-871171 | HOSE (STARBOARD) | 1 | ||||||
| 20 | 54-47715 | CLIP | 1 | ||||||
| 21 | 32-16012 | HOSE | 1 | ||||||
| 22 | 99356A2 | COOLER ASSEMBLY | 1 | ||||||
| 23 | 65970T1 | BRACKET | 1 | ||||||
| 24 | 10-41408 | SCREW, (#10-32 x 1.50) | 1 | ||||||
| 25 | 32-861590A05 | HOSE | 1 | 32-806825 | |||||
| 26 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 2 | ||||||
| 27 | 32-96246A4 | HOSE | 1 | ALPHA | |||||
| 28 | 54-64489 | CLAMP | 1 | ALPHA No longer made, limited availability | |||||
| 29 | 32-887952 | HOSE | 1 | BRAVO | |||||
| 30 | 32-865672079 | HOSE, (96.00 Inches Bulk) | 1 | 32-1743579 | BRAVO | ||||
| 31 | 10-98261 | SCREW, (.375-16 x .750) | 1 | ||||||
| 32 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 2 |
