5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Power Steering Components (Stamped Mounting Bracket)

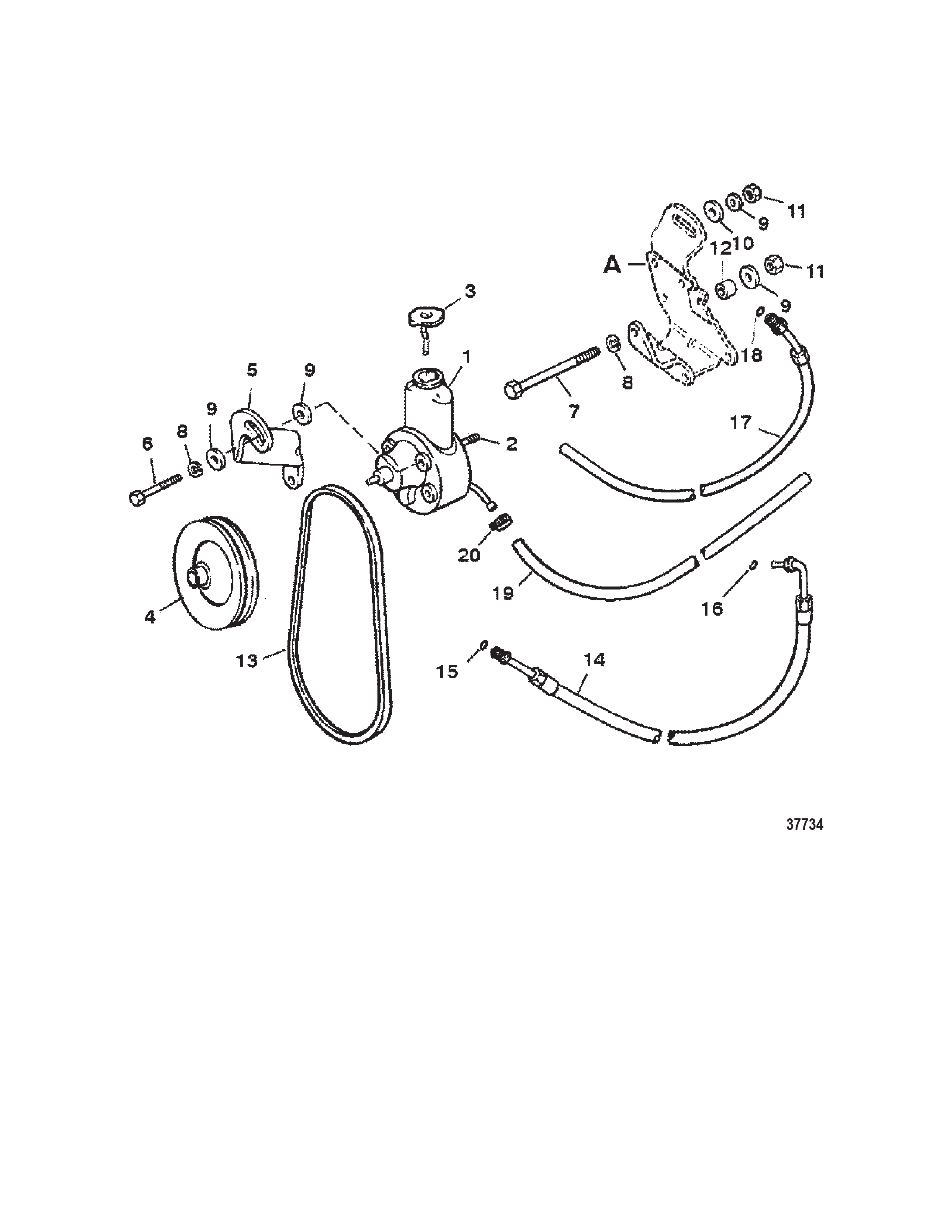

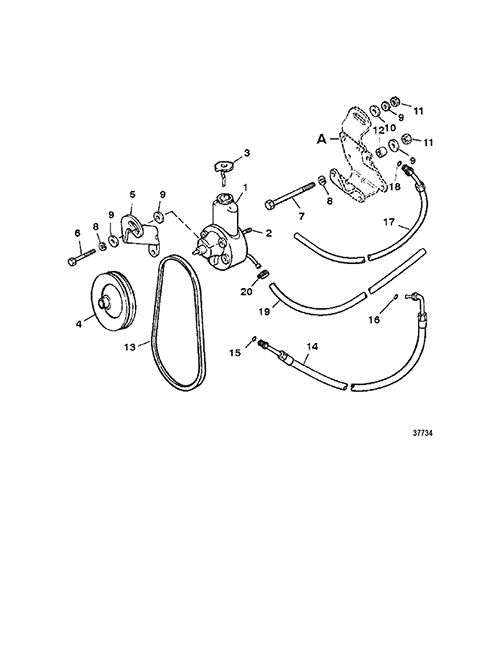

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AR-150)
- Alternator (Mando AV155603)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'Y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref # | Part Class | Part Number | Description | Comments | Qty | Note |
|---|---|---|---|---|---|---|
| 1 | 0000 | 16792A1 | PUMP ASSEMBLY | 1 | ||
| 2 | 0016 | OEM: 525-16-41877 | STUD (M10) | 2 | ||
| 3 | 0036 | OEM: 525-36-95805 | CAP | 1 | ||
| 4 | 0000 | OEM: 525-73873A1, Sierra: 676-18-8227 | PULLEY | 1 | ||
| 5 | 0000 | OEM: 525-15082T | BRACE | 1 | ||
| 6 | 0010 | OEM: 525-10-40001192 | SCREW (M10 x 25) | 1 | ||
| 7 | 0010 | OEM: 525-10-40001188 | SCREW (M10 x 20) | 1 | ||
| 8 | 0013 | OEM: 525-13-400248 | LOCKWASHER (M10) | 2 | ||
| 9 | 0023 | OEM: 525-23-72057 | SPACER (1.00 Outside Diameter x .125 x Thick) | 4 | ||
| 10 | 0012 | OEM: 525-12-28105 | WASHER | 1 | ||
| 11 | 0011 | OEM: 525-11-90517 | NUT (M10) | 2 | ||
| 12 | 0023 | OEM: 525-23-45353 | SPACER | 1 | ||
| 13 | 0057 | 816295T | V BELT | 1 | ||
| 14 | 0032 | 90494 | HOSE (FITTINGS ON BOTH ENDS) | [0A000000] THRU [0F114777] | 1 | |
| 14 | 0032 | OEM: 525-32-80622216 | HOSE (FITTINGS ON BOTH ENDS) | [0F114778] THRU [0Z999999] | 1 | |
| 15 | 0025 | OEM: 525-25-89879 | O-RING (.301 x .064) | [0A000000] THRU [0F114777] | 1 | |
| 15 | 0025 | OEM: 525-25-89879 | O-RING (.301 x .064) | [0F114778] THRU [0Z999999] | 1 | |
| 16 | 0025 | OEM: 525-25-806232 | O-RING (.239 x .064) | [0F114778] THRU [0Z999999] | 1 | |
| 17 | 0032 | OEM: 525-32-9884339 | HOSE ASSEMBLY (72.00 Inches Bulk) (FITTING ON ONE END) | [0A000000] THRU [0F114777] | 1 | |
| 17 | 0032 | OEM: 525-32-80622142 | HOSE ASSEMBLY (84.00 Inches Bulk) Return (FITTING ON ONE END) | [0F114778] THRU [0Z999999] | 1 | |
| 18 | 0025 | OEM: 525-25-89879 | O-RING (.301 x .064) | [0F114778] THRU [0Z999999] | 1 | |
| 19 | 0032 | 5251914 | HOSE (53.00 Inches Bulk) Pump to Oil Cooler | 1 | ||
| 20 | 0054 | OEM: 525-54-815504206 | CLAMP Worm Gear | 3 |
