5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Shift Bracket (Alpha Engines)

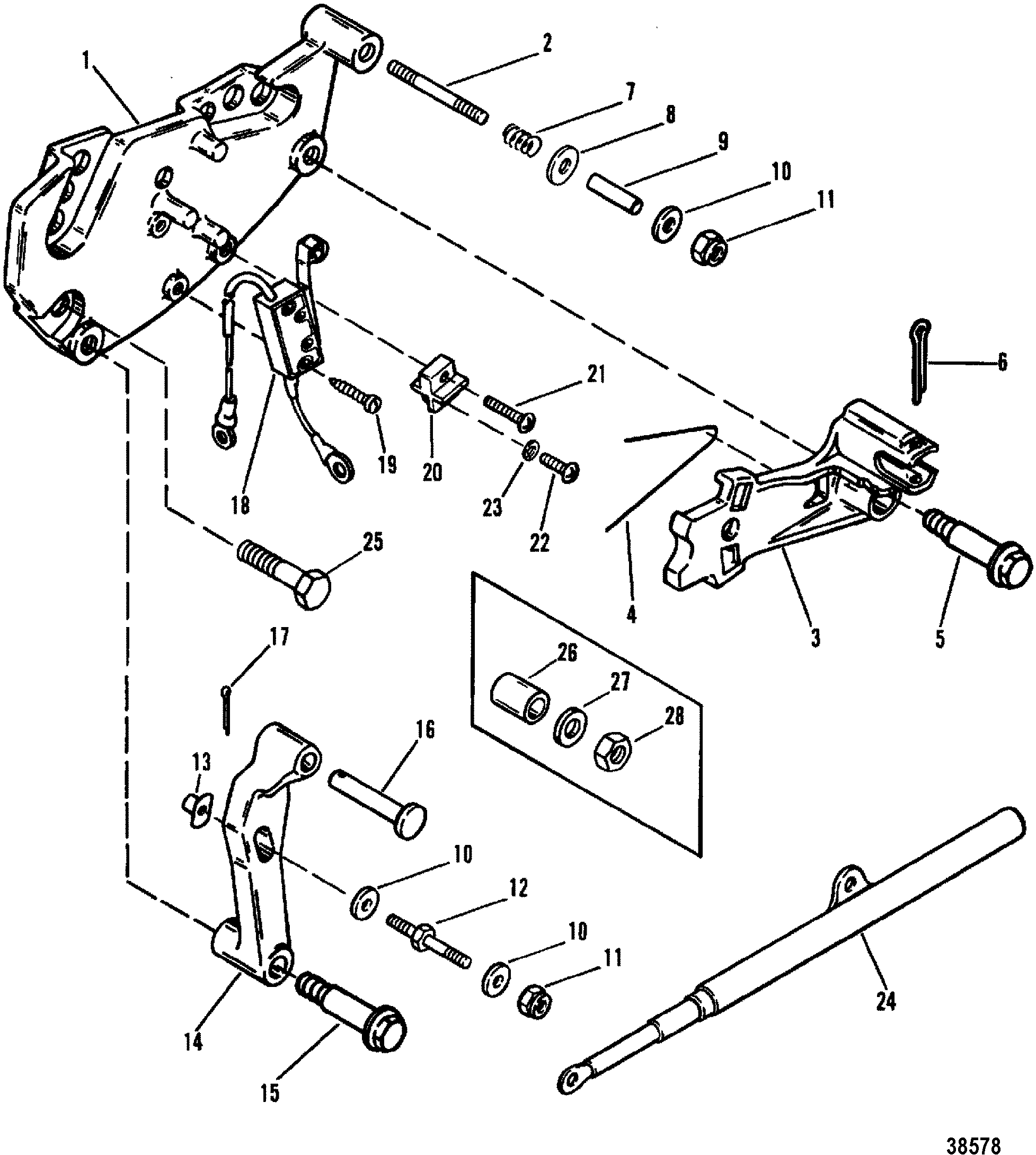

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AR-150)
- Alternator (Mando AV155603)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'Y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY | 1 | 99237A10 | |||||
| 2 | 16-865154A02 | STUD, (.250-20/.250-28 x 2.120) | AR | 16-987981 | 3 | ||||
| 2 | 16-8140021 | STUD, (.250 x 2.870) | AR | No longer made, limited availability 3 | |||||
| 3 | 13051A4 | LEVER ASSEMBLY, Actuating | 1 | This Part is No Longer Available | |||||
| 4 | 24-862850 | SPRING | 1 | 24-45599 | |||||
| 5 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 6 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 7 | 24-98880 | SPRING | 1 | ||||||
| 8 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 1 | ||||||
| 9 | 16-8140021 | SPACER (USE WHERE APPLICABLE) | 1 | 23-814003 | |||||
| 10 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 11 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 12 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 13 | 11-63341 | TEE NUT | 1 | ||||||
| 14 | 13898T06 | LEVER ASSEMBLY, Shift | 1 | 13898A3 | |||||
| 15 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 16 | 17-814001 | PIN, Clevis | 1 | ||||||
| 17 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 18 | 39670A28 | SWITCH ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 18 | 87-19752A6 | SWITCH ASSEMBLY, Cut Out | 1 | This Part is No Longer Available | |||||
| 19 | 10-30902 | SCREW, (#6-32 x .750) | 2 | ||||||
| 20 | 86-66986 | TERMINAL BLOCK | 1 | This Part is No Longer Available USE WHERE APPLICABLE | |||||
| 21 | 10-96113 | SCREW, (#10-32 x .880) Stainless Steel | 1 | USE WHERE APPLICABLE | |||||
| 22 | 10-73287 | SCREW, (#10-32 x .380) | 1 | USE WHERE APPLICABLE | |||||
| 23 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | USE WHERE APPLICABLE | |||||
| 24 | 813995A1 | GUIDE ASSEMBLY, Spring | 1 | ||||||
| 25 | 10-657461 | SCREW AND LOCKWASHER, (.250-20 x .625) | 3 | (USE WITH CAST IRON ELBOWS) | |||||
| 26 | 23-806981 | SPACER | 3 | USE WITH STAINLESS STEEL ELBOWS | |||||
| 27 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | USE WITH STAINLESS STEEL ELBOWS | |||||
| 28 | 11-64015 | NUT, (.250-20) | 3 | USE WITH STAINLESS STEEL ELBOWS |
