5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Driveshaft Extension Components (Jackshaft Models)

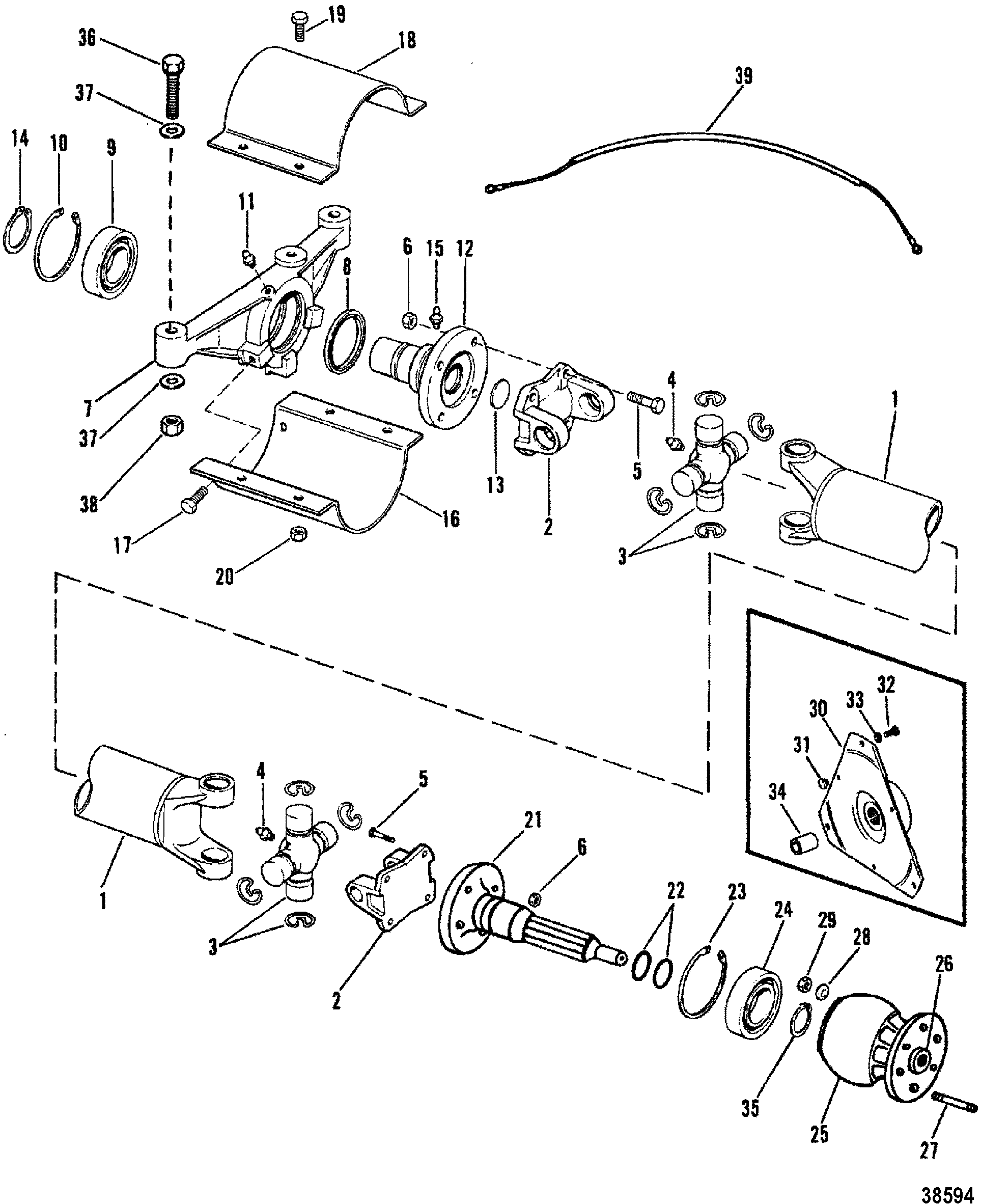

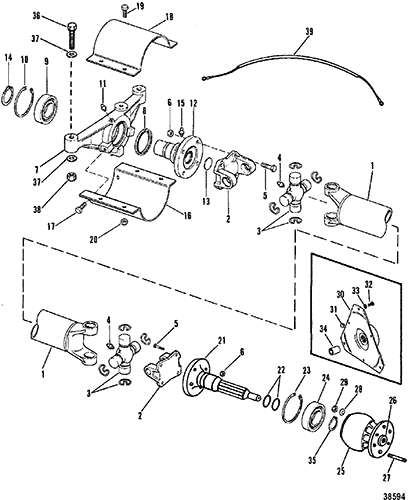

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando AR-150)
- Alternator (Mando AV155603)
- Alternator (Motorola 8MR2039K)
- Alternator (Prestolite 8EM2003KA)
- Audio Warning System
- Bodensee Parts
- Carburetor (Mercarb - 2 Barrel)
- Carburetor (Rochester - 4 Barrel)
- Carburetor (Weber)
- Carburetor-Throttle Linkage (2 Barrel)
- Carburetor-Throttle Linkage (Rochester - 4 Bbl)
- Carburetor-Throttle Linkage (Weber - 4 Barrel)
- Crankshaft And Flywheel
- Cylinder Block And Camshaft (Flat Rollers)
- Cylinder Block And Camshaft (Roller Lifters)
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Jackshaft Models)
- Electrical Components (Ign. Module Mounted On Distributor)
- Electrical Components (Ign. Module Mounted On Exh. Elbow)
- Engine Mounting (Cast Bracket)
- Engine Mounting (Stamped Bracket)
- Exhaust Manifold And Exh. Elbow (Stainless Steel Exh. Elb)
- Exhaust Manifold And Exhaust Elbow (Cast Iron Exh. Elbow)
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover (Design I)
- Intake Manifold And Front Cover (Design II)
- Mercathode Components
- Oil Filter And Adaptor (0F114689 and Below)
- Oil Filter And Adaptor (0F114690 and Up)
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components (Cast Mounting Bracket)
- Power Steering Components (Stamped Mounting Bracket)
- Sea Water Pump Assembly (Bravo)
- Sea Water Pump Ass'Y (Closed Cooling Sys-Jackshaft Mdls)
- Shift Bracket (Alpha Engines)
- Shift Bracket (Bravo Engines)
- Standard Cooling System (Design I)
- Standard Cooling System (Design II)
- Standard Cooling System (Design III - Alpha)
- Starter Motor (12 In.)
- Starter Motor (8 In. - 2-7-8 In. Dia. End Cap)(PG 260)
- Starter Motor (8 In. - 3-1-4 In. Dia. End Cap)(PG 200)
- Starter Motor And Alternator
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 45-94819A3 | DRIVESHAFT ASSEMBLY | 1 | This Part is No Longer Available | |||||
| 2 | 52504T | FLANGE, Yoke | 2 | ||||||
| 3 | 61221T | CROSS AND BEARING, With Clips | 2 | 61221 | |||||
| 4 | 22-74036 | FITTING, Grease | 2 | ||||||
| 5 | 10-805159 | SCREW, (.437-20 x 1.500) | 8 | ||||||
| 6 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 8 | |||||
| 7 | 817416A4 | SUPPORT ASSEMBLY | 1 | 42304A2 | |||||
| 8 | 26-93924 | SEAL | 1 | ||||||
| 9 | 30-93944A2 | BEARING | 1 | 30-93944A1 | |||||
| 10 | 53-93914 | RING, Retaining | 1 | ||||||
| 11 | 22-74036 | FITTING, Grease | 1 | ||||||
| 12 | 93908A1 | SHAFT ASSEMBLY (INPUT) | 1 | ||||||
| 13 | 19-93921 | EXPANSION PLUG | 1 | ||||||
| 14 | 53-93915 | RING, Retaining | 1 | ||||||
| 15 | 22-74036 | FITTING, Grease | 1 | ||||||
| 16 | 93918A1 | SHIELD, Lower | 2 | ||||||
| 17 | 10-76926 | SCREW, (.375-16 x .875) | 6 | ||||||
| 18 | 93919A1 | SHIELD, Upper | 2 | ||||||
| 19 | 10-96995 | SCREW, (.375-16 x .880) | 8 | ||||||
| 20 | 11-68411 | NUT, (.375-16) | 8 | No longer made, limited availability | |||||
| 21 | 93906A2 | SHAFT (OUTPUT) | 1 | ||||||
| 22 | 25-25439 | 676-9-76505 | O-RING, (.862 x .103) | 2 | |||||
| 23 | 53-94104 | RING, Retaining | 1 | ||||||
| 24 | 879194A03 | BEARING, Ball | 1 | 30-62780A1 | |||||
| 25 | 49736A3 | COUPLING ASSEMBLY | 1 | This Part is No Longer Available 2 PIECE SEAL | |||||
| 26 | 23-95966 | BUSHING | 1 | This Part is No Longer Available 2 PIECE SEAL | |||||
| 27 | 16-98532A1 | 676-9-72510 | STUD | 6 | 2 PIECE SEAL | ||||
| 28 | 12-34567 | WASHER | 6 | 2 PIECE SEAL | |||||
| 29 | 11-8M2008293 | NUT, (.437-20) | 6 | 11-98533 | 2 PIECE SEAL | ||||
| 30 | 18643A8 | COUPLING ASSEMBLY | 1 | FULL CIRCLE SEAL | |||||
| 31 | 18644 | BUMPER, Rubber | 3 | FULL CIRCLE SEAL | |||||
| 32 | 10-14883 | SCREW, (.375-16 x 1.12) | 3 | FULL CIRCLE SEAL | |||||
| 33 | 12-13510 | WASHER | 3 | FULL CIRCLE SEAL | |||||
| 34 | 23-49126 | BUSHING | 1 | FULL CIRCLE SEAL | |||||
| 35 | 53-94103 | RING | 1 | No longer made, limited availability | |||||
| 36 | 10-57053 | SCREW, (.500-20 x 4.500) | 2 | ||||||
| 37 | 12-42307 | WASHER (SPHERICAL) | 4 | ||||||
| 38 | 11-898832 | NUT, (.500-20) | 2 | 11-28040 | |||||
| 39 | 84-41575A1 | HARNESS ASSEMBLY | 1 | This Part is No Longer Available |
