5.7L GM 350 V-8 1988-1995 - Serial 0B525982 Thru 0F600999 - Engine Mounting (Stamped Bracket)

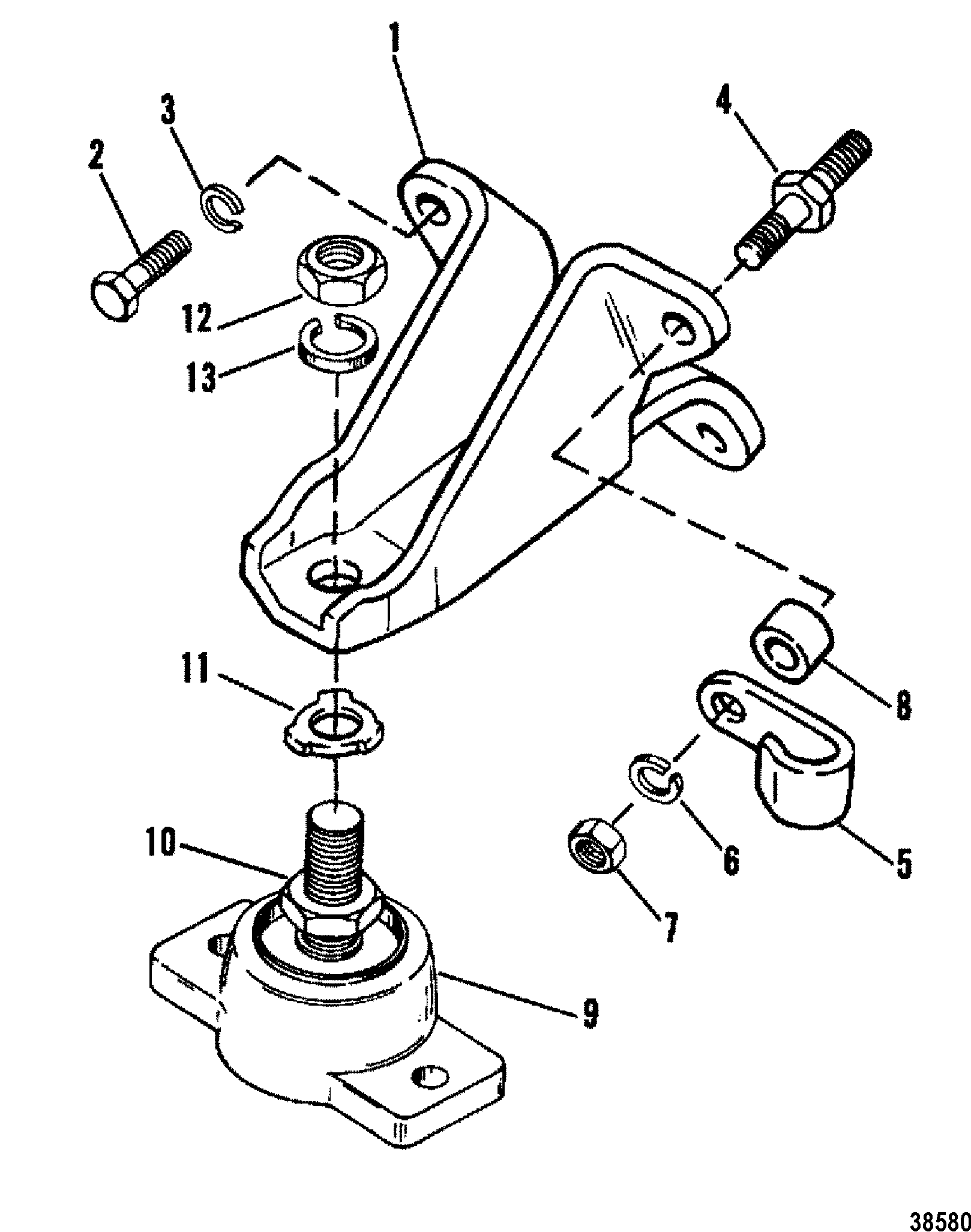

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79550A1



BRACKET ASSEMBLY (FRONT) 2 44364A1
2 10-34353


525-10-34353 SCREW, (.375-16 x 1.00) 5

3 13-35048

700-21495
LOCKWASHER, (.375) 5

4 16-64066



STUD, (.375-16 x 2.750) Special 1
STARBOARD
5 54-92850



CLAMP 1
STARBOARD
6 13-35048

700-21495
LOCKWASHER, (.375) 2
STARBOARD
7 11-32219



NUT, (.375-16) 1
STARBOARD
8 23-57369



SPACER 1
STARBOARD
9 814263A1



BASE ASSEMBLY 2

10 11-816331



NUT, (.750-16) 2

11 14-12657



TAB WASHER 2

12 11-859126



NUT 2 11-49252
13 13-68102



LOCKWASHER, (.750) 2
