Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Compact Hydralic Steering Actuator

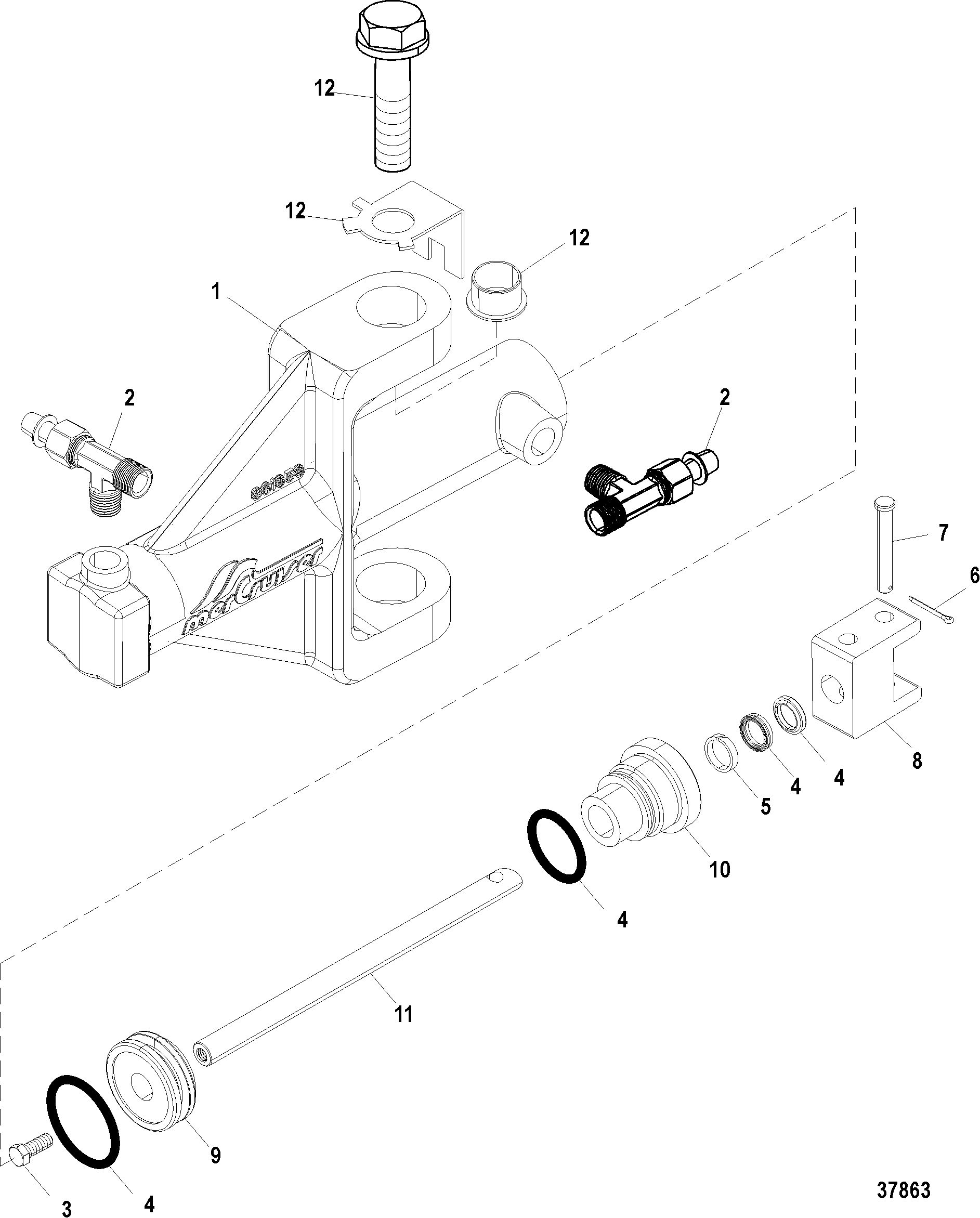

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861659T1 | CYLINDER ASSEMBLY, Compact Hydraulic Steering | 1 | ||||||
| 2 | 22-861971A2 | FITTING ASSEMBLY, Bleeder Valve | 2 | ||||||
| 3 | 10-808027 | SCREW | 1 | ||||||
| 4 | 25-861965A1 | SEAL KIT | 1 | ||||||
| 5 | NSS | NOT SOLD SEPARATE, Bushing | 1 | This Part is not sold separately | |||||
| 6 | 18-46950 | COTTER PIN | 2 | ||||||
| 7 | 17-15878 | PIN, Clevis | 2 | ||||||
| 8 | 8616601 | CLEVIS | 1 | ||||||
| 9 | NSS | NOT SOLD SEPARATE, Piston | 1 | This Part is not sold separately | |||||
| 10 | NSS | NOT SOLD SEPARATE, End Cap | 1 | This Part is not sold separately | |||||
| 11 | NSS | NOT SOLD SEPARATE, Clevis Rod | 1 | This Part is not sold separately | |||||
| 12 | 862018A1 | BUSHING KIT, Pivot | 1 |
