Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Power Trim Cylinder Repair Kits

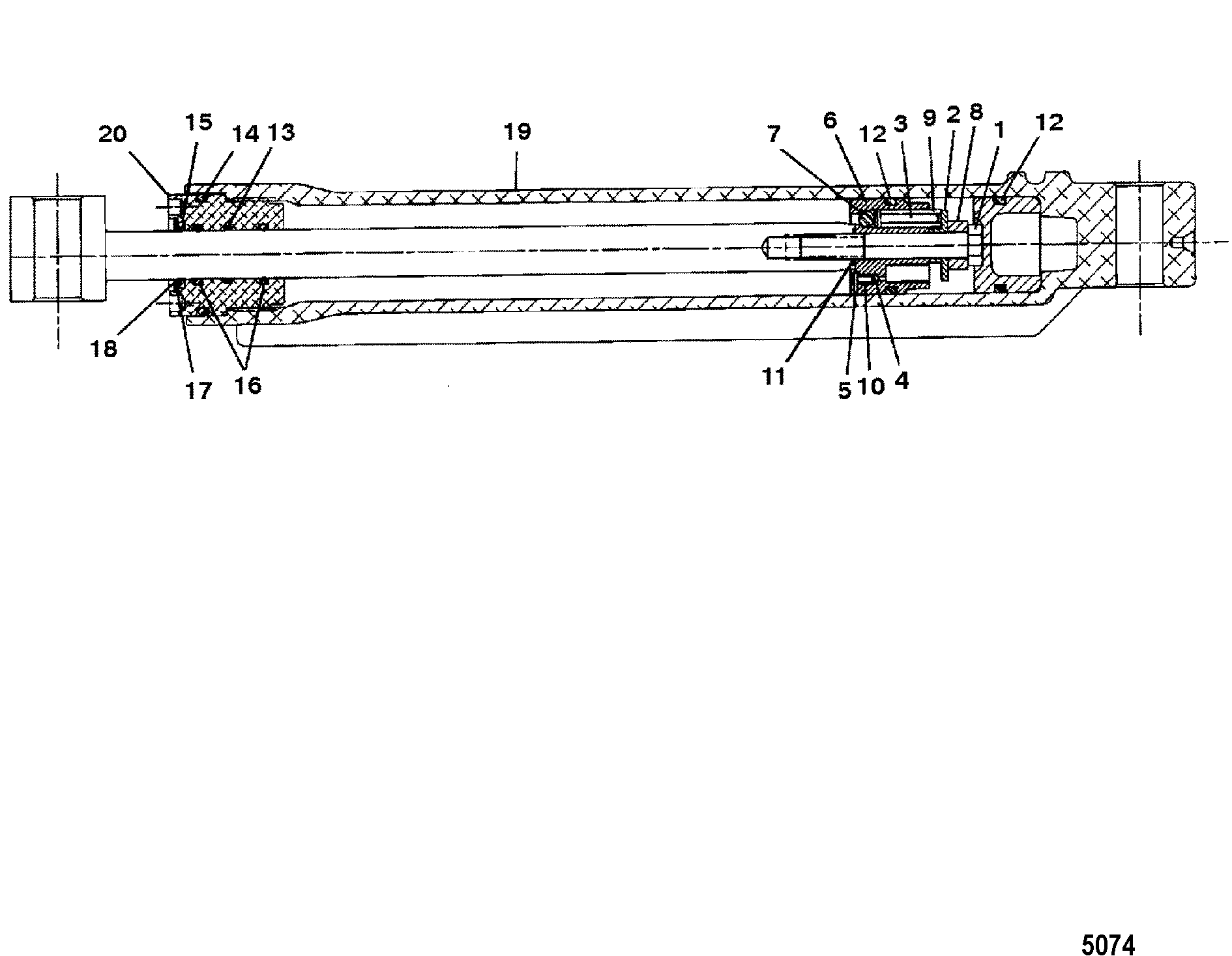

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Note: DO NOT SUBSTITUTE O RINGS AS THESE ARE OF SPECIAL MANUFACTURED MATERIAL
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 87399A3

700-26580
OVERHAUL KIT 1
1 NSS



NOT SOLD SEPARATE, SCREW 1
This Part is not sold separately
2 NSS



NOT SOLD SEPARATE, SPRING SEAT 1   This Part is not sold separately
3 NSS



NOT SOLD SEPARATE, VALVE SEAT 3
This Part is not sold separately
4 NSS



NOT SOLD SEPARATE, STEEL BALL (.109 DIA.) 1   This Part is not sold separately
5 NSS



NOT SOLD SEPARATE, SPRING PIN 1   This Part is not sold separately
6 NSS



NOT SOLD SEPARATE, SHOCK PISTON 1   This Part is not sold separately
7 NSS



NOT SOLD SEPARATE, STEEL BALL (.250 DIA.) 3   This Part is not sold separately
8 NSS



NOT SOLD SEPARATE, SPACER 1   This Part is not sold separately
9 NSS



NOT SOLD SEPARATE, COMPRESSION SPRING 3   This Part is not sold separately
10 NSS



NOT SOLD SEPARATE, SPRING 1   This Part is not sold separately
- 25-87400A2

700-87400
SEAL KIT 1
11 NSS



NOT SOLD SEPARATE, O-RING 1   This Part is not sold separately
12 NSS



NOT SOLD SEPARATE, O-RING 2   This Part is not sold separately
13 NSS



NOT SOLD SEPARATE, SPRING 2   This Part is not sold separately
14 NSS



NOT SOLD SEPARATE, O-RING 1   This Part is not sold separately
15 NSS



NOT SOLD SEPARATE, SCRAPER ROD 1   This Part is not sold separately
16 NSS



NOT SOLD SEPARATE, O-RING 2   This Part is not sold separately
17 NSS



NOT SOLD SEPARATE, WASHER 1   This Part is not sold separately
18 NSS



NOT SOLD SEPARATE, RETAINING RING 1   This Part is not sold separately
19 815935T

700-26531
TUBE 1   (PORT CYLINDER)
19 815954T

700-26521
TUBE 1   (STARBOARD CYLINDER)
20 806191T

700-11610
CAP 2
