Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Continuity Kit

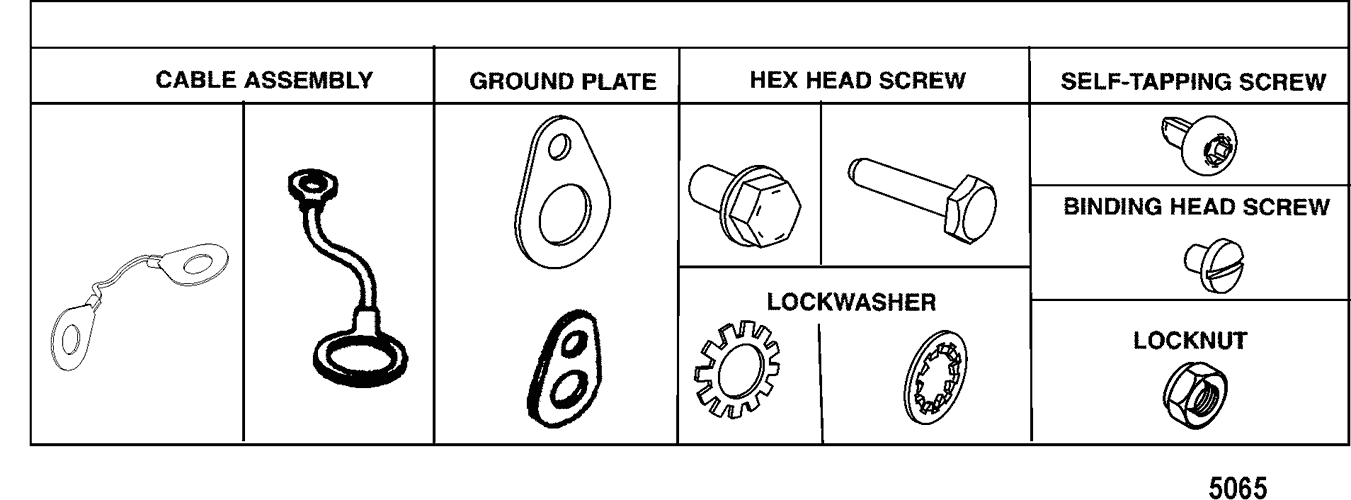

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 99940A2 | CONTINUITY KIT | 1 | ||||||
| _ | 10-807754 | SCREW, (#10-24 x .38) | 7 | ||||||
| _ | 847062A1 | BONDING KIT | 3 | ||||||
| _ | 10-24231 | SCREW, (#10-32 x .250) | 1 | ||||||
| _ | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 1 | ||||||
| _ | 10-45862 | SCREW, (#10-32 x .875) | 1 | ||||||
| _ | 11-20190 | NUT, (#10-32) | 1 | ||||||
| _ | 13-58308 | LOCKWASHER, Internal (#10) | 1 | This Part is No Longer Available | |||||
| _ | 13-78968 | 676-9-78144 |
LOCKWASHER, Internal (.250) | 2 | |||||
| _ | 10-85486 | SCREW, (.250-20 x .380) Stainless Steel | 1 | ||||||
| _ | 13-35479 | 525-13-35479 |
LOCKWASHER, (.375) | 1 |
