Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Driveshaft Housing Chart

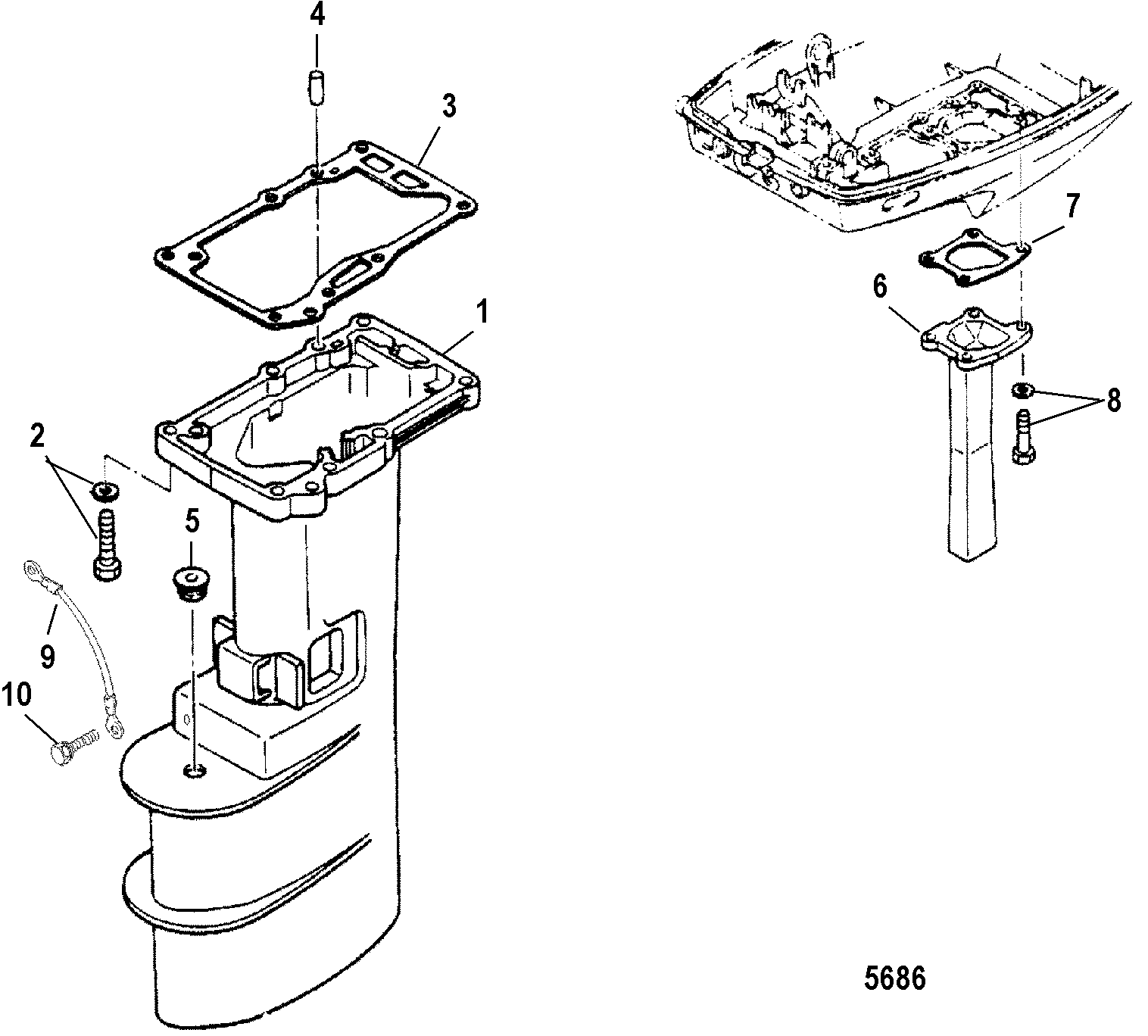

Section Drawing: (Hover or click to view larger)

Untitled Document
Note: FOR REPLACEMENT OF DRIVESHAFT HOUSING ASSEMBLY, COMPLETE, WHICH INCLUDES GEARS, UNIVERSAL JOINTS, ETC
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 1547-861063A6



HOUSING ASSEMBLY, Driveshaft 1 1547-815930A13 (1.94 AND 2.40)
- 1547-861063A8



HOUSING ASSEMBLY, Driveshaft 1 1547-815930A14 (1.81)
- 1547-861063A10



HOUSING ASSEMBLY, Driveshaft 1 1547-815930A15 (1.62)
- 1547-861063A12



HOUSING ASSEMBLY, Driveshaft 1 1547-815930A16 (1.47)
