Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Special Tools-Driveshaft Housing

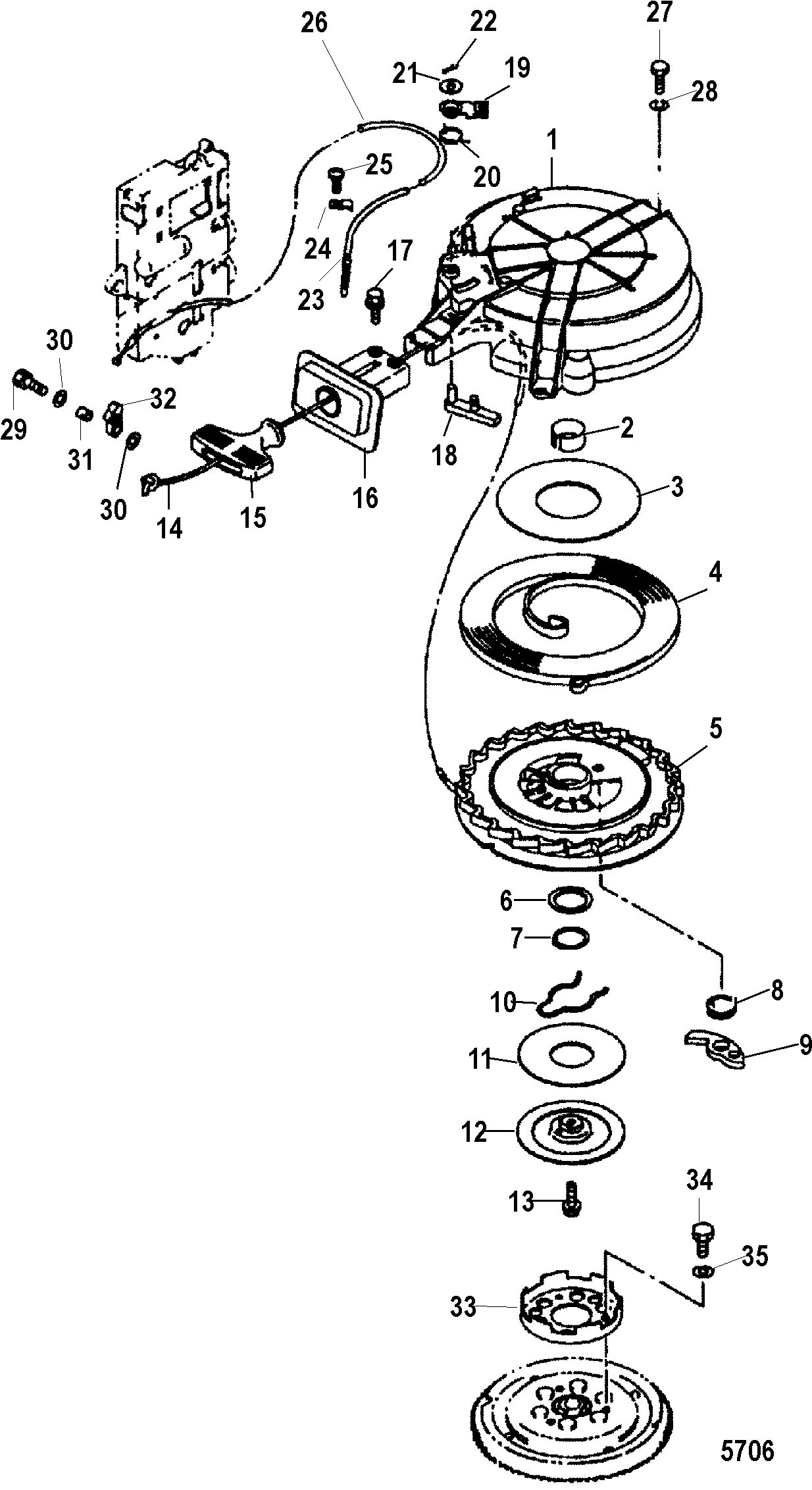

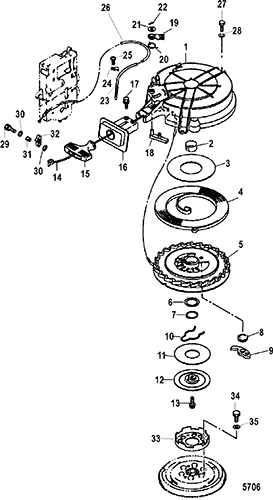

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 91-38756 | ADAPTOR TOOL | 1 | ||||||
| - | 91-17275A1 | DRIVER ASSEMBLY, Bearing And Seal | 1 | ||||||
| - | 91-813653T | DRIVER, Bearing | 1 | ||||||
| - | 91-17273 | REMOVAL TOOL, Bearing | 1 | ||||||
| - | 91-17301T1 | STAND TOOL, Clutch Assembly | 1 | ||||||
| - | 91-90244A1 | DRIVER AND PULLER ASSEMBLY | 1 | ||||||
| - | 91-817570T | DRIVER TOOL, Oil Seal | 1 | ||||||
| - | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| - | 91-66274 | TORQUE WRENCH, (0-150 lb-in) | 1 | ||||||
| - | 91-17256 | WRENCH, U Joint Bearing Retainer | 1 | (STANDARD DRIVE) | |||||
| - | 91-862219A1 | SPANNER WRENCH | 1 | (ALL X DRIVES) | |||||
| - | 91-37241 | 700-90150 | PULLER PLATE | 1 | |||||
| - | 863412 | INSTALLATION TOOL, Universal Joint Seal | 1 |
