| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

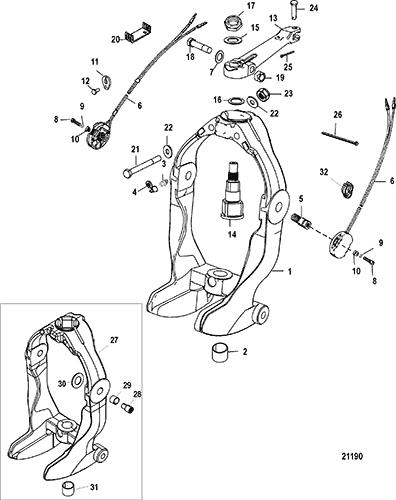

| 1 |
865328A01 |
|
|
|
|
GIMBAL RING ASSEMBLY |
1 |
816461A2 |
(Design-I with Grease Fitting) SN# 0M815638 & Below |
| 2 |
23-99352 |
|
|
|
|
BEARING |
1 |
|
(Design-I with Grease Fitting) SN# 0M815638 & Below |
| 3 |
22-74036 |
|
|
|
|
FITTING, Grease, Grease |
2 |
|
(Design-I with Grease Fitting) SN# 0M815638 & Below |
| 4 |
19-77633Q |
|
|
|
|
LUBRICAP |
2 |
19-77633 |
(Design-I with Grease Fitting) SN# 0M815638 & Below |
| 5 |
77123 |
|
676-9-73130 |
|
|
PIN, Hinge |
2 |
|
(Design-I with Grease Fitting) SN# 0M815638 & Below |
| 6 |
805320A03 |
|
|
|
|
SWITCH ASSEMBLY |
1 |
805320A1 |
|
| NS |
805134A4 |
|
|
|
|
ROTOR KIT |
AR |
|
|
| 7 |
12-861854 |
|
|
|
525-12-861854 |
WASHER |
1 |
12-91964 |
|
| 8 |
10-37978 |
|
|
|
|
SCREW, (#10-32 x .750) Stainless Steel |
4 |
|
|
| 9 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
4 |
|
|
| 10 |
57008 |
|
|
|
|
RETAINER |
4 |
|
|
| 11 |
54-12078 |
|
|
|
|
CLAMP |
1 |
|
|
| 12 |
10-28635 |
|
|
|
|
SCREW, (.250-20 x .620) Stainless Steel |
1 |
|
|
| 13 |
866322A01 |
|
|
|
|
LEVER ASSEMBLY |
1 |
98262A1 |
|
| 14 |
98230A1 |
|
676-9-73131 |
|
|
SHAFT ASSEMBLY |
1 |
|
|
| 15 |
12-85344 |
|
|
|
|
WASHER, (.750 Inside Diameter) |
1 |
|
|
| 16 |
12-98548 |
|
|
|
|
WASHER, (1.125 ) |
1 |
|
|
| 17 |
11-8M2014641 |
|
|
|
|
NUT, (.750-16) |
1 |
11-25599 |
|
| 18 |
10-807204 |
|
|
|
|
SCREW, (.437-20 x 2.00) |
1 |
|
|
| 19 |
11-8M2008293 |
|
|
|
|
NUT, (.437-20) |
1 |
|
|
| 20 |
79146 |
|
|
|
|
RETAINER |
1 |
|
|
| 21 |
10-90126 |
|
|
|
|
SCREW, (.375-24 x 3.750) |
2 |
|
|
| 22 |
12-34931 |
|
|
|
|
WASHER, (.406 x .734 x .063) Stainless Steel |
4 |
|
|
| 23 |
11-862903 |
|
|
|
|
NUT, (.375-24) |
2 |
11-134371 |
|
| 24 |
17-52798 |
|
|
|
|
PIN, Clevis |
1 |
|
(Non Power Steering) |
| 25 |
18-46950 |
|
|
|
|
COTTER PIN |
1 |
|
(Non Power Steering) |
| 26 |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
AR |
54-816311 |
|
| 27 |
865328A01 |
|
|
|
|
GIMBAL RING ASSEMBLY |
1 |
|
(Design-II without Grease Fitting) SN# 0M815639 & Up |
| 28 |
10-86801 |
|
|
|
|
SCREW, Hinge Pin |
2 |
|
(Design-II without Grease Fitting) SN# 0M815639 & Up |
| 29 |
23-847637 |
|
|
|
|
BUSHING |
2 |
|
(Design-II without Grease Fitting) SN# 0M815639 & Up |
| 30 |
12-41721 |
|
|
|
525-12-41721 |
WASHER |
2 |
|
(Design-II without Grease Fitting) SN# 0M815639 & Up |
| 31 |
23-99352 |
|
|
|
|
BEARING |
1 |
|
(Design-II without Grease Fitting) SN# 0M815639 & Up |
| 32 |
54-818557001 |
|
|
|
|
CLAMP |
1 |
|
|
