| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
22-861150T02 |
|
|
|
|
PLUG ASSEMBLY, Bulk Head |
1 |
22-861150A1 |
(Applications With Gear Lube Bottle) |
| 1 |
22-861623A2 |
|
|
|
|
PLUG ASSEMBLY, Bulk Head |
1 |
|
(Applications without Gear Lube Bottle) |
| 2 |
25-201951 |
|
|
|
|
O-RING, (.487 x .103) |
2 |
|
|
| 3 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
1 |
|
(Applications With Gear Lube Bottle Only) |
| 4 |
53-87843 |
|
|
|
|
E RING |
1 |
|
(Included With 861623A 2 Only) |
| 5 |
22-861163 |
|
|
|
|
QUICK CONNECTOR, (90 Degree) |
1 |
|
|
| 6 |
54-415825 |
|
|
|
|
CLAMP, Nylon |
4 |
|
|
| 7 |
32-8M0062600 |
|
|
|
|
HOSE, (54.00 Inches Bulk) |
2 |
32-1940971 |
|
| 8 |
22-16739 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 9 |
54-642351 |
|
|
|
|
J CLIP |
1 |
|
|
| 10 |
54-23567 |
|
|
|
|
CLIP |
1 |
|
|
| 11 |
10-60605 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 12 |
69205 |
|
|
|
|
C WASHER |
1 |
|
|
| 13 |
806293T |
|
|
|
|
BRACKET, Clip (3.0L/3.6L/4.2L Diesel 7.4L/7.4LX/454/502) |
1 |
|

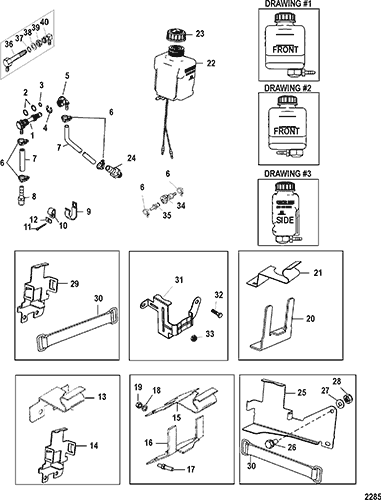

(See Illustration for Proper Part Identification) |
| 14 |
860065A1 |
|
|
|
|
BRACKET KIT, Oil Bottle - (3.0L/3.6L/4.2L Diesel 7.4L/7.4LX/454/502) |
1 |
|
(See Illustration for Proper Part Identification) |
| 15 |
806292T1 |
|
|
|
|
BRACKET |
1 |
|
(See Illustration for Proper Part Identification) |
| 16 |
807025T |
|
|
|
|
BRACKET |
1 |
|
(See Illustration for Proper Part Identification) |
| 17 |
16-805357 |
|
|
|
|
STUD, (.375-16 x 2.130) |
2 |
|
(4.3LX/5.7L/5.7LX)(CARB) |
| 18 |
12-20553 |
|
|
|
|
WASHER, (.406 x .734 x .063) |
2 |
|
|
| 19 |
11-32219 |
|
|
|
|
NUT, (.375-16) |
2 |
|
|
| 20 |
806649T |
|
|
|
|
BRACKET (262 MAG. EFI) |
1 |
|
(See Illustration for Proper Part Identification) |
| 21 |
806650T |
|
|
|
|
BRACKET (5.7L/5.7LX/350 MAG (EFI) 262 MAG. EFI) |
1 |
|
This Part is No Longer Available (See Illustration for Proper Part Identification) |
| 22 |
806193A51 |
|
|
|
|
MONITOR ASSEMBLY, Oil |
1 |
806193A33 |
(FITTING POINTING TOWARD RIGHT SIDE)(SEE DRAWING #1) |
| 22 |
806193A46 |
|
|
|
|
RESERVOIR |
1 |
806193A30 |
(FITTING POINTING TOWARD LEFT SIDE)(SEE DRAWING #2) |
| 22 |
806193A47 |
|
|
|
|
RESERVOIR |
1 |
806193A37 |
(FITTING POINTING TOWARD FRONT SIDE)(SEE DRAWING #3) |
| 23 |
36-8067271 |
|
|
|
|
CAP, Drive Lube Monitor |
1 |
36-808625 |
|
| 24 |
22-808624 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 25 |
807839T1 |
|
|
|
|
BRACKET |
1 |
807839T |
This Part is No Longer Available 4.3L / 4.3LH / 4.3L EFI |
| 26 |
10-657461 |
|
|
|
|
SCREW AND LOCKWASHER, (.250-20 x .625) |
1 |
|
4.3L / 4.3LH / 4.3L EFI |
| 27 |
12-69057 |
|
|
|
|
WASHER, (.281 x .734 x .063) |
1 |
|
4.3L / 4.3LH / 4.3L EFI |
| 28 |
11-8267088 |
|
|
|
|
NUT, (.250-20) |
1 |
11-72008 |
4.3L / 4.3LH / 4.3L EFI |
| 29 |
860065A1 |
|
|
|
|
BRACKET KIT, Oil Bottle |
1 |
|
3.0L / 5.7L / 5.7L EFI / 350 MAG. MPI |
| 30 |
808023T |
|
|
|
|
STRAP, Bracket |
1 |
|
|
| 31 |
865175T |
|
|
|
|
BRACKET |
1 |
|
(4.3L/5.0L/5.7L/350 MAG/MX6.2L)(SEE COMPONENT ILLISTRATION) |
| 32 |
10-828552 |
|
|
|
|
SCREW, (.375-16 x .500) |
1 |
|
|
| 33 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
1 |
|
|
| 34 |
22-865379 |
|
|
|
|
CONNECTOR, Female |
1 |
22-865190 |
|
| 35 |
22-865191 |
|
|
|
|
FITTING, Male |
1 |
|
|
| 36 |
22-18922 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 37 |
25-201951 |
|
|
|
|
O-RING |
1 |
25-20195 |
|
| 38 |
12-861854 |
|
|
|
|
WASHER |
1 |
12-91964 |
|
| 39 |
11-35053 |
|
|
|
|
NUT, (.437-20) |
1 |
|
|
| 40 |
22-18923 |
|
|
|
|
FITTING |
1 |
|
|
