Alpha One (Gen. II) 1998 and Up - Serial 0L100040 and Up - Special Tools-Transom

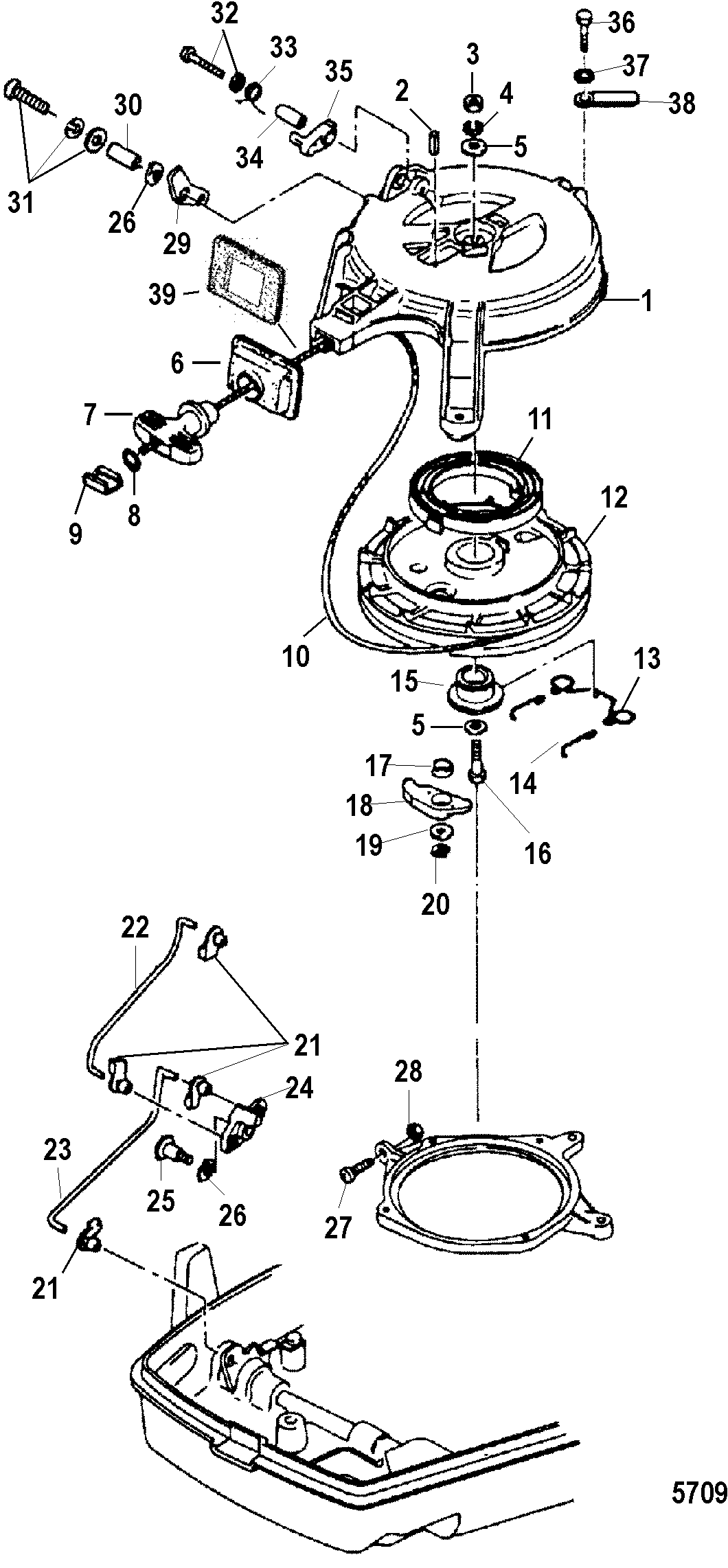

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bell Housing
- Compact Hydralic Steering Actuator
- Continuity Kit
- Driveshaft Housing And Drive Gears
- Driveshaft Housing And Driveshaft
- Driveshaft Housing Chart
- Gear Housing (Driveshaft)(Standard Rotation)
- Gear Housing (Prop Shaft)(Counter Rotation)
- Gear Housing (Prop Shaft)(Standard Rotation)
- Gear Housing Chart(Counter Rotation)
- Gear Housing Chart(Standard Rotation)
- Gear Housing(Driveshaft)(Counter Rotation)
- Gimbal Housing
- Gimbal Housing Chart
- Gimbal Housing Cover
- Gimbal Ring And Steering Lever
- Hydraulic Pump And Bracket
- Mercathode Components
- Oil Reservoir Components
- Power Steering
- Power Trim Cylinder Repair Kits
- Pump-Motor (Bottom Mt Reservoir)(Design I-14336A8)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Pump-Motor (Top Mt Reservoir)(Design I-14336A20)
- Pump-Motor (Top Mt Reservoir)(Design II-14336A25)
- Special Tools-Driveshaft Housing
- Special Tools-Gear Housing (Counter Rotation)
- Special Tools-Gear Housing (Standard Rotation)
- Special Tools-Transom
- Stern Drive Unit Chart
- Transom Plate And Shift Cable
- Trim Cylinders And Hydraulic Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 91-805475A1 | ALIGNMENT TOOL ASSEMBLY, Standard Transom | 1 | ||||||
| - | 91-840965T01 | ALIGNMENT TOOL ASSEMBLY, Integrated Transom | 1 | 91-840965A1 | |||||
| - | 91-31229A7 | PULLER KIT, Bearing | 1 | ||||||
| - | 91-45497A1 | EXPANDER TOOL, Bellows | 1 | ||||||
| - | 91-17263 | LOCATING TOOL, Core Wire | 1 | ||||||
| - | 91-32325T | DRIVER HEAD TOOL | 1 | ||||||
| - | 91-37323 | DRIVER ROD TOOL, Needle Bearings | 1 | ||||||
| - | 91-45497A1 | EXPANDER TOOL, Bellows | 1 | ||||||
| - | 91-78310 | PIN TOOL, Hinge | 1 | ||||||
| - | 11-24156 | NUT, (.625-18) | 1 | ||||||
| - | 91-29310 | PLATE | 2 | ||||||
| - | 91-63616T | PULLER | 1 | ||||||
| - | 91-31229 | SHAFT | 1 | ||||||
| - | 91-17262 | ADJUSTMENT TOOL, Shift Cable Anchor | 1 | ||||||
| - | 91-818162 | INSTALLATION TOOL, Sleeve | 1 | ||||||
| - | 91-818169T | REMOVAL TOOL, Sleeve | 1 | ||||||
| - | 91-34569A1 | PULLER ASSEMBLY, Slide Hammer | 1 | ||||||
| - | 91-43579 | INSERT TOOL, Tapered | 1 | ||||||
| - | 12-34961 | WASHER | 1 |
