600 SCi - Serial 0M952908 Thru 0M962885 - Engine Components (Crankshaft - Piston - Connecting Rods)

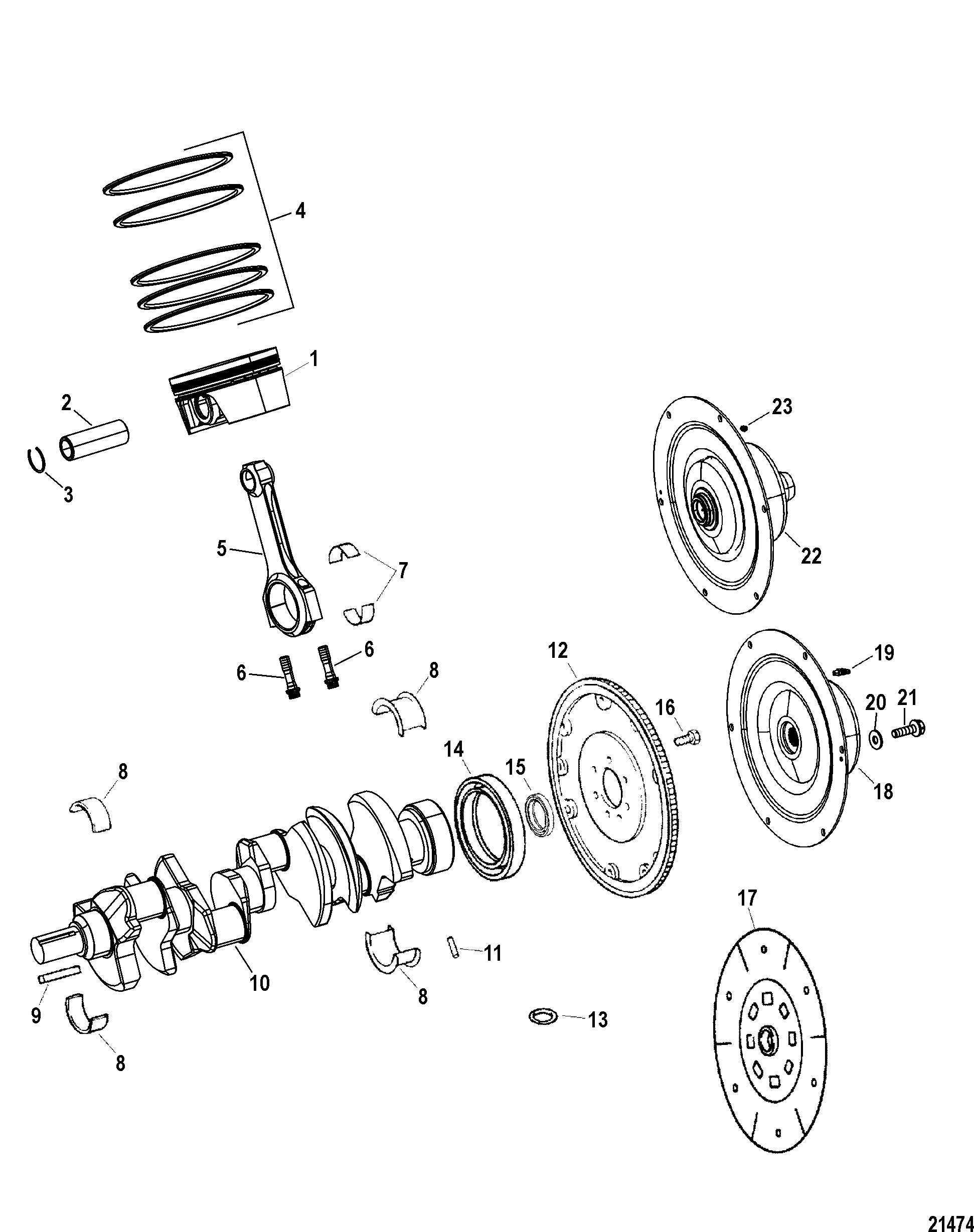

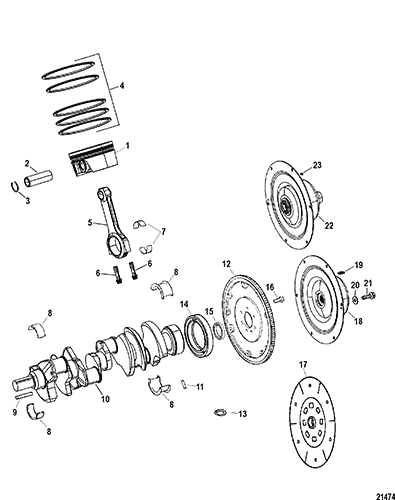

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 798-843231T01



PISTON ASSEMBLY, Standard 8
5
2 41-843006T



PIN, Piston 8
5
3 40-843007



CIRCLIP 16
5
4 39-843008A01



RING SET, Piston - Standard 8
5
5 614-8M8020322



CONNECTING ROD ASSEMBLY 8
5
6 10-8M0000838



SCREW, Special 16
5
7 23-8M0030217



BEARING SET, Connecting Rod - Standard 8 23-841447 SN# 0M952908 THRU 0M958497 5
7 23-8M0030217



BEARING SET, Connecting Rod - Standard 8
SN# 0M958498 & Up 5
7 23-8M0030218



BEARING SET, Connecting Rod - .001 Oversize AR 23-841448 SN# 0M952908 THRU 0M958497
7 23-8M0030218



BEARING SET, Connecting Rod - .001 Oversize AR
SN# 0M958498 & Up
7 23-8M0030216



BEARING SET, Connecting Rod - .001 Undersize AR 23-841449 SN# 0M952908 THRU 0M958497
7 23-8M0030216



BEARING SET, Connecting Rod - .001 Undersize AR
SN# 0M958498 & Up
7 23-8M0030982



BEARING SET, Connecting Rod - .010 Undersize AR 23-841450 SN# 0M952908 THRU 0M958497
7 23-8M0030982



BEARING SET, Connecting Rod - .010 Undersize AR
SN# 0M958498 & Up
8 8M0051198



BEARING SET, Main - Standard 1 23-842400 5
8 8M0053743



BEARING SET, Main - .001 Oversize AR 23-842401
8 23-842402



BEARING SET, Main - .001 Undersize AR

8 23-8M0053549



BEARING SET, Main - .010 Undersize AR 23-842403
9 28-845607



KEY, Crankshaft 1
5
10 400-842478T02



CRANKSHAFT/FLYWHEEL ASSEMBLY, Balanced 1
NOTE: Also Includes Damper 8M8021041 - Reference Engine Components Section - Water Pump And Front Cover 5
11 17-43504



PIN, Dowel 1
5
12 899898T59



FLYWHEEL 1
5
13 25-69756



O-RING, (.549 x .103), For #5 Bearing Cap Oil Hole 1
2,5
14 26-811554



SEAL, Oil 1
2,5
15 23-823108



BUSHING, Crankshaft Pilot 1
Driveline Models 5
16 10-845757



SCREW, (.437-20 x 1.00) 6
5
17 8M0051206



DRIVEPLATE ASSEMBLY 1 816618 Six Drive Models
18 861523A9



COUPLER ASSEMBLY, Engine - Short Aluminium Hub 1
Driveline Models
19 22-49099



FITTING 2

20 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 6

21 10-35091



SCREW, (.375-16 x 1.00) 6

22 861523A20



COUPLER ASSEMBLY, Engine - Long Steel Hub 1
Bravo Models
23 22-74036



FITTING, Grease 1

- 27-843073A05



GASKET/SEAL SET, Engine Overhaul 1
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing
- 844200A08



PARTIAL ENGINE ASSEMBLY 1
