600 SCi - Serial 0M952908 Thru 0M962885 - Electrical Components (Coils)

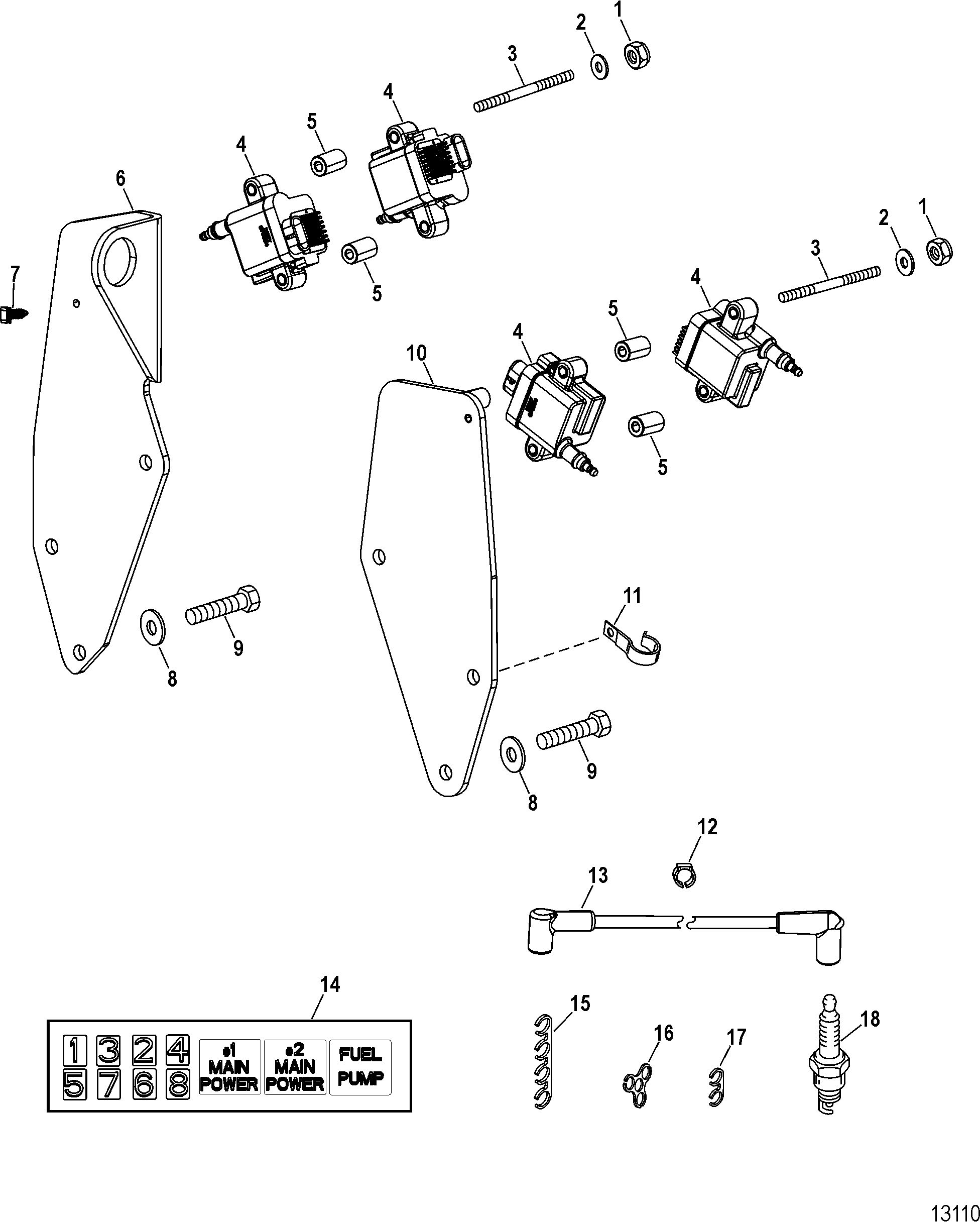

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 11-8267098 | NUT, (.250-20) Stainless Steel | 8 | ||||||
| 2 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 8 | ||||||
| 3 | 16-848176 | STUD, (.250-20 x 4.310) | 8 | ||||||
| 4 | 300-8M0077471 | COIL, Ignition | 8 | 339-879984T00 | |||||
| 5 | 23-842248 | SPACER | 8 | ||||||
| 6 | 842247002 | BRACKET, Coil Mount - Starboard | 1 | ||||||
| 7 | 54-828991T | CLIP | 2 | 54-828991 | |||||
| 8 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 6 | |||||
| 9 | 10-99204 | SCREW, (.437-14 x 1.00) Stainless Steel | 6 | ||||||
| 10 | 8M0052326 | BRACKET, Coil Mount - Port | 1 | 842246002 | |||||
| 11 | 54-848183 | J CLIP | 1 | ||||||
| 12 | 843137A01 | MARKER SET, Ignition Cables, Two Per - Numbers 1 Thru 8 | 1 | ||||||
| 13 | 84-896668A09 | CABLE SET, Ignition - Port, Four Blue Cables Per Set | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 13 | 84-896668A10 | CABLE SET, Ignition - Starboard, Four Blue Cables Per Set | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 13 | 84-899330A09 | CABLE SET, Ignition - Port, Four Black Cables Per Set | 1 | SN# 0M955081 & Up | |||||
| 13 | 84-899330A10 | CABLE SET, Ignition - Starboard, Four Black Cables Per Set | 1 | SN# 0M955081 & Up | |||||
| 14 | 37-842968 | LABEL SET, Electrical Components | 1 | ||||||
| 15 | 32784 | RETAINER, Four Wire | 4 | ||||||
| 16 | 32783 | RETAINER, Three Wire | 2 | ||||||
| 17 | 54676 | RETAINER, Two Wire | 2 | ||||||
| 18 | 33-810883 | SPARK PLUG | 8 | 5 | |||||
| - | 844200A08 | PARTIAL ENGINE ASSEMBLY | 1 |
