600 SCi - Serial 0M952908 Thru 0M962885 - Water Hoses (Sea Water)

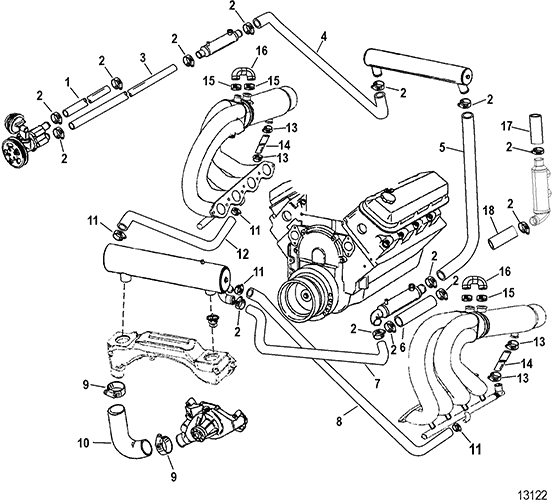

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-1743565 | HOSE, (38.00 Inches Bulk), Drive To Sea Water Pump - Cut As Required | 1 | Bravo Models | |||||
| 1 | 32-865672079 | HOSE, (96.00 Inches Bulk), Cut 48.00 Inches - Drive To Sea Water Pump | 1 | Six Drive Models | |||||
| 1 | 32-13556A1 | HOSE KIT, (10.00 Feet), Drive To Sea Water Pump | 1 | Driveline Models | |||||
| 2 | 54-180766 | CLAMP, Worm Gear | 2 | Driveline Models | |||||
| 2 | 54-180766 | CLAMP, Worm Gear | 10 | Bravo Models | |||||
| 3 | 32-842261 | HOSE, Molded, Circulating Pump To Fuel Cooler | 1 | ||||||
| 4 | 32-842262 | HOSE, Molded, Cooler To Cooler | 1 | ||||||
| 5 | 32-848956 | HOSE, Molded, Cooler To Tube | 1 | Bravo Models | |||||
| 6 | 22-13177 | TUBE, Hose Attachment | 1 | Non Power Steering Models | |||||
| 7 | 32-840926 | HOSE, Molded, Heat Exchanger To Cooler/Tube | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 7 | 32-8M0008251 | HOSE, Molded, Heat Exchanger To Cooler/Tube | 1 | SN# 0M955081 & Up | |||||
| 8 | 32-840924 | HOSE, Molded, Heat Exchanger To Port Exhaust Header | 1 | SN# 0M952908 THRU 0M955080 | |||||
| 8 | 32-8M0008162 | HOSE, Molded, Heat Exchanger To Port Exhaust Header | 1 | SN# 0M955081 & Up | |||||
| 9 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 10 | 32-840927 | HOSE, Molded, Crossover To Circulating Pump | 1 | ||||||
| 11 | 54-180765 | CLAMP, Worm Gear | 4 | ||||||
| 12 | 32-840925 | HOSE, Molded, Heat Exchanger To Starboard Exhaust Header | 1 | ||||||
| 13 | 54-180764 | CLAMP, Worm Gear | 4 | ||||||
| 14 | 32-842754 | HOSE, Molded, Exhaust Header To Pipe | 2 | ||||||
| 15 | 54-180763 | CLAMP, Worm Gear | 4 | ||||||
| 16 | 32-8424181 | HOSE, Molded, Exhaust Header To Pipe | 2 | ||||||
| 17 | 32-842262 | HOSE, Molded, Cut As Required | AR | Six Drive Models | |||||
| 18 | 32-842262 | HOSE, Molded, Cut As Required | AR | Six Drive Models |
