600 SCi - Serial 0M952908 Thru 0M962885 - Transmission (Driveline)

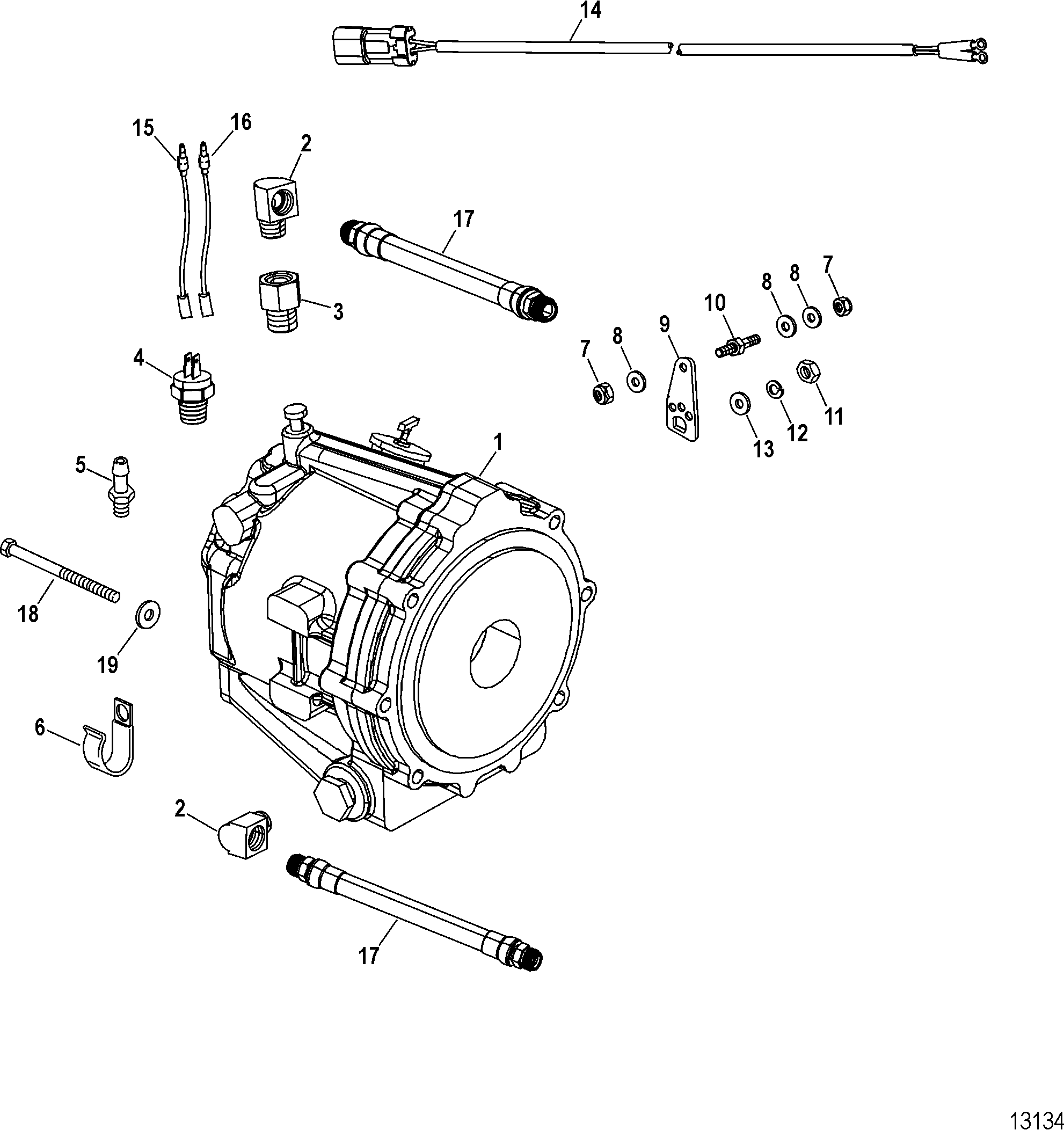

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 842047A03 | TRANSMISSION ASSEMBLY | 1 | ||||||
| 2 | 22-47629 | ELBOW, 90 Degree | 2 | ||||||
| 3 | 22-88517 | FITTING, Reducing | 1 | ||||||
| 4 | 87-88031 | SWITCH ASSEMBLY, Transmission Temperature | 1 | ||||||
| 5 | 22-63186 | FITTING, (.125-27) | 1 | ||||||
| 6 | 54-47483 | J CLIP | 1 | ||||||
| 7 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 8 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 3 | ||||||
| 9 | 12128 | LEVER, Transmission Shift | 1 | ||||||
| 10 | 16-96112 | STUD, (.250-28 x 2.00) | 1 | ||||||
| 11 | 11-22053 | NUT, (.312-24) | 1 | ||||||
| 12 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | |||||
| 13 | 12-20722 | WASHER, (.328 x .625 x .060) | 1 | This Part is No Longer Available | |||||
| 14 | 84-896868A01 | HARNESS ASSEMBLY, Extension | 1 | ||||||
| 15 | 84-88032A5 | CABLE ASSEMBLY, (3.00 Inches) Tan/Blue | 1 | ||||||
| 16 | 84-86322A29 | CABLE ASSEMBLY, (3.00 Inches) Black | 1 | ||||||
| 17 | 32-475166 | HOSE ASSEMBLY, (30.00 Inches) | 2 | ||||||
| 18 | 10-60179 | SCREW, (.437-14 x 3.500) | 6 | ||||||
| 19 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 6 |
