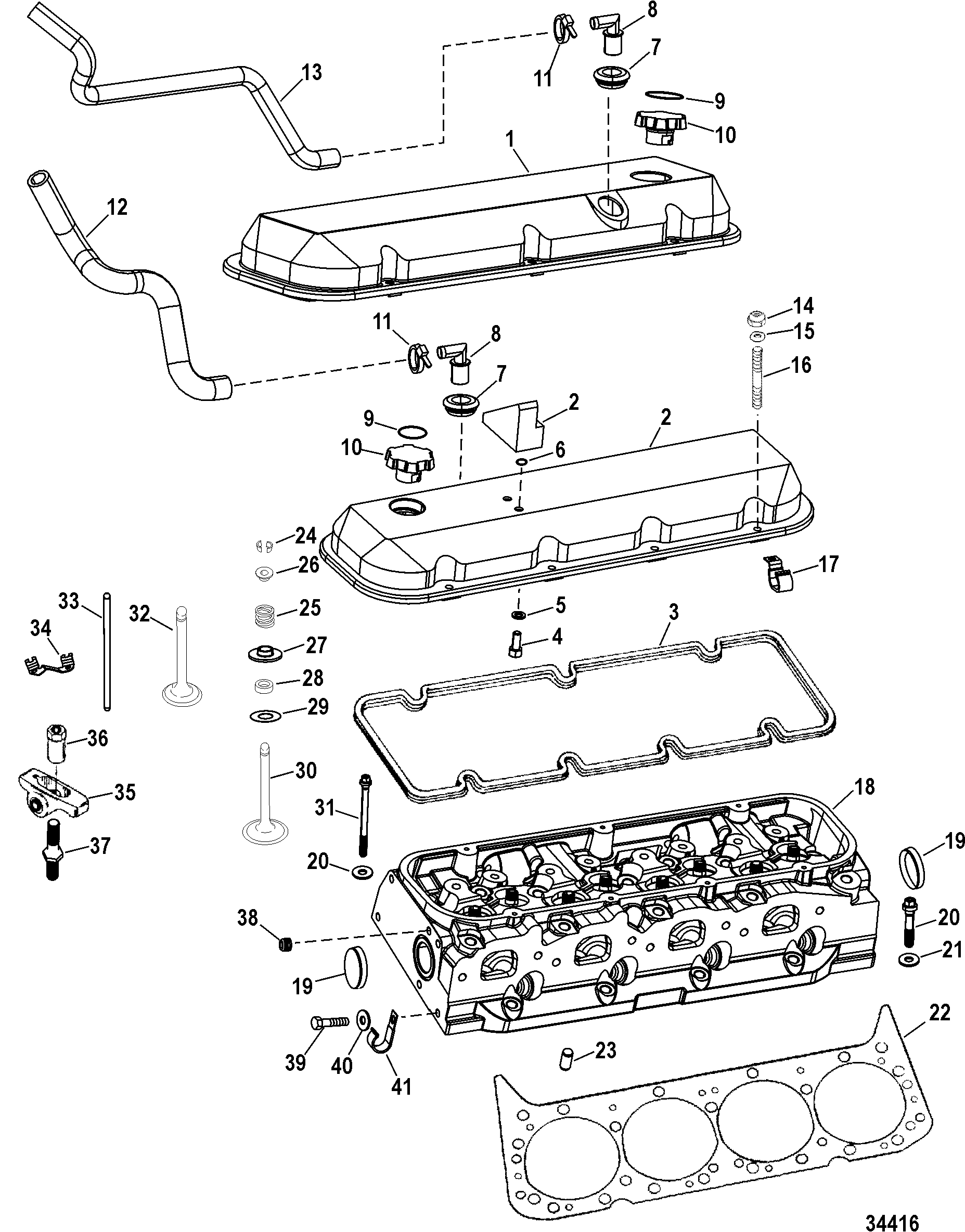

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
8M0050913 |
|
|
|
|
COVER ASSEMBLY, Rocker Valve - Blue, Port |
1 |
845708A7 |
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
| 2 |
8M0052328 |
|
|
|
|
COVER ASSEMBLY, Rocker Valve - Blue, Starboard |
1 |
845708A9 |
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
| 3 |
27-811588 |
|
|
|
|
GASKET, Rocker Cover |
2 |
|
2 |
| 4 |
10-39349 |
|
|
|
|
SCREW, (.312-18 x .750) Stainless Steel |
2 |
|
|
| 5 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
2 |
|
|
| 6 |
25-26802 |
|
|
|
|
O-RING, (.424 x .103) |
2 |
|
2 |
| 7 |
25-811553 |
|
|
|
|
GROMMET |
2 |
|
2,5 |
| 8 |
97850T |
|
|
|
|
ELBOW, 90 Degree, Breather |
2 |
97850 |
|
| 9 |
37-849950 |
|
|
|
|
DECAL, Oil Fill Cap |
2 |
|
5 |
| 10 |
845753T1 |
|
|
|
|
CAP |
2 |
|
5 |
| 11 |
54-816311T |
|
|
700-21465 |
|
TIE STRAP, (8.00 Inches) |
2 |
|
|
| 12 |
32-843925 |
|
|
|
|
HOSE, Molded, To Starboard Breather Elbow |
1 |
|
SN# 0M952908 THRU 0M955080 |
| 12 |
32-8M0001452 |
|
|
|
|
HOSE, Molded, To Starboard Breather Elbow |
1 |
|
SN# 0M955081 & Up |
| 13 |
32-843924 |
|
|
|
|
HOSE, Molded, To Port Breather Elbow |
1 |
|
SN# 0M952908 THRU 0M955080 |
| 13 |
32-8M0001451 |
|
|
|
|
HOSE, Molded, To Port Breather Elbow |
1 |
|
SN# 0M955081 & Up |
| 14 |
11-35888 |
|
676-9-72001 |
700-21180 |
|
NUT, (.250-28) Stainless Steel |
14 |
|
5 |
| 15 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
14 |
|
5 |
| 16 |
16-56766 |
|
|
|
|
STUD, (.250-20/.250-28 x 1.380) |
14 |
|
5 |
| 17 |
54-15095 |
|
|
|
|
J CLIP |
1 |
|
5 |
| 18 |
900-843944A04 |
|
|
|
|
CYLINDER HEAD ASSEMBLY, Starboard |
1 |
|
5 |
| 18 |
900-843944A05 |
|
|
|
|
CYLINDER HEAD ASSEMBLY, Port |
1 |
|
5 |
| 19 |
19-47463 |
|
|
|
|
EXPANSION PLUG |
2 |
|
5 |
| 20 |
10-8M0000463 |
|
|
|
|
SCREW, (.438-14 x 2.060) |
8 |
10-843917 |
5 |
| 21 |
12-841990 |
|
|
|
|
WASHER, Special - Black |
32 |
|
5 |
| 22 |
27-811546A04 |
|
|
|
|
GASKET KIT, Cylinder Head |
2 |
27-811546A03 |
2,5 |
| 23 |
17-843931 |
|
|
|
|
PIN, Dowel, Cylinder Head |
4 |
|
5 |
| 24 |
8M0042989 |
|
|
|
|
LOCK, Valve Stem |
32 |
843140 |
5 |
| 25 |
24-843081A01 |
|
|
|
|
SPRING/RETAINER KIT, (16 Per Kit) |
1 |
|
5 |
| 26 |
NSS |
|
|
|
|
NOT SOLD SEPARATE, Retainer |
1 |
|
This Part is not sold separately 5 |
| 27 |
840678 |
|
|
|
|
SEAT, Spring |
16 |
|
5 |
| 28 |
26-842755 |
|
|
|
|
SEAL, Valve, Intake And Exhaust |
16 |
|
2,5 |
| 29 |
15-845669 |
|
|
|
|
SHIM, Valve Spring (.015) |
AR |
|
5 |
| 29 |
15-77624 |
|
|
|
|
SHIM, Valve Spring (.030) |
AR |
|
5 |
| 29 |
15-77625 |
|
|
|
|
SHIM, Valve Spring (.060) |
AR |
|
5 |
| 30 |
843080 |
|
|
|
|
VALVE, Exhaust |
8 |
|
5 |
| 31 |
10-8M0000482 |
|
|
|
|
SCREW, (.438-14 x 4.060) |
14 |
10-843918 |
5 |
| 31 |
10-8M0000467 |
|
|
|
|
SCREW, (.438-14 x 5.120) |
10 |
10-843919 |
5 |
| 32 |
821024T |
|
|
|
|
VALVE, Intake, Standard - 2.250 Diameter |
8 |
|
5 |
| 33 |
848262 |
|
|
|
|
PUSH ROD, (7.550) |
8 |
|
Intake 5 |
| 33 |
848264 |
|
|
|
|
PUSH ROD, (8.550) |
8 |
|
Exhaust 5 |
| 34 |
840942 |
|
|
|
|
GUIDE, Pushrod |
8 |
|
5 |
| 35 |
845618T |
|
|
|
|
ROCKER ARM ASSEMBLY |
16 |
|
5 |
| 36 |
11-848610 |
|
|
|
|
NUT, Rocker Arm Valve |
16 |
|
5 |
| 37 |
95820 |
|
|
|
|
STUD, Rocker Arm Valve |
8 |
|
Intake 5 |
| 37 |
16-843129 |
|
|
|
|
STUD, Rocker Arm Valve |
8 |
|
Exhaust 5 |
| 38 |
10-848081 |
|
|
|
|
SET SCREW, (.437-14 x .500) Black |
1 |
|
5 |
| 39 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
1 |
|
|
| 40 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
1 |
|
|
| 41 |
54-843142 |
|
|
|
|
J CLIP |
1 |
|
|
| - |
27-843073A05 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
| - |
844200A08 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
