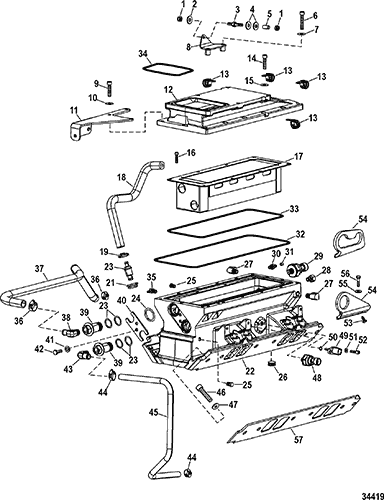

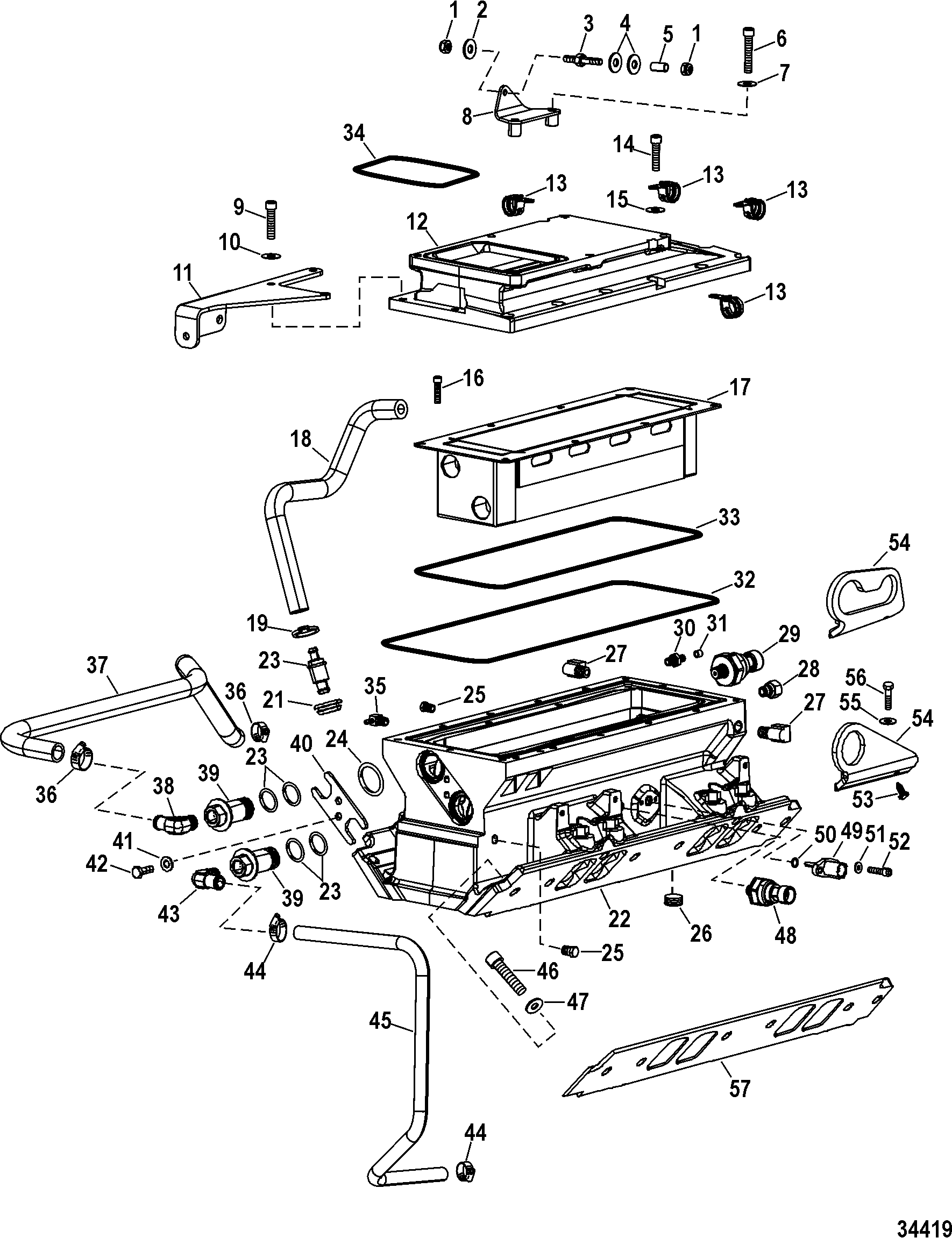

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
11-826709109 |
|
|
|
|
NUT, (.250-28) Stainless Steel |
2 |
|
|
| 2 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
1 |
|
|
| 3 |
16-96112 |
|
|
|
|
STUD, (.250-28 x 2.00) |
1 |
|
|
| 4 |
12-69056 |
|
|
|
|
WASHER, (.255 x .625 x .0312) |
2 |
12-21631 |
|
| 5 |
23-31866 |
|
|
|
|
SPACER, (.256 x .313 x .625) |
1 |
|
|
| 6 |
10-30559 |
|
|
|
|
SCREW, (.312-18 x 1.750) Stainless Steel |
2 |
|
SN# 0M952908 THRU 0M955080 |
| 6 |
10-821281 |
|
|
|
|
SCREW, (.312-18 x 2.500) Stainless Steel |
2 |
|
SN# 0M955081 & Up |
| 7 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
2 |
|
|
| 8 |
843941 |
|
|
|
|
BRACKET, Cable Atachment |
1 |
|
|
| 9 |
10-79436 |
|
|
|
|
SCREW, (.312-18 x 1.250) Stainless Steel |
3 |
|
SN# 0M952908 THRU 0M955080 |
| 9 |
10-8M0000148 |
|
|
|
|
SCREW, (.312-18 x 2.120) Stainless Steel |
3 |
|
SN# 0M955081 & Up |
| 10 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
3 |
|
|
| 11 |
842509 |
|
|
|
|
BRACKET, Support - Black |
1 |
|
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number |
| 12 |
8M8000300 |
|
|
|
|
MANIFOLD, Supercharger - Blue |
1 |
842470001 |
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number SN# 0M952908 THRU 0M955080 |
| 12 |
8M8000300 |
|
|
|
|
MANIFOLD, Supercharger - Blue |
1 |
|
NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number SN# 0M955081 & Up |
| 13 |
54-843943 |
|
|
|
|
J CLIP |
4 |
|
|
| 14 |
10-90073 |
|
|
|
|
SCREW, (.312-18 x 1.00) Stainless Steel |
10 |
|
SN# 0M952908 THRU 0M955080 |
| 14 |
10-30559 |
|
|
|
|
SCREW, (.312-18 x 1.750) Stainless Steel |
10 |
|
SN# 0M955081 & Up |
| 15 |
12-70132 |
|
|
|
|
WASHER, (.323 x .563 x .063) Stainless Steel |
10 |
|
|
| 16 |
10-861846 |
|
|
|
|
SCREW, (.312-18 x .750) Stainless Steel |
8 |
|
|
| 17 |
8M0047379 |
|
|
|
|
INTERCOOLER |
1 |
842472 |
|
| 18 |
32-8M0001453 |
|
|
|
|
HOSE, Molded, Valve To Throttle Body |
1 |
32-843087 |
SN# 0M952908 THRU 0M955080 |
| 18 |
32-8M0001453 |
|
|
|
|
HOSE, Molded, Valve To Throttle Body |
1 |
|
SN# 0M955081 & Up |
| 19 |
54-848763 |
|
|
|
|
CLAMP, (19.8 mm) |
1 |
|
|
| 20 |
848578 |
|
|
|
|
VALVE ASSEMBLY, Crankcase Vent |
1 |
|
|
| 21 |
25-811553 |
|
|
|
|
GROMMET |
1 |
|
2,5 |
| 22 |
842469A05 |
|
|
|
|
MANIFOLD ASSEMBLY, Intake - Blue |
1 |
|
5 |
| 22 |
842469A08 |
|
|
|
|
MANIFOLD ASSEMBLY, Intake - Black |
1 |
|
5 |
| 23 |
25-21836 |
|
676-9-76565 |
|
|
O-RING, (.796 x .139) |
4 |
|
2,5 |
| 24 |
25-35480 |
|
|
|
|
O-RING, (1.237 x .103) |
2 |
|
2,5 |
| 25 |
22-328022 |
|
|
|
|
PLUG, Pipe (.125-27) Brass |
2 |
|
5 |
| 26 |
22-823465 |
|
|
|
|
PLUG, Pipe (1.00-11) Brass |
1 |
|
5 |
| 27 |
22-93385 |
|
|
|
|
FITTING, (90 Degree) |
2 |
|
5 |
| 28 |
22-33821 |
|
|
|
|
CONNECTOR |
1 |
|
5 |
| 29 |
881879T11 |
|
|
|
|
SENSOR, Pressure (0 - 100 PSI) |
1 |
881879011 |
|
| 30 |
22-840971A1 |
|
|
|
|
VALVE ASSEMBLY, Shrader |
1 |
|
5 |
| 31 |
22-805515 |
|
|
|
|
CAP, Shrader Valve - Brass |
1 |
|
5 |
| 32 |
25-843089 |
|
|
|
|
O-RING, (14.205 x .103) |
1 |
|
2,5 |
| 33 |
25-843088 |
|
|
|
|
O-RING, (12.570 x .103) |
1 |
|
2,5 |
| 34 |
25-843092 |
|
|
|
|
O-RING, (6.080 x .103) |
1 |
|
2,5 |
| 35 |
22-993211 |
|
|
|
|
FITTING |
1 |
|
5 |
| 36 |
54-180761 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 37 |
32-842260 |
|
|
|
|
HOSE, Molded |
1 |
|
|
| 38 |
22-842491 |
|
|
|
|
FITTING, (.375-18) 90 Degree |
1 |
|
|
| 39 |
843090 |
|
|
|
|
COUPLER, Intercooler |
2 |
|
|
| 40 |
843091 |
|
|
|
|
RETAINER, Intercooler Coupler |
1 |
|
|
| 41 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
|
| 42 |
10-28782 |
|
|
|
|
SCREW, (.312-18 x .880) Stainless Steel |
2 |
|
|
| 43 |
22-842501 |
|
|
|
|
FITTING, 90 Degree |
1 |
|
|
| 44 |
54-180761 |
|
|
|
|
CLAMP, Worm Gear |
2 |
|
|
| 45 |
32-842259 |
|
|
|
|
HOSE, (38.00 Inches) |
1 |
|
SN# 0M952908 THRU 0M955080 |
| 45 |
32-8M0007846 |
|
|
|
|
HOSE, (38.00 Inches) |
1 |
|
SN# 0M955081 & Up |
| 46 |
10-848160 |
|
|
|
|
SCREW, (.375-16 x 1.375) Stainless Steel |
16 |
|
5 |
| 47 |
12-842504 |
|
|
|
|
WASHER, (.410 x .720 x .093) Stainless Steel |
16 |
|
5 |
| 48 |
8M6000628 |
|
|
|
|
SENSOR ASSEMBLY, Pressure (0 - 30 PSI) |
1 |
8818798 |
|
| 49 |
891663001 |
|
|
|
|
SENSOR ASSEMBLY, Temperature, Air Charge |
1 |
|
5 |
| 50 |
25-892317001 |
|
|
|
|
O-RING |
1 |
|
2,5 |
| 51 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
5 |
| 52 |
10-90188 |
|
|
|
|
SCREW, (#10-24 x .500) Stainless Steel |
2 |
|
5 |
| 53 |
54-828991T |
|
|
|
|
CLIP |
1 |
54-828991 |
5 |
| 54 |
8M8000050 |
|
|
|
|
BRACKET, Lift |
1 |
842460 |
Design I - Single Hole Lift 5 |
| 54 |
8M8000050 |
|
|
|
|
BRACKET, Lift |
1 |
|
Design II - Dual Hole Lift 5 |
| 55 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
2 |
|
5 |
| 56 |
10-37562 |
|
|
|
|
SCREW, (.312-18 x 1.00) Stainless Steel |
2 |
|
5 |
| 57 |
27-843073 |
|
|
|
|
GASKET, Intake Manifold Mount |
2 |
|
2,5 |
| - |
27-843073A05 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
| - |
844200A08 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
|
|
