| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

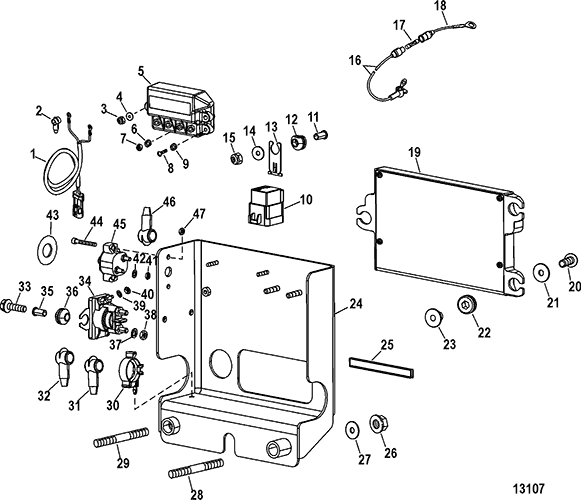

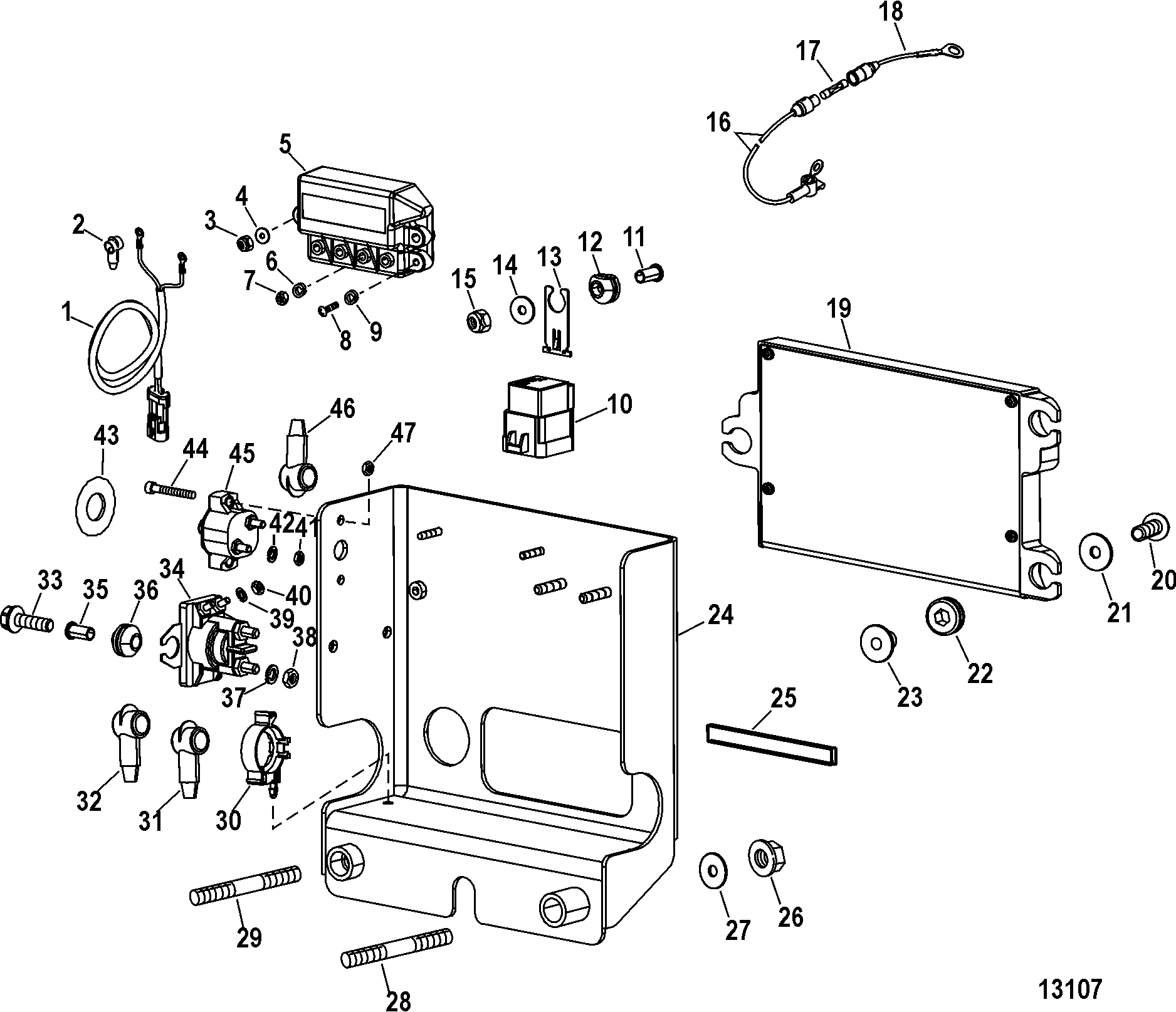

| 1 |
84-865181A01 |
|
|
|
|
HARNESS ASSEMBLY, Mercathode |
1 |
|
No longer made, limited availability |
| 2 |
85-65208 |
|
|
|
|
BOOT, Insulator - Black |
3 |
|
|
| 3 |
11-826709106 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 4 |
12-30164 |
|
|
|
|
WASHER, (.192 x .375 x .0312) Stainless Steel |
2 |
|
|
| 5 |
42600A09 |
|
|
|
|
CONTROLLER ASSEMBLY, Mercathode |
1 |
42600A3 |
|
| 6 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
4 |
|
|
| 7 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
4 |
|
|
| 8 |
10-62568 |
|
|
|
|
SCREW, (#10-16 x .375) |
1 |
|
|
| 9 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
1 |
|
|
| 10 |
882751A1 |
|
|
700-73040 |
|
RELAY ASSEMBLY |
3 |
|
|
| 11 |
23-818968 |
|
|
|
|
BUSHING |
3 |
|
|
| 12 |
25-818967 |
|
|
|
|
GROMMET |
3 |
|
2 |
| 13 |
828102 |
|
|
|
|
BRACKET |
3 |
|
|
| 14 |
12-846673 |
|
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
3 |
|
|
| 15 |
11-8267098 |
|
|
|
|
NUT, (.250-20) Stainless Steel |
3 |
|
|
| 16 |
84-95084A9 |
|
|
|
|
CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip |
1 |
|
|
| 17 |
88-79091 |
|
|
|
|
FUSE, 20 Ampere |
1 |
|
|
| 18 |
84-95084A10 |
|
|
|
|
CABLE ASSEMBLY, (5.00 Inches) Red |
1 |
|
|
| 19 |
840947T15 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
843026003 |
SN# 0M952908 THRU 0M953064 |
| 19 |
840947T15 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
843026004 |
SN# 0M953065 THRU 0M956235 |
| 19 |
840947T15 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
899898T57 |
SN# 0M956236 THRU 0M959813 |
| 19 |
840947T15 |
|
|
|
|
PCM, Propulsion Control Module |
1 |
879270T89 |
SN# 0M959814 & Up |
| 20 |
10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
3 |
|
|
| 21 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 22 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 23 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 24 |
842477002 |
|
|
|
|
BRACKET, Electrical Mounting |
1 |
|
|
| 25 |
8M0062940 |
|
|
|
|
SEAL, 6 Inches |
1 |
|
|
| 26 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) Brass/Nickel Plated |
2 |
|
|
| 27 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 28 |
16-57984 |
|
|
|
|
STUD, (.437-14/.437-20 x 2.380) |
1 |
|
|
| 29 |
16-579203 |
|
|
|
525-16-579203 |
STUD, (.437-14/.437-20 x 2.060) |
1 |
|
|
| 30 |
54-853947 |
|
|
|
|
CLIP, Harness Support |
2 |
|
|
| 31 |
85-880786 |
|
|
|
|
BOOT, Insulator - Red |
1 |
|
|
| 32 |
85-880787 |
|
|
|
|
BOOT, Insulator - Yellow |
1 |
|
|
| 33 |
10-828478 |
|
|
|
|
SCREW, (.250-20 x 1.00) Stainless Steel |
2 |
|
|
| 34 |
89-850187T1 |
|
|
700-72401 |
|
SOLENOID ASSEMBLY |
1 |
|
|
| 35 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 36 |
25-818967 |
|
|
|
|
GROMMET |
2 |
|
|
| 37 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
2 |
|
|
| 38 |
11-94330 |
|
|
|
|
NUT, (.250-20) Brass |
2 |
|
|
| 39 |
13-26995 |
|
|
|
|
LOCKWASHER, (#8) Stainless Steel |
2 |
|
|
| 40 |
11-26419 |
|
|
|
|
NUT, (#8-32) Brass |
2 |
|
|
| 41 |
11-68219 |
|
|
|
|
NUT, (#10-32) Stainless Steel |
2 |
|
|
| 42 |
13-26996 |
|
|
|
|
LOCKWASHER, (#10) Stainless Steel |
2 |
|
|
| 43 |
37-72554 |
|
|
|
|
DECAL, Circuit Breaker |
1 |
|
|
| 44 |
10-96113 |
|
|
|
|
SCREW, (#10-32 x .880) Stainless Steel |
2 |
|
|
| 45 |
88-11178A01 |
|
|
|
|
BREAKER, Circuit - 50 Ampere |
1 |
88-11178 |
This part is the replacement for 11178A01 however the mounting hole will need to be enlarged to make it work. |
| 46 |
85-880786 |
|
|
|
|
BOOT, Insulator - Red |
2 |
|
|
| 47 |
11-61356 |
|
|
|
|
NUT, (#10-32) Reduced Hex |
2 |
|
|
| - |
27-843073A05 |
|
|
|
|
GASKET/SEAL SET, Engine Overhaul |
1 |
|
NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
