600 SCi - Serial 0M952908 Thru 0M962885 - Oil Pan And Oil Pump

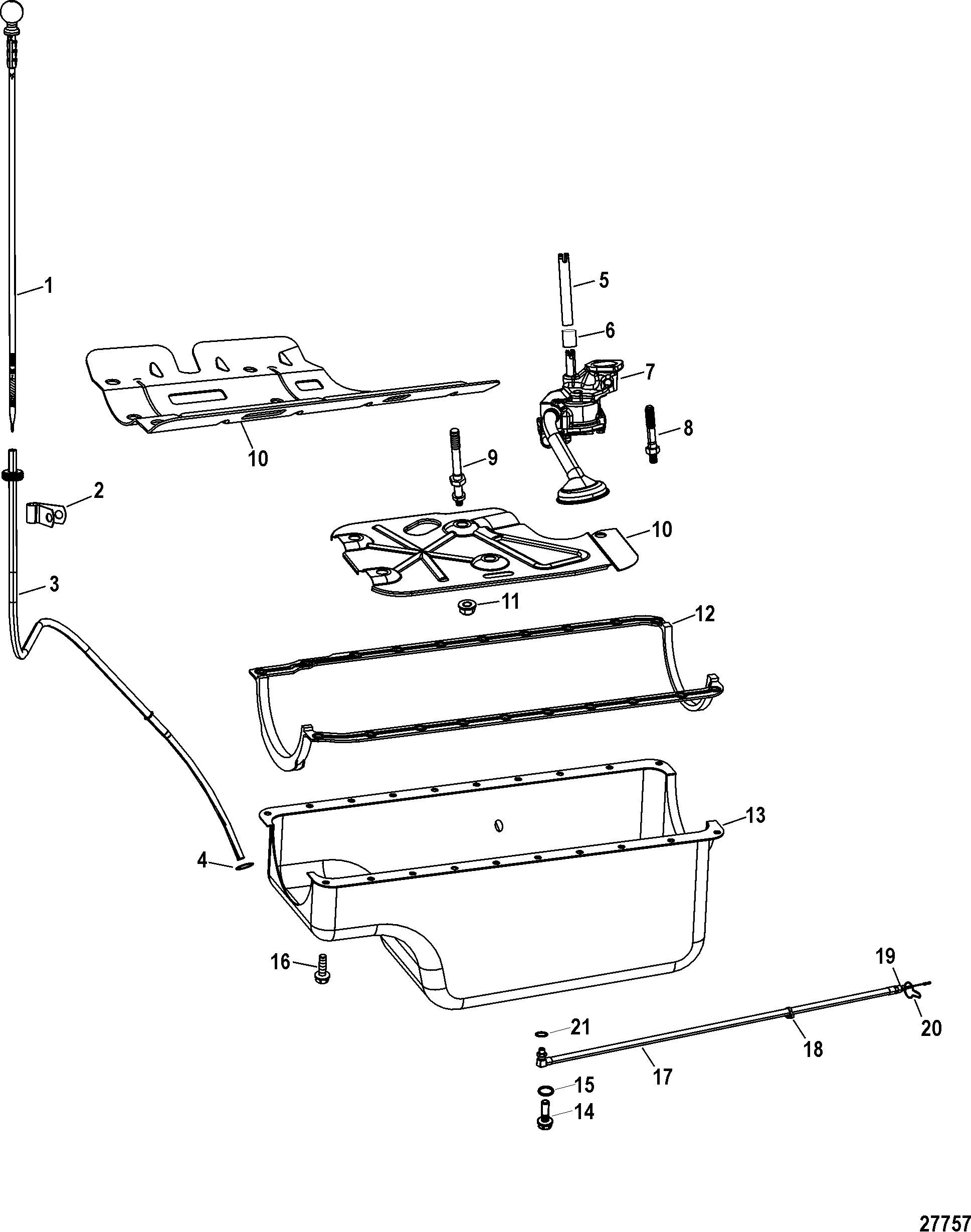

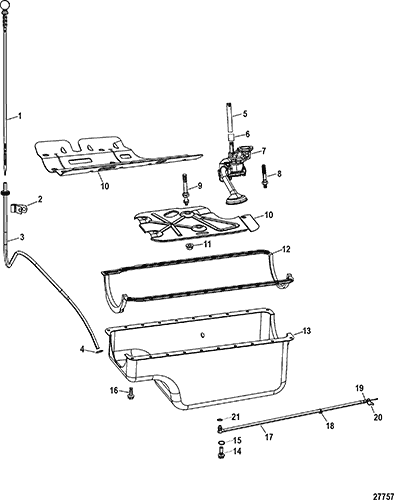

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator And Mounting
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Coils)
- Electrical Components (Engine Harness)
- Electrical Components (Mounting Box)
- Electrical Components (Starter Motor)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Lines And Fuel Components
- Fuel Pump And Fuel Cooler
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A05)
- Intake Components (Air Plenum)
- Intake Components (Boost Valve)
- Intake Components (Intercooler And Manifold)
- Intake Components (Supercharger Assembly)
- Mount Plates (Engine - Design I)
- Mount Plates (Engine - Design II)
- Oil Cooler - Oil Filter (0M952908 Thru 0M953904)
- Oil Cooler - Oil Filter (0M953905 And Up)
- Oil Cooler (Six Drive)
- Oil Pan And Oil Pump
- Paint Color Chart
- Power-Assisted Steering (0M952908 Thru 0M955606)
- Power-Assisted Steering (0M955607 And Up)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Tool List (Special - Engine)
- Transmission (Driveline)
- Transmission (Six Drive)
- Transmission Components (Six Drive)
- Trim Pump Assembly (Bravo)
- Trim Pump-Motor Assembly (Bravo)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 861942T9 | DIPSTICK, Oil Level | 1 | ||||||
| 2 | 54-843023 | CLIP, Dipstick Tube Support | 1 | ||||||
| 3 | 843141A2 | TUBE ASSEMBLY, Dipstick | 1 | 843024A02 | |||||
| 4 | 25-62704 | O-RING, (.362 x .103) | 1 | 2,5 | |||||
| 5 | 14761 | SHAFT AND RETAINER | 1 | 5 | |||||
| 6 | 23-36183 | RETAINER | 1 | 5 | |||||
| 7 | 8M0051418 | PUMP ASSEMBLY, Oil | 1 | 827643001 | SN# 0M952908 THRU 0M959705 5 | ||||
| 7 | 8M0051418 | PUMP ASSEMBLY, Oil | 1 | 8M0025386 | SN# 0M959706 & Up 5 | ||||
| 8 | 16-845599 | STUD, (.375-16/.438-14 x 3.00) | 1 | 5 | |||||
| 9 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 4 | Design I - Use With Oil Deflector Baffle SN# 0M952908 THRU 0M953904 5 | |||||
| 9 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 5 | Design II - Used With Windage Tray SN# 0M953905 & Up 5 | |||||
| 10 | 843945T | BAFFLE, Oil Deflector | 1 | 845601T | Design I SN# 0M952908 THRU 0M953904 5 | ||||
| 10 | 843945T | WINDAGE TRAY, Oil Deflector | 1 | Design II SN# 0M953905 & Up 5 | |||||
| 11 | 11-845602 | NUT, (.375-16) | 5 | 5 | |||||
| 12 | 27-845628 | GASKET, Oil Pan | 1 | 2,5 | |||||
| 13 | 845668T | PAN ASSEMBLY, Oil | 1 | 5 | |||||
| 14 | 10-809911001 | SCREW, Oil Drain (M12 x 1.75) | OPT | 10-809911 | 5 | ||||
| 15 | 27-8M0077608 | GASKET, Oil Drain Screw | 1 | 27-49955 | 2,5 | ||||
| 16 | 10-841389 | SCREW, (.312-18 x .620) | 20 | 5 | |||||
| 17 | 32-865281A02 | HOSE KIT, Oil Drain (38.00 Inches) | 1 | Bravo Models | |||||
| 17 | 32-865280A02 | HOSE KIT, Oil Drain (92.00 Inches) | 1 | Driveline Models | |||||
| 18 | 54-863481 | CLAMP | 1 | ||||||
| 19 | 862827 | TETHER ASSEMBLY | 1 | ||||||
| 20 | 54-805524 | CLIP | 1 | ||||||
| 21 | 27-8M0077608 | GASKET | 1 | 27-49955 | 2 | ||||
| - | 27-843073A05 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 844200A08 | PARTIAL ENGINE ASSEMBLY | 1 |
