7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Cylinder Head And Rocker Cover

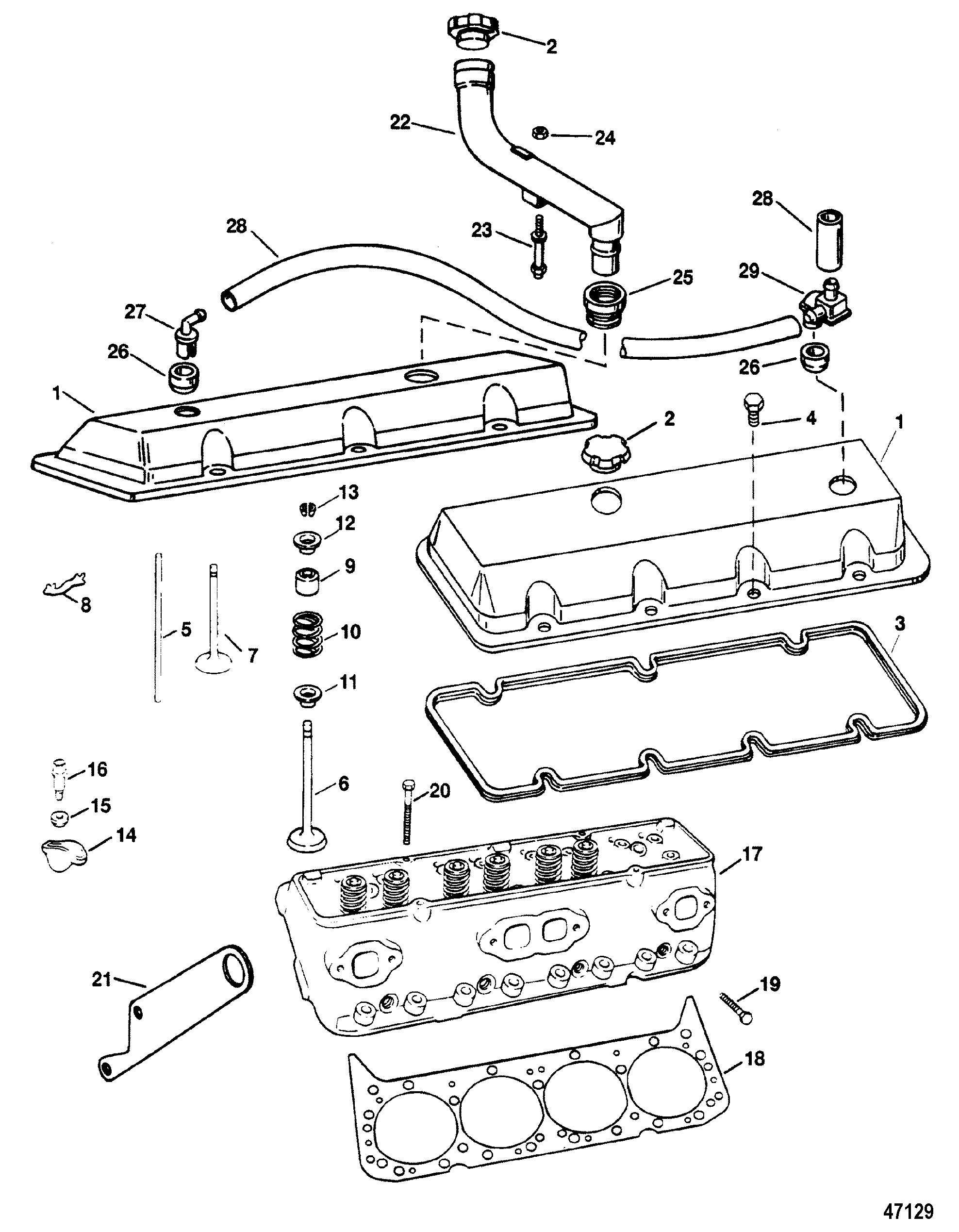

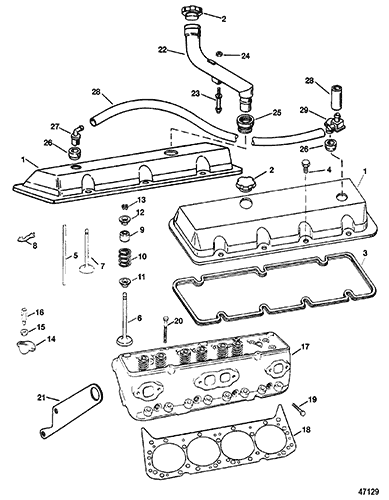

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850462



ROCKER COVER 2 811587
2 36-811569



CAP, Oil Tank 2

3 27-811588
676-9-61315

GASKET, Rocker Cover 2   3
4 10-811589



BOLT, (1/4-20 x 0.875) 14

5 75589



ROD (INLET) 8
5 75590



ROD (EXHAUST) 8
6 814506



VALVE, Exhaust (STANDARD) 8
6 814507001



VALVE, Exhaust (.015 O.S.) AR 814507
7 49134



VALVE, Intake (STANDARD) 8
7 NSS



Not Sold Separate (.015 O.S.) AR
8 811585



GUIDE 8    This Part is no longer available
9 26-811545
676-9-61651

SEAL, Valve 16   3
10 24-14754T



SPRING 16 24-14754
11 14755



ROTATOR 16    This Part is no longer available
12 14753



CAP 16    This Part is no longer available
13 28-54530



KEY 32
14 811590



ROCKER ARM 16    This Part is no longer available
15 850472



BALL, Rocker Arm 16 811592
16 10-811593



BOLT, Rocker Arm 16
17 938-883492R1



CYLINDER HEAD 2 938-827656
18 879150141



GASKET 2 27-811547 3
19 10-8M0000463



BOLT, (2.00 Inch) (2 IN.) 8 10-49106
20 10-8M0000482



BOLT, (4.125 Inch) (4-1/8 IN.) 24 10-49105
21 807081T



BRACKET, FRONT 1
22 36-807131T



TUBE 1    This Part is no longer available
23 16-805706



STUD 1
24 11-826709109


525-11-826709109 NUT, (.250-28) 1 11-35045
25 26-805622



GROMMET 1
26 25-811553



GROMMET 2
27 97850T



ELBOW, 90 Degree, Breather 1 97850
28 32-805933



BREATHER HOSE 2    This Part is no longer available
29 805558A2



BAFFLE ASSEMBLY, Breather 1    This Part is no longer available
- 27-805396A95



GASKET SET 1
