7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Flywheel Housing

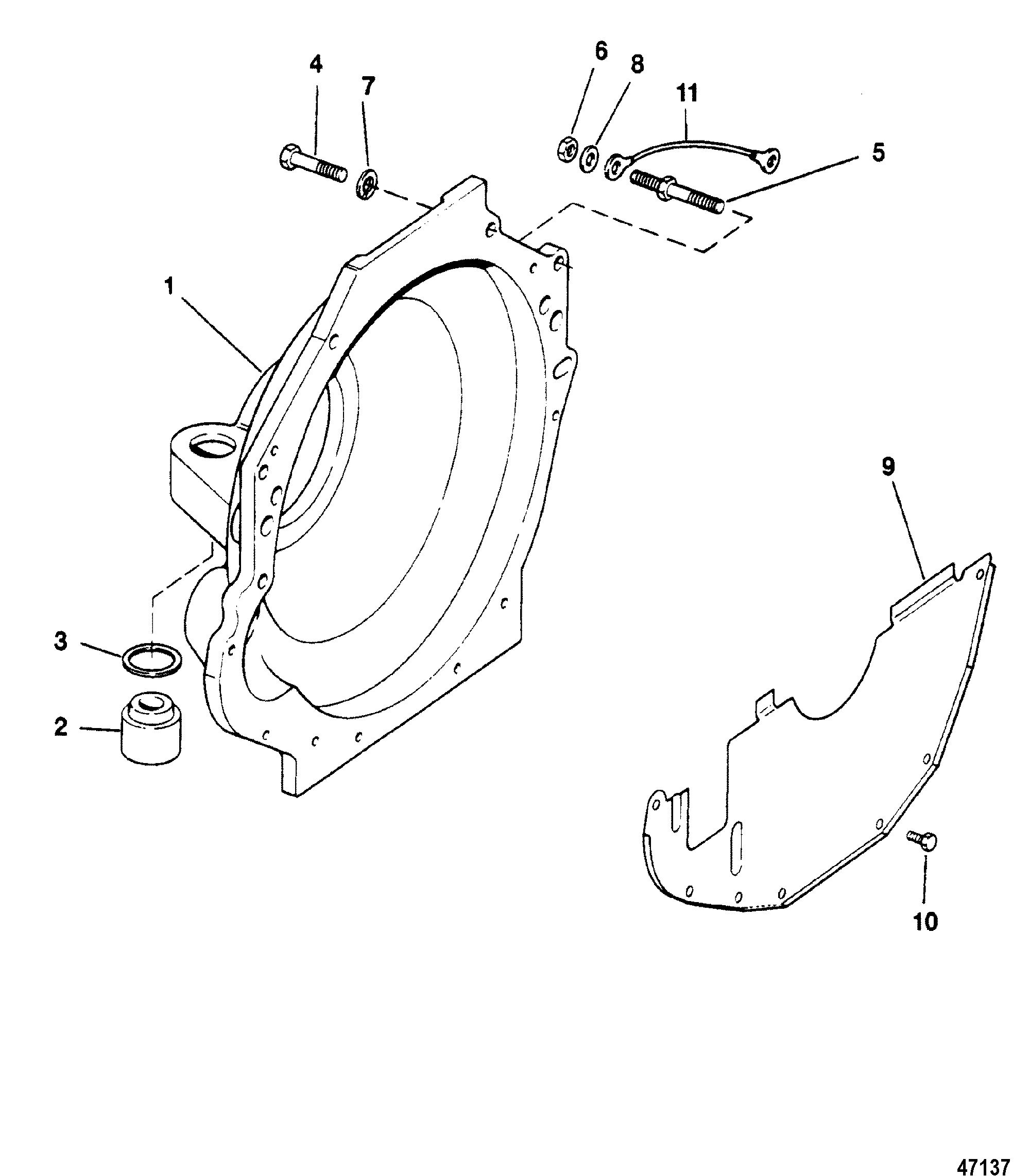

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 865657A04 | 525-57621 | HOUSING ASSEMBLY, Flywheel | 1 | 12675A7 | |||||
| 2 | 865330A02 | MOUNT | 2 | 88791 | ||||||
| 3 | 23-99322 | 700-21050 | SPACER | 2 | ||||||
| 4 | 10-37612 | SCREW, (.375-16 x 1.250) (1-1/4 IN.) | 3 | |||||||
| 4 | 10-358701 | SCREW, (.375-16 x 2.00) (2 IN.) | 1 | |||||||
| 5 | 16-64066 | STUD, (.375-16 x 2.750) | 2 | |||||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | |||||||
| 7 | 13-35048 | 700-21495 or | 700-21493 (for cast iron manifold) | LOCKWASHER, (.375) | 4 | |||||
| 8 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | |||||||
| 9 | 807260A2 | COVER | 1 | 818719A1 | ||||||
| 10 | 10-32773 | SCREW, (.250-20 x .875) | 7 | |||||||
| 11 | 84-62826A6 | CABLE ASSEMBLY, Ground (13.00 Inches) Black | 1 |
