7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Starter Motor And Alternator

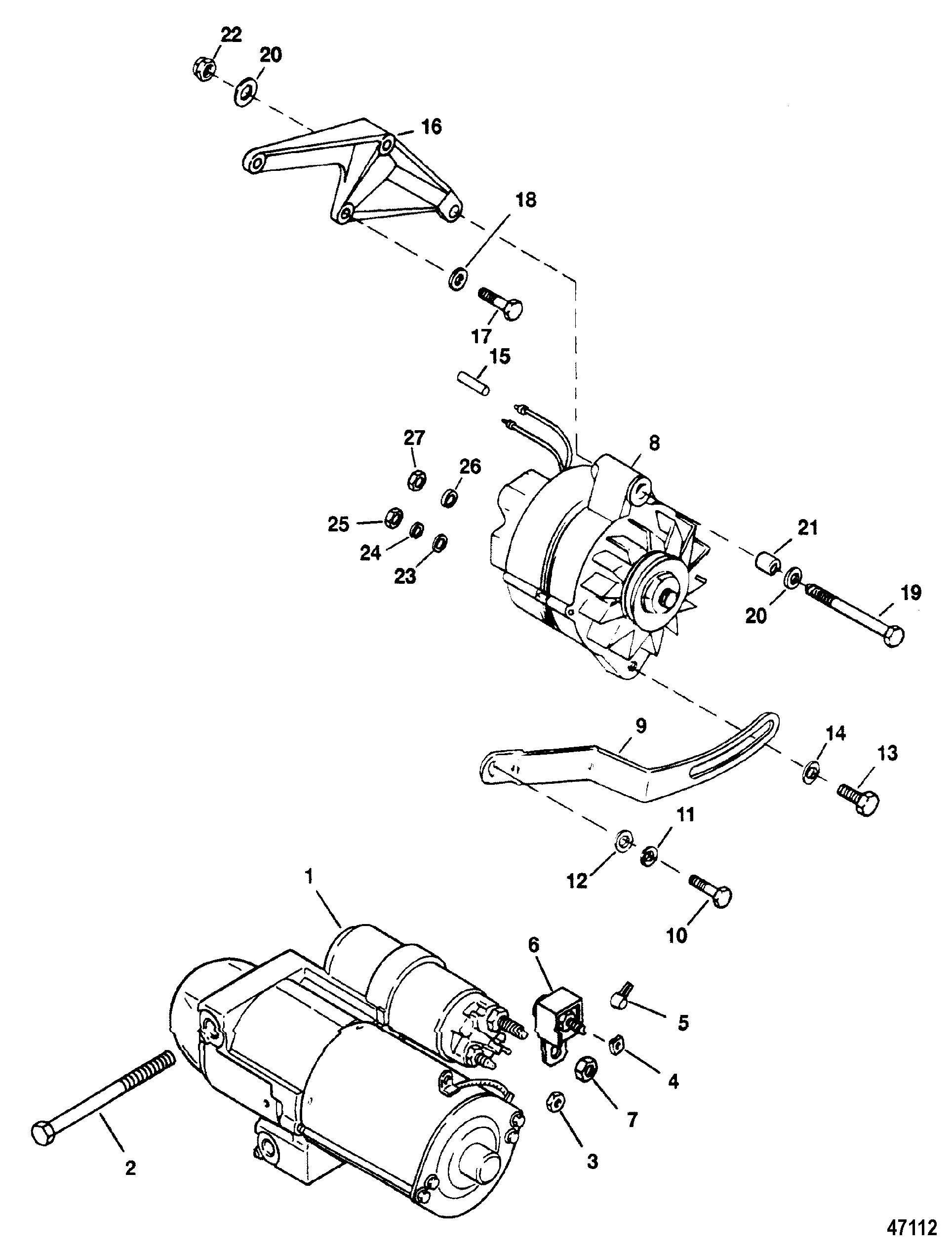

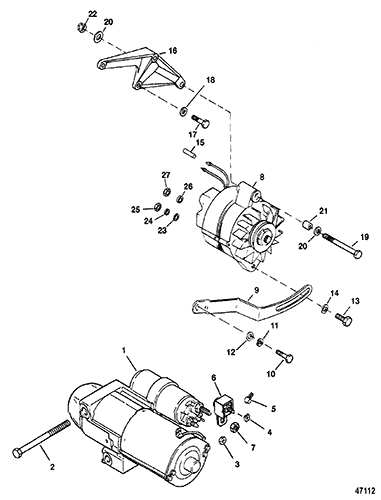

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1
676-9-15907
602-10099MD
or
620-5399M STARTER MOTOR ASSEMBLY 1 50-806964A3
2 10-8053432



SCREW, (.375-16 x 4.33) 2

3 11-806949



NUT, (M8-1.5) (8MM) 1
4 11-400211



NUT, (M5) Stainless Steel (5MM) 1

5 85-79695T



BOOT, Insulator - Black 1 85-79695
6 88-79023A91
676-9-15510

FUSE ASSEMBLY, 90 Ampere (90 AMP) 1
7 11-21825



NUT, (.250-28) 1
8 805884T
676-9-19103
620-3159M ALTERNATOR 1
9 85013T



BRACE 1
10 10-47462



SCREW, (.437-14 x 1.250) 1
11 13-32993



LOCKWASHER, (.437) 1
12 12-31263



WASHER 1
13 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) (7/8 IN.) 1
14 12-26168



WASHER 1
15 32-7381567



TUBING, (42.00 Inches Bulk) 2
16 806394A1



BRACKET 1    This Part is no longer available
17 10-47462



SCREW, (.437-14 x 1.250) (1-1/4 IN.) 1
17 10-91903



SCREW, (.437-14 x 1.750) (1-3/4 IN.) 2
18 12-22248



WASHER, (.453 x .875 x .060) 3
19 10-48308



SCREW, (.375-24 x 3.750) (3-3/4 IN.) 1
20 12-20553

700-21675
WASHER, (.406 x .734 x .063) 3
21 23-33186



BUSHING 1
22 11-23161



NUT, (.375-24) 1
23 12-96457



WASHER, Phenolic (.27 x .81 x .062) 1
24 13-26996



LOCKWASHER, (#10) Stainless Steel 1
25 11-79989



NUT, (#10-24) Stainless Steel (10-24) 1
26 13-26992



LOCKWASHER, (.250) Stainless Steel 1
27 11-94330



NUT, (.250-20) Brass (1/4-20) 1
