7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Exhaust System

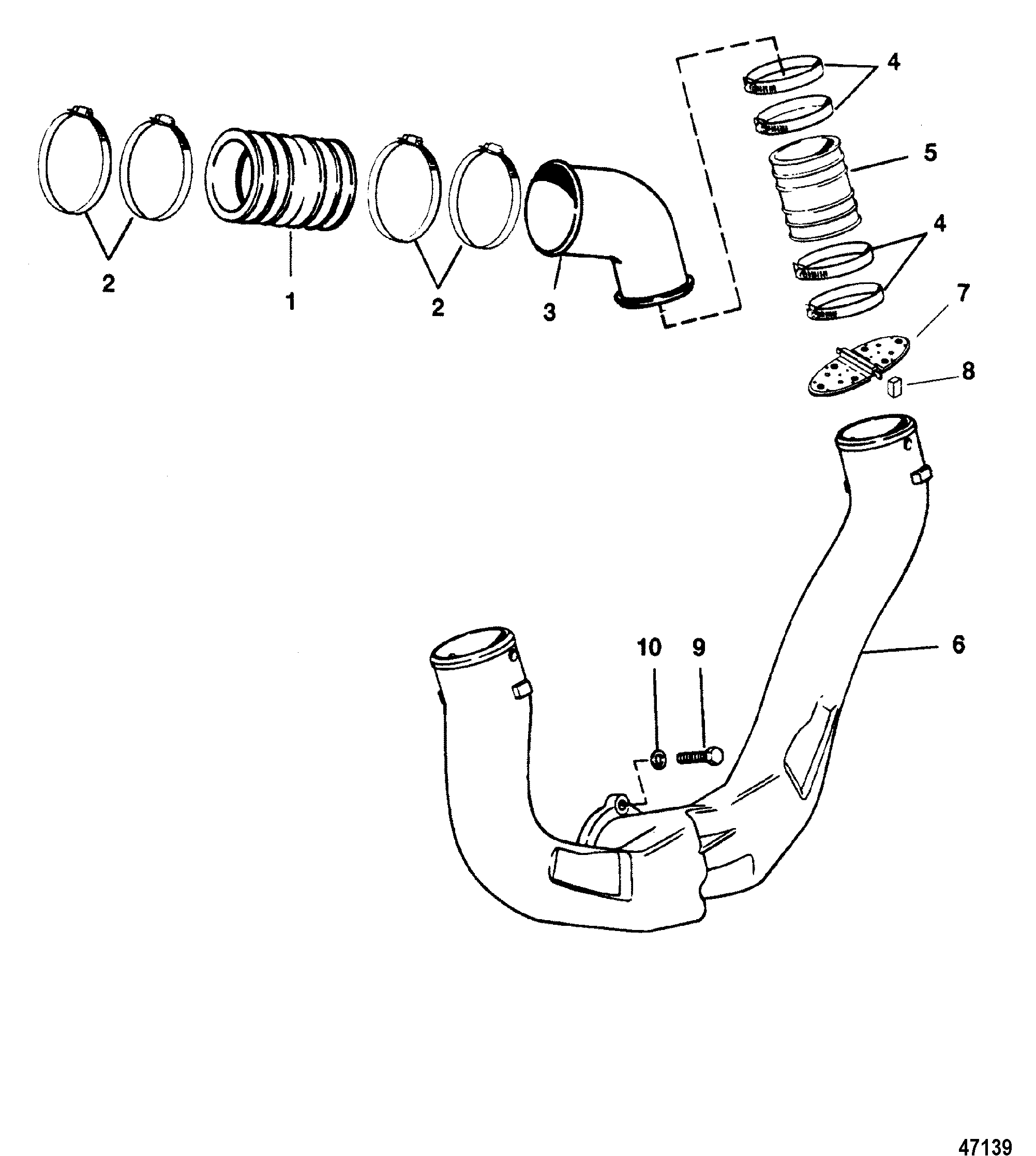

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-44348001 | TUBE | 2 | 32-44348T | |||||
| 2 | 54-815504372 | 700-01100 | CLAMP, Worm Gear | 8 | |||||
| 3 | 44267T | 525-44267T | ELBOW, Exhaust | 2 | |||||
| 4 | 54-815504372 | 700-01100 | CLAMP, Worm Gear | 8 | |||||
| 5 | 32-14358001 | TUBE | 2 | 32-14358T | |||||
| 6 | 807130A4 | PIPE | 1 | ||||||
| 7 | 807166A1 | 700-89175 | 525-807166A1 | SHUTTER ASSEMBLY, Water | 2 | ||||
| 8 | 25-807167 | GROMMET | 4 | ||||||
| 9 | 10-58640 | SCREW, (.375-16 x 1.25) | 4 | ||||||
| 10 | 13-41471 | LOCKWASHER, (.375) | 4 |
