7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Water Pump And Front Cover

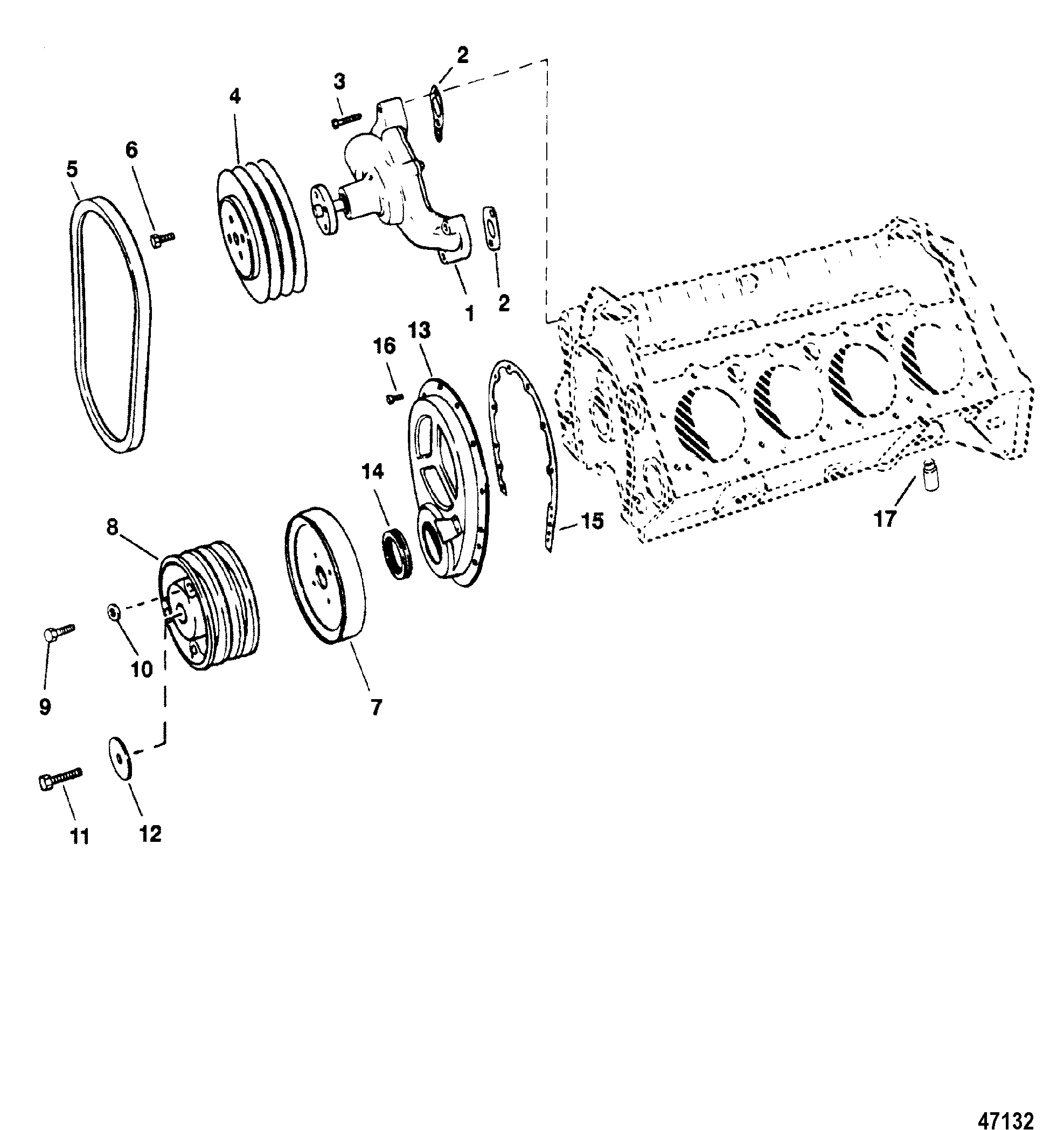

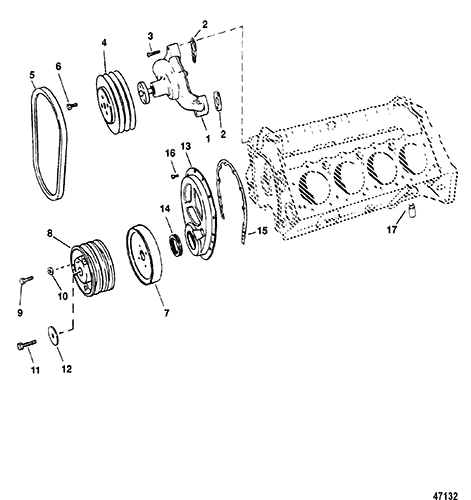

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8504541 | PUMP ASSEMBLY | 1 | 811573 | |||||
| 2 | 27-49110 | 676-9-60066 | 700-31770 | GASKET, Circulating Water Pump Mount | 2 | 3 | |||
| 3 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | |||||
| 4 | 19692T01 | PULLEY, (7 In. Diameter) | 1 | 19692T | |||||
| 5 | 57-48122Q | BELT, (48 Inches) | 1 | 57-48122 | |||||
| 6 | 10-47277 | SCREW, (.312-24 x .750) (3/4 IN.) | 4 | ||||||
| 7 | 850461001 | HARMONIC BALANCER | 1 | 811555 | |||||
| 8 | 90081T | PULLEY | 1 | ||||||
| 9 | 10-75334 | SCREW, (.375-24 x 3.00) | 3 | This Part is no longer available | |||||
| 10 | WASHER | 3 | |||||||
| 11 | SCREW, (.500-20 x 2.500) | 1 | 10-811559 | ||||||
| 12 | 12-49103 | WASHER | 1 | ||||||
| 13 | 811570 | COVER ASSEMBLY | 1 | This Part is no longer availble | |||||
| 14 | 26-8219471 | 676-9-61612 | SEAL | 1 | 3 | ||||
| 15 | 27-811572 | GASKET | 1 | 3 | |||||
| 16 | 10-35366 | SCREW, (.250-20 x .563) | 10 | ||||||
| 17 | VALVE, Relief (30 PSI) | 1 | |||||||
| - | 27-805396A95 | GASKET SET | 1 |
