7.4LX MPI Bravo (Gen 5) GM 454 V-8 1996 - Serial 0F602010 Thru 0F801999 - Engine Mounting

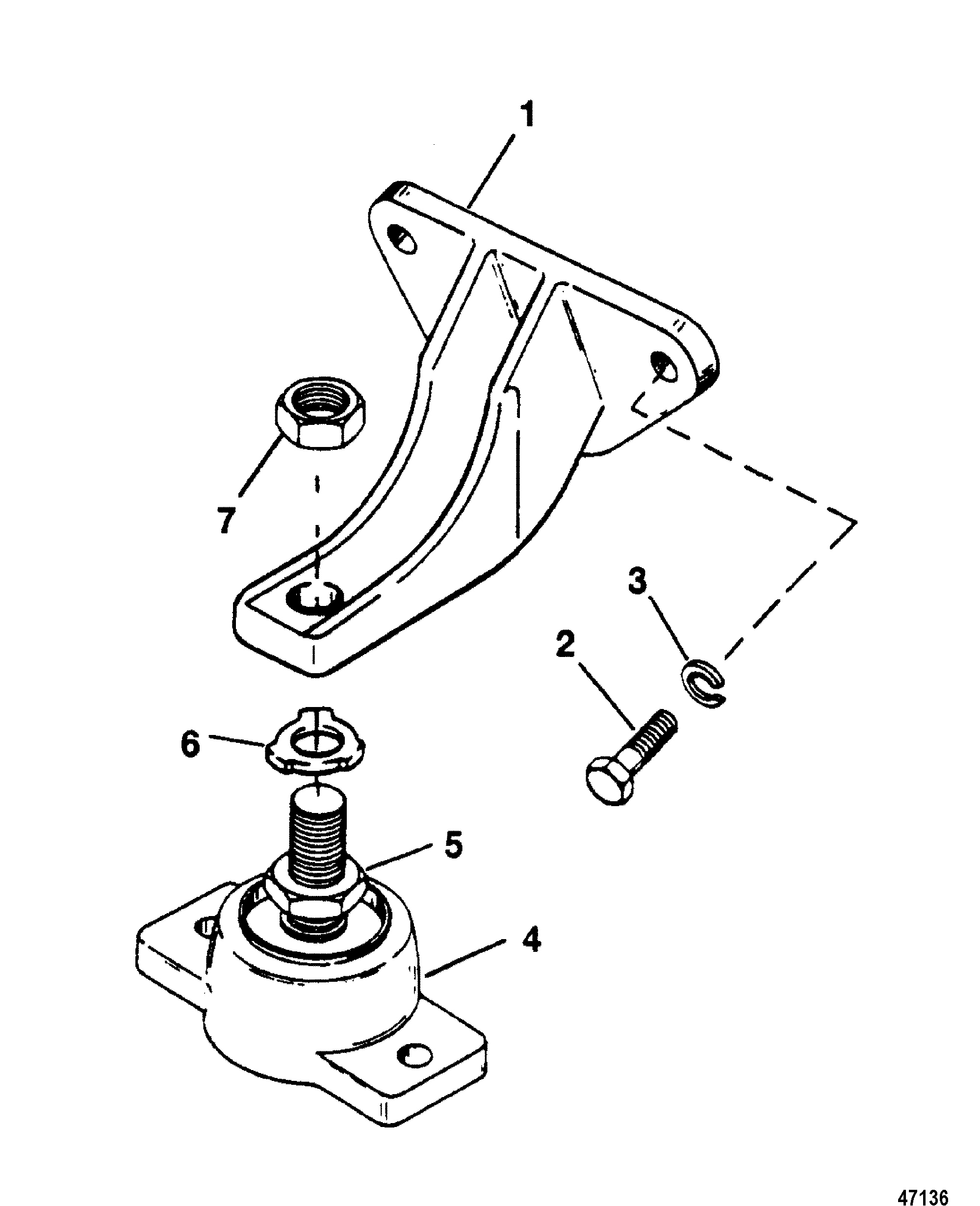

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator (Mando)
- Audio Warning System
- Crankshaft, Pistons And Conn. Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Box And Components
- Engine Mounting
- Exhaust Manifold And Exhaust Elbow
- Exhaust System
- Flywheel Housing
- Fuel Pump And Fuel Filter
- Intake Manifold And Intake Plenum
- Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Power Steering Components
- Sea Water Pump
- Senders And Harness Bracket
- Shift Bracket
- Starter Motor (PG260)
- Starter Motor And Alternator
- Thermostat Housing (Standard Cooling)
- Vapor Separator Tank
- Vapor Separator Tank And Fuel Rail
- Water Pump And Front Cover
- Wiring Harness (EFI)
- Wiring Harness (Engine)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 79550A1 | BRACKET (FRONT) | 2 | |||||||
| 2 | 10-68101 | SCREW, (.375-16 x 1.375) (1-3/8 IN.) | 6 | |||||||
| 3 | 13-35048 | 700-21495 or | 700-21493 (for cast iron manifold) | LOCKWASHER, (.375) | 6 | |||||
| 4 | 814263A1 | BASE ASSEMBLY | 2 | |||||||
| 5 | 11-816331 | NUT, (.750-16) | 2 | |||||||
| 6 | 14-12657 | TAB WASHER | 2 | |||||||
| 7 | 11-859126 | NUT | 2 | 11-49252 |
