200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Cowling

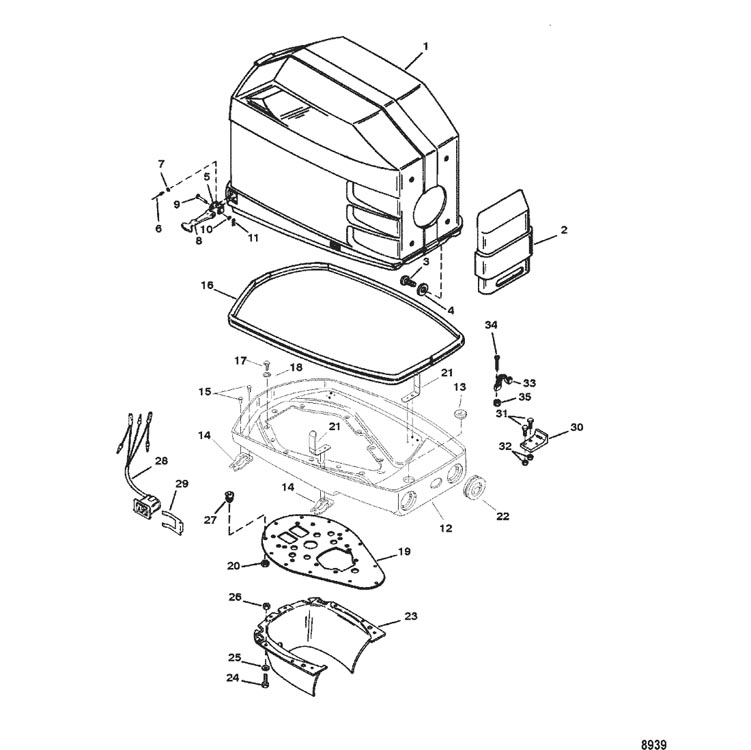

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 4006-817704T22         TOP COWL ASSEMBLY 1 817704A22
1 4006-817704T23



TOP COWL ASSEMBLY 1  817704A23  No Longer Available
2 817706A3



FRONT COVER 1
2 817706A4



FRONT COVER 1    No Longer Available
3 10-69570



SCREW, (#10-16 x .750) 4
4 12-22887



WASHER 4
5 71602



YOKE 4
5 716021



YOKE 4     No Longer Available
6 17-816771



RIVET 12
7 12-847883



WASHER, (.192 x .375 x .033) 12
8 817708



HOLD DOWN 4
9 17-58712



PIN, Clevis 4
10 12-847883



WASHER, (.192 x .375 x .033) 4
11 18-210711



COTTER PIN 4 21071
12 4007-848164T7



BOTTOM PAN 1 848164A7   No Longer Available
12 4007-848164T8



BOTTOM PAN 1 817709A13   No Longer Available
13 19-815784



CAP 2
14 13734



RETAINER 4
14 137341



RETAINER 4     No Longer Available
15 17-848172



RIVET (POP-OPEN) 16
16 817712003



SEAL, (6.79 Feet Bulk) 1 8177121
17 10-38601



SCREW, (.250-28 x 1.250) 11
18 12-29245



WASHER, (.281 x .500 x .060) Stainless Steel 11
19 822188T2



PLATE 1 8221882   No Longer Available
20 11-826709109



NUT, (.250-28) 11 35045
21 848165



BRACE 2
22 25-8177131



GROMMET 2     No Longer Available
22 25-8177133



GROMMET 2
23 4016-847894T1



SKIRT 1 847894A1
23 4016-847894A2



SKIRT 1     No Longer Available
24 10-69028



SCREW, (.250-28 x .750) Stainless Steel 8
25 12-35462



WASHER, (.2656 x .625 x .0625) Stainless Steel 16
26 11-826709109



NUT, (.250-28) 8 35045
27 25-12602002



GROMMET 1 126021
28 87-8M0042301



SWITCH ASSEMBLY 1 18286A40
29 8M0032848



RETAINER 1 8124431
30 847897



BRACKET, Fuel Connector 1     No Longer Available
31 10-28668
676-9-78127 700-22440
SCREW, (.250-20 x .875) Stainless Steel 2
32 11-814101



NUT, (.250-20) Stainless Steel 2
33 88621



RETAINER (Use where Applicable) 1     No Longer Available
34 10-690201



SCREW, (#10-32 x .875) 2 69020
35 11-826709106



NUT, (#10-32) 2 29488
