200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Cylinder Block and End Caps

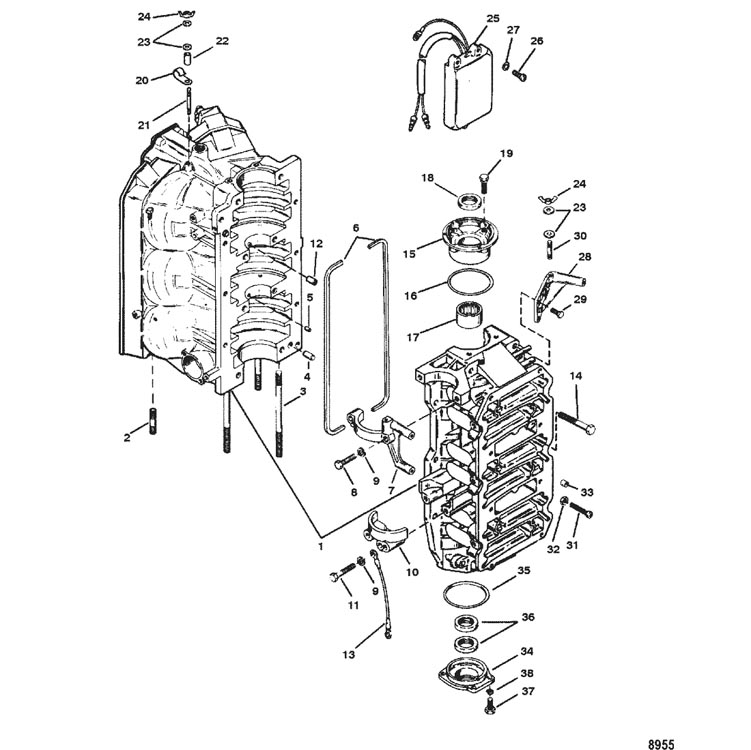

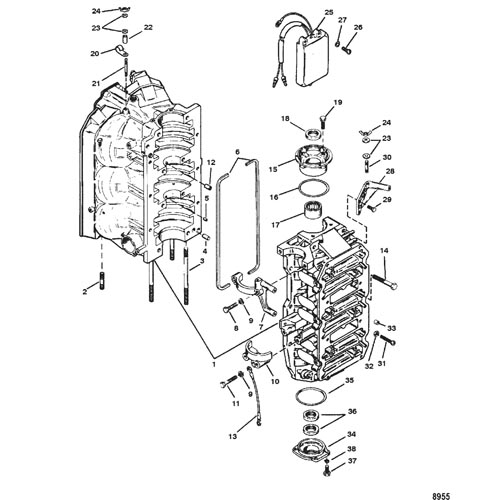

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 884-9763T23         CYLINDER BLOCK 1 9763A23 No Longer Available
1 884-9763T61



CYLINDER BLOCK 1  9763A61
2 16-8M0034443



STUD, (.375-16/.375-24 x 2.040) (1-3/4 IN.) 6 847530
3 16-670654



STUD 2  67065
3 16-8M0034454



STUD 2 78438
4 17-43044



PIN, Dowel - Without Hole (.375 x .625) 2
5 17-8M0036405



PIN (BEARING RACE) 2 67296
6 27-11338



GASKET 2
7 8M0088723



COVER (UPPER) 1 42249
8 10-828213



SCREW, (.312-18 x 1.500) Hex Flange 2
8 10-73657



SCREW, (.312-18 x 1.50) 2
9 13-26993



LOCKWASHER, (.312) 4
10 76867



COVER (LOWER) 1
11 10-828214



SCREW, (.312-18 x 2.00) Hex Flange 2
12 23-99448



BUSHING 1
13 84-88807A20



CABLE ASSEMBLY 1
14 10-66717



SCREW, (.375-16 x 3.250) 8
14 10-74824



SCREW, (.312-18 x 1.250) 6
15 1159-858521T1



END CAP ASSEMBLY, Upper 1 9642A1
16 25-54029



O-RING, (2.800 x .103) 1
17 31-16756A4



BEARING KIT 1
18 26-41953



SEAL 1
19 10-30225



SCREW AND LOCKWASHER, (.312-18 x 1.00) 4 69034
20 54-814634



CLAMP 1
21 16-15094



STUD, (.190-32 x 1.870) 1
22 23-67269



SPACER 1
23 12-49221



WASHER, (.187 x .500 x .062) Neoprene 3
24 11-816874



WING NUT, (#10-32) 3
25 87076A10



IDLE SPEED CONTROL 1
26 10-690201



SCREW, (#10-32 x .875) 3 69020
27 12-38833



WASHER 3
28 422482



BRACKET 1 42248
29 10-49668



SCREW, (.250-20 x .750) 2
30 16-8M0034435



STUD, (#10-32 x 1.00) 2 15093
31 10-64022



SCREW, (.250-20 x 2.125) 1
32 11-64015



NUT, (.250-20) 1
33 26852



CAP, Nylon 1
34 1156-7809T1



END CAP ASSEMBLY 1 7809A1
35 25-62700



O-RING, (3.237 x .103) 1
36 26-41953



SEAL 2
37 10-28636



SCREW, (.250-20 x .750) 4
38 13-26992



LOCKWASHER, (.250) Stainless Steel 4
- 27-823142A94



GASKET SET 1
- 809839T94



POWERHEAD ASSEMBLY 1 809839A94
- 808603T94



POWERHEAD ASSEMBLY 1 808603A94  No Longer Available
