200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Flywheel, Starter Motor and Ignition Coils

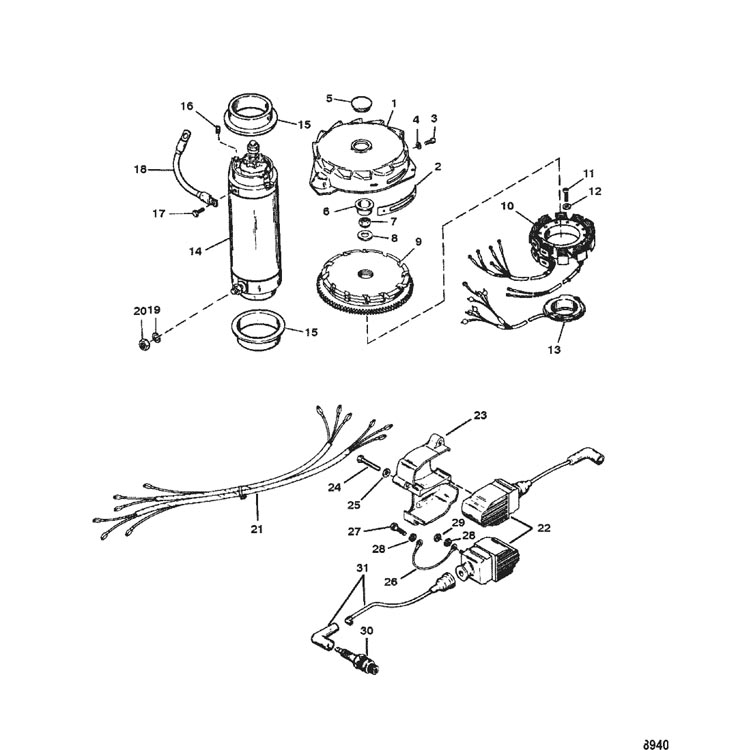

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System(0G366999 and Below)
- Fuel Management System(0G366999 and Below)
- Fuel Management System(0G367000 and Up)
- Fuel Management System(0G367000 and Up)
- Fuel Pump(Aluminum Body)
- Fuel Pump(Plastic Body With Loose Fittings)
- Fuel Pump(Plastic Body With Molded Fittings)
- Gear Housing(Drive) Standard/Counter Rotation-SportMaster
- Gear Housing(Drive)Torque Master 1.87:1/2:1
- Gear Housing(Driveshaft)(1.78:1)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate(0G205106 and Below)
- Trim Solenoid Plate(0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 18896A1 | COVER KIT | 1 | ||||||
| 2 | 79022 | MARKER | 1 | ||||||
| 3 | 10-37572 | SCREW, (.190-32 x .380) | 2 | ||||||
| 4 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 2 | ||||||
| 5 | 19-89219001 | PLUG (USE WHERE APPLICABLE) | 1 | 89219 | No Longer Available | ||||
| 6 | 19-45907 | PLUG, Yellow | 1 | ||||||
| 7 | 11-52901 | NUT, (.625-18) | 1 | ||||||
| 8 | 12-33001 | WASHER, (.641 x 1.250 x .190) | 1 | 68229 | |||||
| 9 | 271-859238T16 | FLYWHEEL | 1 | 817632A12 | |||||
| 10 | 398-9610A27 | STATOR | 1 | ||||||
| 11 | 10-90045 | SCREW, (#10-32 x 1.375) | 4 | ||||||
| 12 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 4 | ||||||
| 13 | 96455A9 | PLATE ASSEMBLY, Trigger | 1 | ||||||
| 14 | 50-893893 | STARTER MOTOR ASSEMBLY | 1 | 79472 | |||||
| 15 | 8M0034918 | COLLAR | 2 | 56703 | |||||
| 16 | 8M0043376 | STOP, Rubber | 2 | 68042 | |||||
| 17 | 10-69035 | SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel | 1 | ||||||
| 18 | 84-93388A1 | CABLE ASSEMBLY, (6.00 Inches) Black | 1 | ||||||
| 19 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 1 | ||||||
| 20 | 11-20890 | NUT, (.250-20) | 1 | ||||||
| 21 | 84-69739A7 | HARNESS ASSEMBLY | 1 | ||||||
| 22 | 339-832757A4 | COIL ASSEMBLY, Ignition | 6 | 7370A13 | |||||
| 22 | 339-832757A4 | COIL ASSEMBLY, Ignition | 6 | 7370A19 | |||||
| 22 | 339-832757A4 | COIL KIT | 6 | ||||||
| 23 | 79743 | COVER | 3 | ||||||
| 24 | 10-88447 | SCREW, (.190-32 x 1.62) | 12 | ||||||
| 25 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 12 | ||||||
| 26 | 84-88807A6 | CABLE ASSEMBLY, (3.50 Inches) Black (BLACK) | 6 | ||||||
| 27 | 10-68513 | SCREW, (#10-32 x .375) Stainless Steel | 6 | ||||||
| 28 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 18 | ||||||
| 29 | 11-45076 | NUT, (#10-32) Brass | 12 | ||||||
| 30 | 33-13686Q | SPARK PLUG | 6 | 136862 | |||||
| 31 | 84-815358A1 | CABLE SET, Ignition | 1 |
