200 EFI PRO MAX and SUPER MAG - Serial 0D935000 Thru 0G610079 - Trim Solenoid Plate(0G205106 and Below)

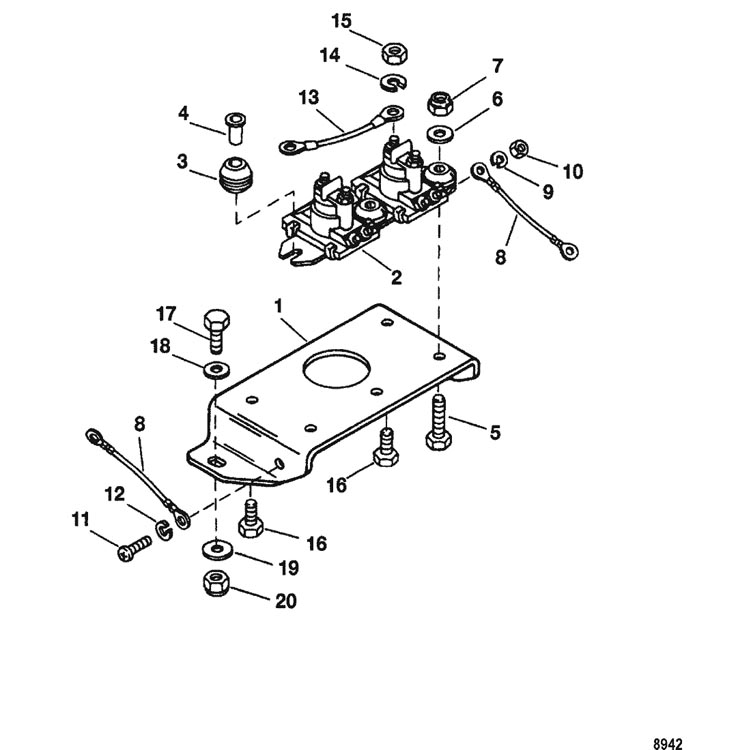

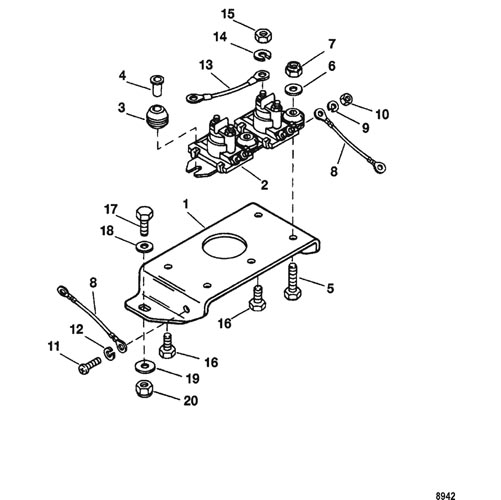

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Bleed System
- Cowling
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Detonation Controller/Temperature Sensor
- Driveshaft Housing and Exhaust Tube
- ECU Assembly
- Exhaust Divider and Exhaust Plate
- Flywheel, Starter Motor and Ignition Coils
- Fuel management System(0G366999 and Below)
- Fuel Management System(0G366999 and Below)
- Fuel Management System(0G367000 and Up)
- Fuel Management System(0G367000 and Up)
- Fuel Pump(Aluminum Body)
- Fuel Pump(Plastic Body With Loose Fittings)
- Fuel Pump(Plastic Body With Molded Fittings)
- Gear Housing(Drive) Standard/Counter Rotation-SportMaster
- Gear Housing(Drive)Torque Master 1.87:1/2:1
- Gear Housing(Driveshaft)(1.78:1)
- Gear Housing(Driveshaft)(CLE-1.87:1/2:1)
- Gear Housing, Propeller Shaft - 1.78:1 Gear Ratio
- Gear Housing, Propeller Shaft - CLE-1.87:1/2:1 Gear Ratio
- Gear Housing, Propeller Shaft-Counter Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Standard Rotation-Sportmaster
- Gear Housing, Propeller Shaft-Torque Master 1.87:1/2:1
- Instrumentation
- Key Switch
- Oil Injection Components
- Power Trim Components
- Power Trim Motor
- Reed Block and Cylinder Head
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Transom Brackets
- Trim Solenoid Plate(0G205106 and Below)
- Trim Solenoid Plate(0G205107 and Up)
- Wiring Harness and Starter Solenoid
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0053740 | PLATE | 1 | 847896 | |||||
| 2 | 89-818997T1 | SOLENOID ASSEMBLY | 2 | 818997A1 | |||||
| 3 | 25-818967 | GROMMET | 4 | ||||||
| 4 | 23-818968 | BUSHING | 4 | ||||||
| 5 | 10-455611 | SCREW, (.250-20 x 1.12) | 3 | 45561 | |||||
| 6 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel | 3 | ||||||
| 7 | 11-814101 | NUT, (.250-20) Stainless Steel | 3 | ||||||
| 8 | 84-88807A6 | CABLE ASSEMBLY, (3.50 Inches) Black | 2 | ||||||
| 9 | 13-26995 | LOCKWASHER, (#8) Stainless Steel | 4 | ||||||
| 10 | 11-26419 | NUT, (#8-32) Brass | 4 | ||||||
| 11 | 10-42813 | SCREW, (#10-32 X .380) (10-32 X .3/8 IN.) | 2 | ||||||
| 12 | 13-26996 | LOCKWASHER, (#10) Stainless Steel | 2 | ||||||
| 13 | 84-87379A14 | WIRE ASSEMBLY, (2.750 Inches) (RED) | 1 | No Longer Available | |||||
| 14 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 4 | ||||||
| 15 | 11-94330 | NUT, (.250-20) Brass (BRASS) | 2 | ||||||
| 16 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 2 | ||||||
| 17 | 10-69028 | SCREW, (.250-28 x .750) Stainless Steel | 2 | ||||||
| 18 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 2 | ||||||
| 19 | 12-35280 | WASHER, (.255 x .620 x .030) Stainless Steel | 2 | ||||||
| 20 | 11-826709109 | NUT, (.250-28) | 2 | 35045 |
